Mikrotik RB3011UiAS-RM Router

Product image 1
Product image 2
Product image 3

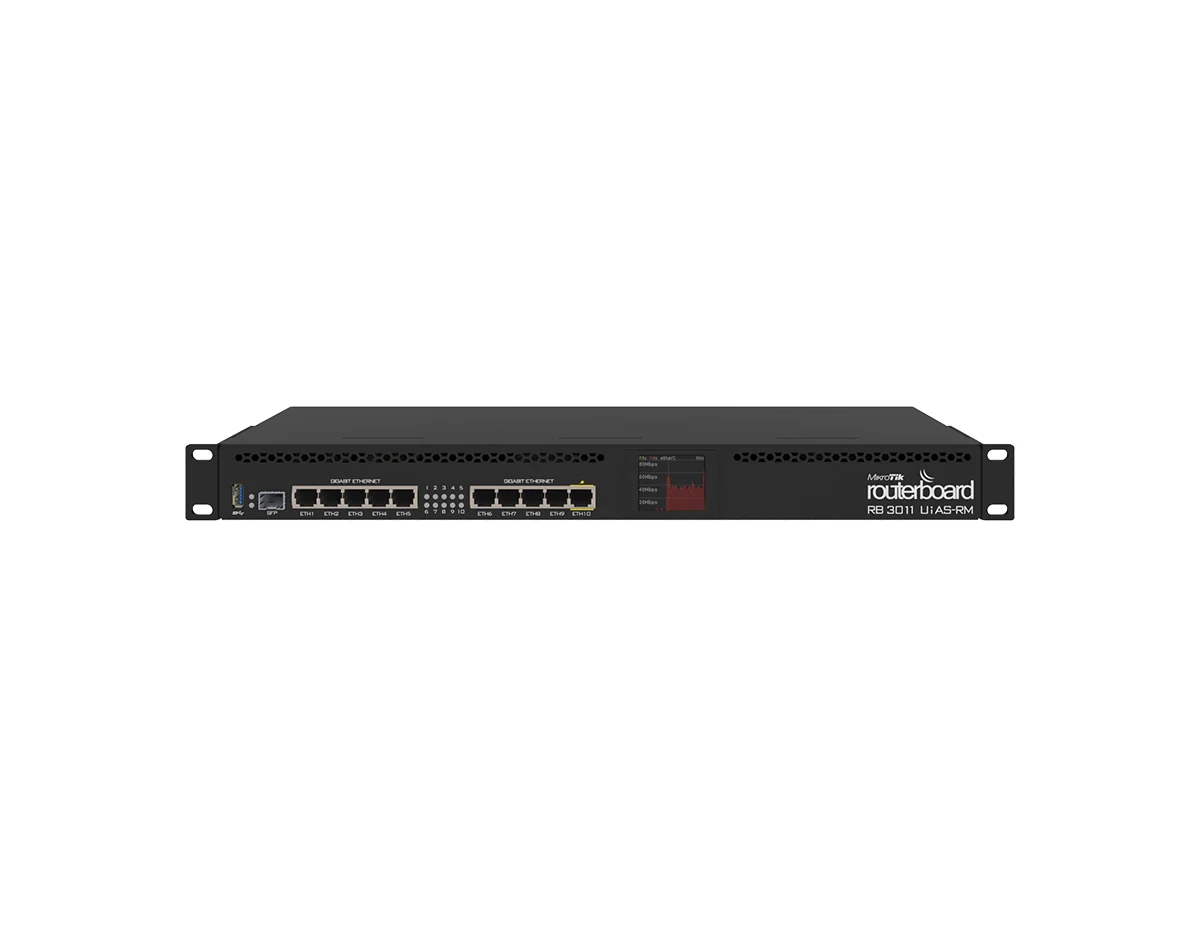

Mikrotik RB3011UiAS-RM Router

Mikrotik RB3011UiAS-RM Router

[shortdesc]
  • 1U rackmount, 10xGigabit Ethernet, SFP, USB 3.0, LCD, PoE out on port 10, 2x1.4GHz CPU, 1GB RAM, RouterOS L5
[/shortdesc]

[properties]

Properties MikroTik RB3011UIAS-RM
Description 1U rackmount, 10xGigabit Ethernet, SFP, USB 3.0, LCD, PoE out on port 10, 2x1.4GHz CPU, 1GB RAM, RouterOS L5
Product Family RB3011 Series
Product Type Ethernet Router
Ports
10/100 Ethernet ports 10
SFP 1
Serial console port 1 RJ45
Number of USB ports 1 USB 3.0 type A
Extras PCB temperature monitor
Voltage Monitor
Beeper
Dimensions 443 x 92 x 44 mm
Number of DC inputs 2 (DC jack, PoE-IN)
DC jack input Voltage 10-30 V
Max power consumption 30 W
Max power consumption without attachments 10 W
Cooling type Passive
PoE in Passive PoE
PoE in input Voltage 10-30 V
PoE-out ports Ether10
PoE out Passive PoE
Max out per port output (input 18-30 V) 600 mA
Max total out (A) 600 mA

[/properties][specifications]

Specifications RB3011UIAS-RM
Memory 1 GB
NAND Storage size 128 MB
CPU IPQ-8064 1.4 GHz
CPU core count 2
Switch chip model QCA8337
OS RouterOS level 5 license
MTBF Approximately 200.000 hours at 25C
Temperature -20°C to 70°C tested
Performance test results
Bridging
1518 byte
none (fast path) kpps: 325.0
Mbps: 3,946.8
25 bridge filter rules kpps: 325.0
Mbps: 3,946.8
512 byte
none (fast path) kpps: 939.8
Mbps: 3,849.4
25 bridge filter rules kpps: 384.2
Mbps: 1,573.7
64 byte
none (fast path) kpps: 1,530.2
Mbps: 783.5
25 bridge filter rules kpps: 348.6
Mbps: 178.5
Routing
1518 byte
none (fast path) kpps: 325.0
Mbps: 3,946.8
25 simple queues kpps: 325.0
Mbps: 3,946.8
25 ip filter rules kpps: 202.0
Mbps: 2,453.1
512 byte
none (fast path) kpps: 939.8
Mbps: 3,849.4
25 simple queues kpps: 419.6
Mbps: 1,718.7
25 ip filter rules kpps: 204.1
Mbps: 836.0
64 byte
none (fast path) kpps: 1,437.6
Mbps: 736.1
25 simple queues kpps: 419.7
Mbps: 214.9
25 ip filter rules kpps: 188.4
Mbps: 96.5
Certification & Approvals
Certification CE, EAC, ROHS
IP IP20

[/specifications][accesories]

Accessories 24V 1.2A power adapter
Rack ears
K-19 fastening set

[/accesories]

MikroTik RB3011UiAS-RM Router

The RB3011UiAS-RM is a high-performance device specifically designed to provide exceptional connectivity. It is equipped with an ARM architecture CPU known for its efficiency and adaptability. Housed in a 1U rackmount case, it occupies minimal rack space, making it suitable for space-efficient installations. Additionally, it features a touch-sensitive LCD panel for real-time monitoring and quick configuration adjustments. For users who prefer traditional command-line access, the device also includes a serial console port and PoE output on the last Ethernet port to enhance network flexibility.

Quick Specs:

  • 10x 10/100/1000 Ethernet Ports
  • 1 SFP port uplink
  • PoE-out ports: Ether10
  • PoE-out: Passive PoE

Please see the related tabs for the RB3011UiAS-RM datasheet and compatible accessories.
