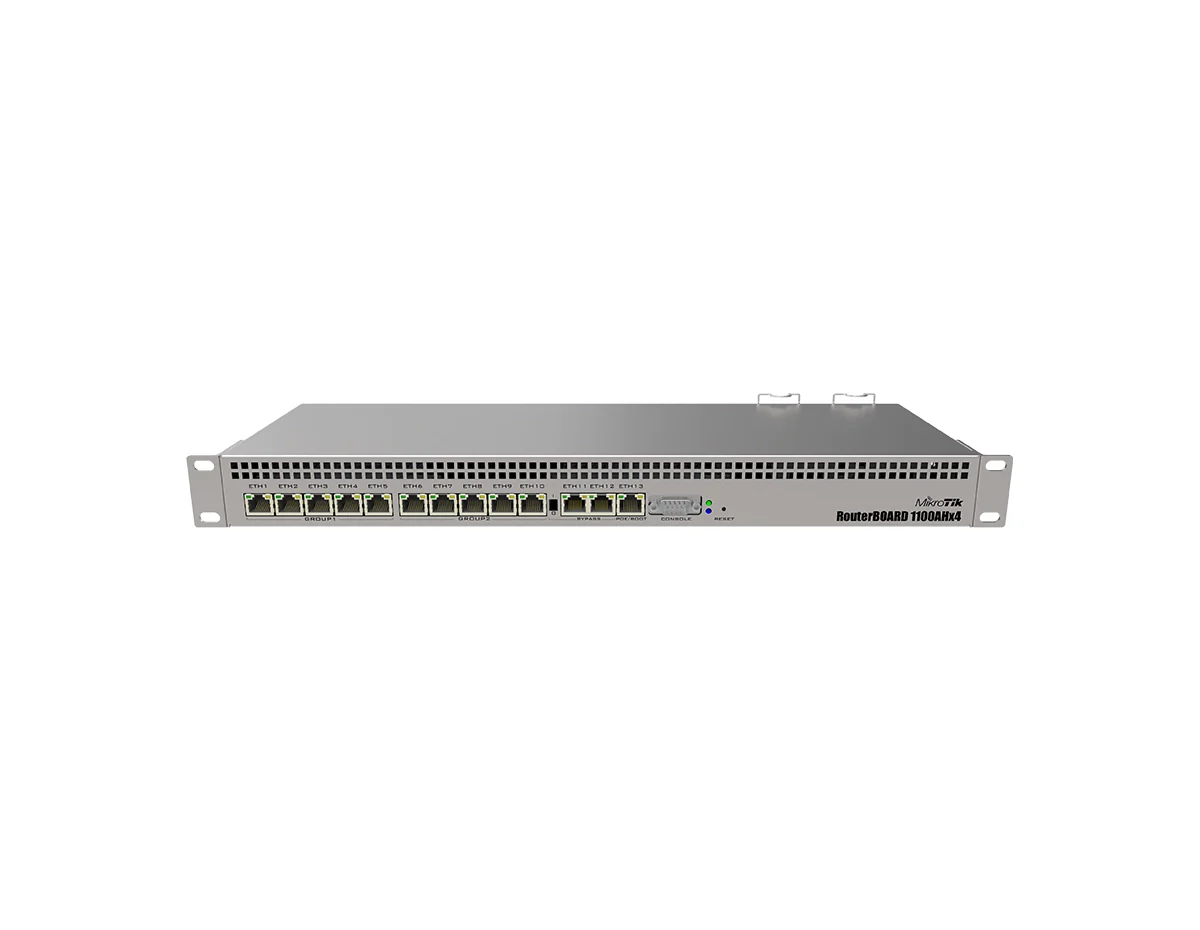

Mikrotik RB1100x4 Router (RB1100AHx4)
- Powerful 1U rackmount router with 13x Gigabit Ethernet ports
[properties]
| Properties | MikroTik RB1100AHX4 |
| Description | Powerful 1U rackmount router with 13x Gigabit Ethernet ports |
| Product Family | RB1100AHX4 Series |
| Product Type | Ethernet Router |
| Ports | |
| 10/100/1000 Ethernet ports | 13 |
| Serial console port | 1 RS232 |
| Number of USB ports | 1 |
| Memory Cards | 1 microSD |
| Extras | Current Monitor PCB temperature monitor Voltage Monitor Mode button Beeper |
| Dimensions | 443 x 148 x 44 mm |
| USB slot type | USB type A |
| Number of AC inputs | 2 |
| AC input range | 100-240 |
| Number of DC inputs | 2 (2-pin terminal, PoE-IN) |
| 2-pin terminal input Voltage | -48, 12-57 V |
| Max power consumption | 20 W |
| Cooling type | Passive |
| PoE in | 802.3af/at |
| PoE in input Voltage | 20-57 V |
[/properties][specifications]
| Specifications | RB1100AHX4 |
| Memory | 1 GB |
| NAND Storage size | 128 MB |
| CPU | AL21400 1.4 GHz |
| CPU core count | 4 |
| Switch chip model | RTL8367 |
| OS | RouterOS level 6 license |
| MTBF | Approximately 200.000 hours at 25C |
| Temperature | -40°C to 70°C tested |
| IPsec hardware acceleration | Yes |
| Certification & Approvals | |
| Certification | CE, EAC, ROHS |
| IP | IP20 |
[/specifications][accesories]
| Accessories | 2x IEC cord Rack ears K-10 R2 screw kit |
[/accesories]
MikroTik RB1100AHx4 Router
The RB1100AHx4 is a robust router specifically engineered to handle complex networking operations. Similar to the Dude Edition, it is equipped with the Annapurna Alpine AL21400 CPU featuring four Cortex A15 cores, each running at 1.4 GHz. The Cortex A15 processor core is notable for its exceptional performance and energy efficiency. The device also supports IPsec hardware acceleration, which improves IPsec VPN performance by utilizing specialized hardware for encryption and decryption. This ensures that IP communication is secure and efficient.
Quick Specs:
- 13x 10/100/1000 Ethernet Ports
- 1GB RAM
- AL21400, 4 cores, 1.4 GHz CPU
- 2x M.2 Slots
Please see the related tabs for the RB1100AHx4 datasheet and compatible accessories.
