Juniper PTX5000BASE2 Chassis
[shortdesc]
[properties]
- PTX5000 Base System (Chassis+Enhanced Midplane+Craft Panel)
| Properties | Juniper PTX5000BASE2 |
| Description | Base chassis (Sheet metal, 2 x RE, 2 x CB, 2 x CCG, 2 x horizontal Fan Tray + 1 x Vertical Fan Tray, Craft panel, 2 x PDU2s, 6 x PSM2s, 9 x SIB2s) |
| Product Family | PTX5000 Series |
| Product Type | Base Unit |
| Interfaces | |
| 10GbE | 1536 |
| 40GbE | 384 |
| 100GbE | 240 |
| Line card slots | 8 |
| Power requirements | 1.66A@ –48 V (90W) |
| Physical dimensions (W x H x D) | 17.5 x 62.5 x 33.1 in (44.5 x 158.8 x 84.1 cm) |
| Maximum weight | 1,294 lbs (587.0 kg) |
| Mounting | Front or center Rack mount |
| Rack unit | 36U |
| Power system rating | 92.5A @ -48 VDC per input |
| Typical power consumption | 10.5 kW, fully loaded |
| Maximum throughput | 3 Tbps per line-card slot, 24 Tbps of total |
| Operating temperature | 32° to 104° F (0° to 40° C) |

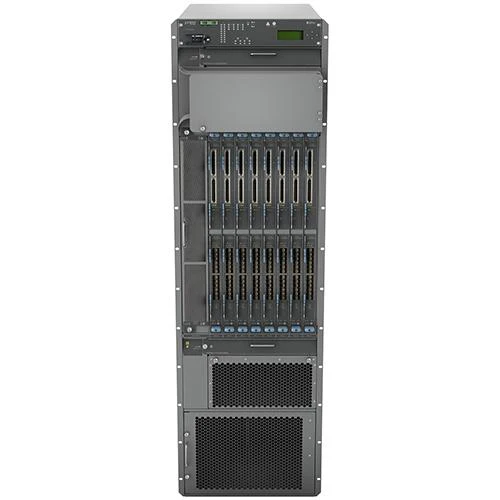

The PTX5000 Packet Transport Router provides high-density 10GbE, 40GbE, and 100GbE interfaces for large networks and network applications, addressing the needs of Internet service providers and high-volume content providers. Occupying 36 rack units, the PTX5000 can be configured with up to eight FPCs, each capable of connecting two PICs that support a variety of network media types. The PTX Series architecture cleanly separates control operations from packet-forwarding operations, eliminating processing and traffic bottlenecks while enabling the router to deliver extreme performance for both IP and MPLS.
