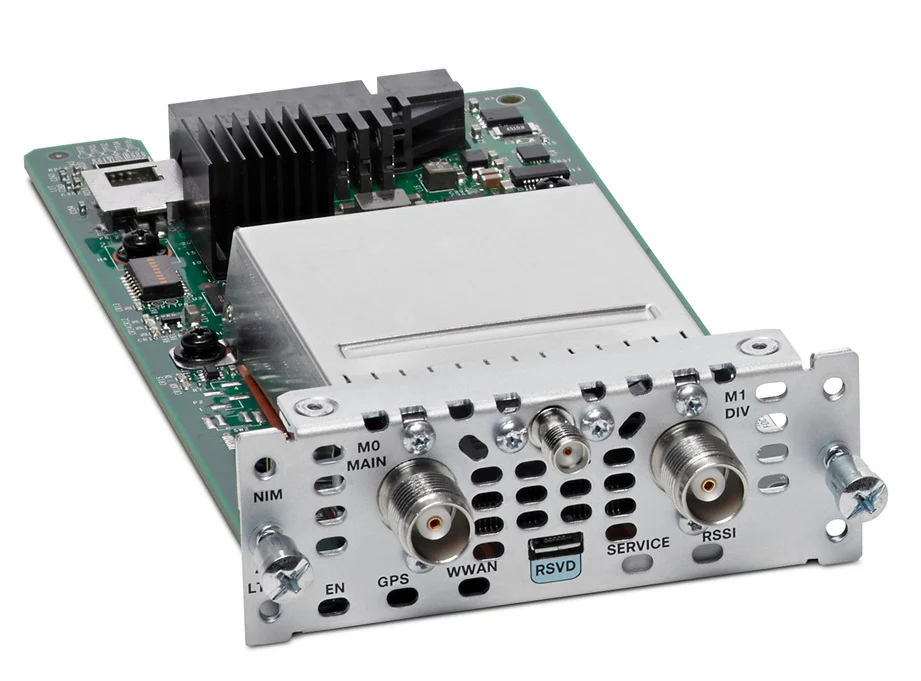

Cisco NIM-4G-LTE-VZ Expansion Module
- Wireless cellular modem
- 4G LTE
- 100 Mbps
- Verizon
- For Cisco 4451-X; ISR 4321
- 4331
- 4351
[properties]
| Properties | Cisco NIM-4G-LTE-VZ |
| Description | 4G LTE WWAN NIM for Verizon Networks |
| Product Family | Cisco 4G LTE 2.0 NIM |
| Product Type | Network Interface Module |
| Supported Devices | Cisco 4200, 4300, 4400 Series ISR |
| Network Technology | 4G LTE (Bands 13, 4 AWS, 25) |
| Backward Compatibility | EVDO Rev A / CDMA 1x BC0, BC1, BC10 |
| Connectivity Technology | Wireless WAN (WWAN) |
| Form Factor | Single-wide NIM |
[/properties] [specifications]
| Specifications | NIM-4G-LTE-VZ |
| LTE Bands | Band 13 (700 MHz), Band 4 AWS (1700/2100 MHz), Band 25 (1900 MHz) |
| Theoretical Speeds | Download: 100 Mbps, Upload: 50 Mbps (CAT3) |
| External Interfaces | 2x TNC (Main, MIMO), SMA GPS, Micro-USB for diagnostics |
| SIM Card | Mini-SIM (4G LTE SIM) |
| Dimensions (H x W x D) | 1.25 x 3.5 x 7.3 in. (3.18 x 8.89 x 18.54 cm) |
| Weight | 9.5 oz (270 g) |
| Power | 4W (without traffic) |
| LED Indicators | Enable, WWAN, RSSI, Service, GPS |
| Supported Features | Failover, GPS, SMS, DMNR, MIMO, Multi-VRF, QoS, Unified Comms over LTE |
| Software Requirements | Cisco IOS XE 3.16 or later, Modem firmware 5.5.58.0 or later |
| Compliance | UL 60950-1, EN 60950-1, IEC 60950-1, FCC Part 15, EN55024, EN300-386 |
[/specifications] [accesories]
| Included Accessories | |
| 4G-LTE-ANTM-D | Dual Multiband Swivel Mount Dipole Antennas (included in the box) |
| 4G-AE010-R | Dual Antenna Extension Base with 10-ft Cable (included in the box) |
| Optional Accessories | |
| ANT-4G-OMNI-OUT-N | Multiband Outdoor Omnidirectional Antenna |
| ANT-4G-SR-OUT-TNC | Low-profile Outdoor Saucer Antenna |
| ANT-4G-PNL-OUT-N | Outdoor Panel 4G Antenna |
| CGR-LA-NF-NF | Lightning Arrestor Kit (Female to Female) |
| 4G-CAB-ULL-20 | 20-ft Ultra Low Loss Cable with TNC |
| GPS-ACT-ANTM-SMA | Standalone GPS Antenna with 17-ft Extension |
[/accesories]
Cisco NIM-4G-LTE-VZ Expansion Module
The Cisco Fourth-Generation Network Interface Modules provide improved wireless WAN primary and backup solutions. They ensure persistent, reliable LTE connectivity with fallback and transparent handoff to earlier technologies. They enable high-performance, secure, reliable, and transparent multimedia applications anywhere and anytime and allow customers to deploy and manage the same device for multiple applications, simplifying deployment and management. For businesses requiring rapid setup or temporary connectivity, they offer the capability to deploy a site quickly. These modules provide resilient WAN access, which is a crucial requirement for branch offices connecting to a corporate site or the Internet.
