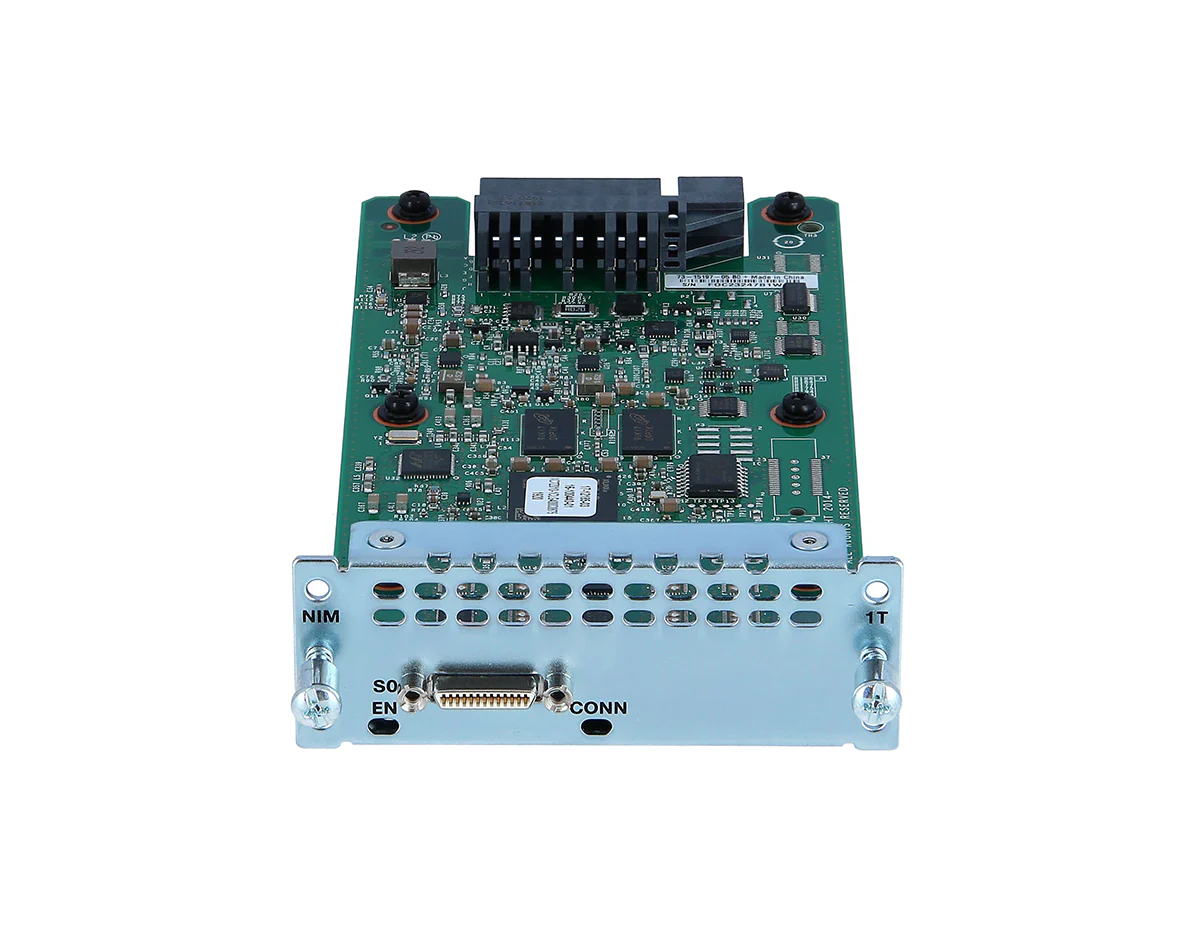

Cisco NIM-1T Network Interface Card
- Serial Adapter
- RS-232/449/530/V.35/X.21 x 1
- For Cisco 4451-X
[properties]
| Properties | Cisco NIM-1T Network Interface Module |
| Description | NIM-1T is a Cisco 1-Port Serial WAN Network Interface Card, offering cost-effective virtualized WAN connections in both point-to-point and point-to-multipoint designs. |
| Product Family | Cisco 4400 Series Integrated Services Router Network Interface Modules (ISRNIMs) |
| Product Type | Network Interface Module |
| Connectors | Cisco Smart Serial connectors |
[/properties] [specifications]
| Specifications | Cisco NIM-1T Network Interface Module |
| NIM Signaling and Telecom Specifications | |
| Synchronous support | Yes |
| Synchronous maximum speed (per port) |
8 Mbps |
| Serial protocols | EIA-232, EIA-449, EIA-530, EIA530A, V.35, and X.21 |
| Telecomm post, telephone, and telegraph (PTT) |
● TBR1 and 2 ● JATE digital |
| Homologation Specifications for NIM-1T | |
| Safety | ● UL 60950-1 (United States) ● CAN/CSA 22.2, 60950-1 (Canada) ● AS/NZS 60950-1 (Australia/New Zealand) ● EN60950-1 (Europe) ● IEC 60950-1 (International) |
| Immunity | ● EN300386 ● CISPR24 ● EN55024 ● EN50082-1 ● 61000-4-2/3/4/5/6/8/11 |
| Emissions | ● FCC Part 15 Class A ● ICES-003 Class A ● EN55022 Class A ● CISPR22 Class A ● AS/NZSCISPR22 Class A ● VCCI Class A ● EN 300386 ● EN61000-3-2/3 ● CNS13438 |
| Physical specifications | ● Singlewide NI, no slot restrictions ● Dimensions (H x W x D) 1.25 x 3.50 x 7.24 in. (3.18 x 8.89 x 18.39 cm) |
| Environmental specifications | ● Operating temperature: 32 to 104°F (0 to 40°C) ● Storage temperature: -4 to 149°F (-20 to 65°C) ● Relative humidity: 10 to 90%, non-condensing |
[/specifications] [accesories] [/accesories]
CISCO NIM-1T Network Interface Module for Superior Throughput
CISCO NIM-1T Interface Module provides Cisco Software-Defined WAN software features and converged branch infrastructure. It's designed with superior throughput capabilities to form building blocks of next-generation branch-office WAN solutions.
Key Benefits of CISCO NIM-1T Network Interface Module
CISCO NIM-1T Network Interface Module offers up to three integrated network interface module slots and allows for flexible configurations. Get up to two 2Gbps connections from every NIM slot. Special NIMs add support to Solid State Drives and Hard Disk Drives. Each integrated service slot connects to the system architecture through an up to 2Gbps link.
