[properties]

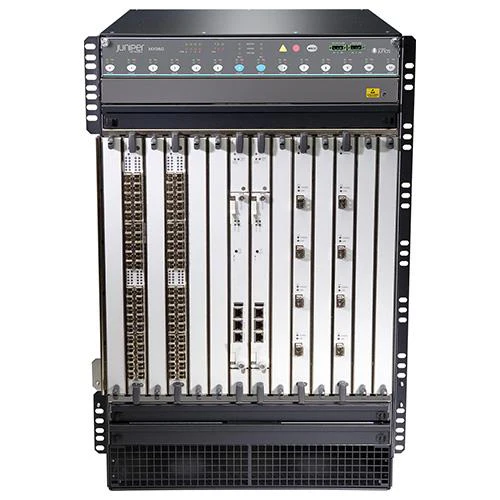

Properties	MX960-PREMIUM3-DC-ECM
Description	14 slot MX960 premium 3 chassis with enhanced midplane, redundant Routing Engine, SCBEs, DC power, and extended cable manager
Product Family	Juniper MX Routers
Product Type	Router
Slots	11 MPCs
Per slot capacity	1.5 Tbps
Maximum system throughput1	12 Tbps
PDH	Yes
Sonet/SDH	Yes
Maximum 1GbE	440
Maximum 10GbE	528
Maximum 40GbE	132
Maximum 100GbE	120
Maximum 400GbE	24
10GbE DWDM	88
100GbE DWDM	22
Rack units	16
Systems per rack	3
Redundancy  Components	Power supplies, REs, fans
Airflow	Front to back
Mounting	Front or center
Dimensions	17.37 x 27.75 x 23 in (44.11 x 70.49 x 58.42 cm)
Weight fully loaded	334 lb/151.6 kg
Weight unloaded	150 lbs/68.1 kg

[/properties] [specifications]

System capacity	12 Tbps
Slot orientation	Vertical
Default memory	2x16 MB NOR flash storage; 64 GB of DDR4 RAM; 2x50 GB SSD
Number of cores	6 cores
Security	Firewall filters/ACLs DDoS—control plane DDoS—FlowSpec Stateless filters L2-L4 Stateful services
Inline Services	GRE reassembly 1:1 NAT Flow monitoring Video monitoring Lawful intercept Mirroring Corero SmartWall Threat Defense Director SecIntel Threat Intelligence
Service Card Supported Services6	Deep packet inspection CGNAT Flow monitoring Server traffic load balancing7 IPsec Stateful firewall HTTP header manipulation Web filtering DNS sinkhole Intrusion detection system
Resiliency	Redundant RE Unified ISSU Nonstop active routing (NSR) Fast restoration Operation, Administration, and Maintenance (OAM)
System Virtualization	Enhanced SLA and queuing Junos Fusion Edge (AD) Logical systems Virtual router/switch Path Computation Element Protocol (PCEP) OpenConfig YANG data modeling Juniper Extension Toolkit
Operating temperature	32° to 115° F (0° to 46° C) at sea level
Certifications	GR-1089-Core EMC and Electrical Safety - Common Bonding Network (CBN) - National Electrical Code (NEC) - GR-63-Core

[/specifications] [accesories] [/accesories] The SDN-enabled MX960 Universal Routing Platform has been proven in the world's largest service provider, cable, mobile, and data center networks. It offers up to 12 Tbps of system capacity in one-third of a standard telco rack, with support for high-density 10GbE, 40GbE, 100GbE, and 400GbE interfaces, as well as legacy SONET/SDH, ATM, and PDH connectivity.
