[properties]

Properties	MX480BASE3-DC
Description	8 slot MX480 base bundle, DC power
Product Family	Juniper MX Routers
Product Type	Router
Slots	6 MPCs
Per slot capacity	1.5 Tbps
Maximum system throughput1	7.5 Tbps
PDH	Yes
Sonet/SDH	Yes
Maximum 1GbE	240
Maximum 10GbE	300
Maximum 40GbE	75
Maximum 100GbE	75
Maximum 400GbE	15
10GbE DWDM	48
100GbE DWDM	40
Rack units	8
Systems per rack	6
Redundancy  Components	Power supplies, REs, fans
Air flow	Side to side
Mounting	Front or center
Dimensions	17.45 x 14 x 24.5 in (44.3 x 35.6 x 62.2 cm)
Weight fully loaded	180 lbs/81.6 kg
Weight unloaded	65.5 lbs/29.7 kg

[/properties] [specifications]

System capacity	7.5 Tbps
Slot orientation	Horizontal
Default memory	2x16 MB NOR flash storage; 64 GB of DDR4 RAM; 2x50 GB SSD
Number of cores	6 cores
Security	Firewall filters/ACLs DDoS—control plane DDoS—FlowSpec Stateless filters L2-L4 Stateful services
Inline Services	GRE reassembly 1:1 NAT Flow monitoring Video monitoring Lawful intercept Mirroring Corero SmartWall Threat Defense Director SecIntel Threat Intelligence
Service Card Supported Services6	Deep packet inspection CGNAT Flow monitoring Server traffic load balancing7 IPsec Stateful firewall HTTP header manipulation Web filtering DNS sinkhole Intrusion detection system
Resiliency	Redundant RE Unified ISSU Nonstop active routing (NSR) Fast restoration Operation, Administration, and Maintenance (OAM)
System Virtualization	Enhanced SLA and queuing Junos Fusion Edge (AD) Logical systems Virtual router/switch Path Computation Element Protocol (PCEP) OpenConfig YANG data modeling Juniper Extension Toolkit
Operating temperature	32° to 115° F (0° to 46° C) at sea level
Certifications	GR-1089-Core EMC and Electrical Safety - Common Bonding Network (CBN) - National Electrical Code (NEC) - GR-63-Core -Physical Protection

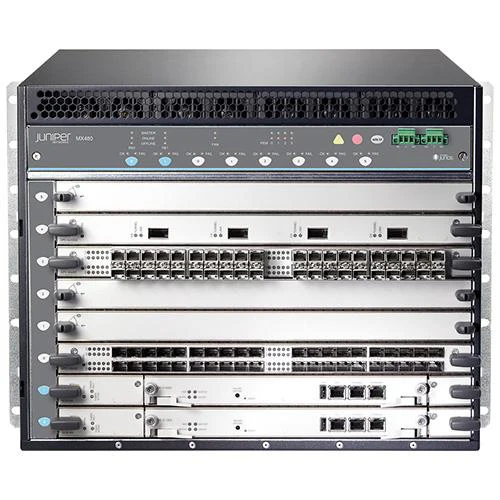

 [/specifications] [accesories] [/accesories] The SDN-enabled MX480 Universal Routing Platform delivers high performance, reliability, and scalability for service provider and cloud applications, enabling the delivery of advanced business and residential applications and services. At just eight rack units (8 U), the MX480 offers up to 9 Tbps of system capacity in support of high-density 10GbE, 40GbE, 100GbE, and 400GbE interfaces, as well as SONET/SDH, ATM, and PDH connectivity.
