Properties	MX2020-PREMIUM-AC
Description	20 slot MX2020 chassis, premium bundle with redundant Routing Engine, SFBs, fan trays, AC power
Product Family	MX2000 Series
Product Type	Router
DPCs and/or MPCs per chassis	20 (MPC only)
Maximum Line-Rate Port Density
with MPC11E 100GbE	800
with MPC11E 400GbE	160
with MPC9E 10GbE	1920
with MPC9E 40GbE	480
with MPC9E 100GbE	320
Physical dimensions (W x D x H)	78.75 x 36.2 x 17.5 in (200 x 91.95 x 44.45 cm)
Approximate maximum weight	1,500 lbs (680.39 kg)
Rack units	45
Number of fan trays	4
System mounting	Four-post rack mounting
Power options	AC/DC: -40 to -72 V DC 100-240 V AC
Air flow	Front to back

[/properties] [specifications]

Specifications	MX2020-BASE-AC
Slots	20
Per slot capacity	4 Tbps
System throughput	80 Tbps
Power-to-throughput efficiency ratio (max)	0.25W/GbE
Operating temperature	32°F (0°C) to 104°F (40°C)
Humidity	5% to 90% noncondensing humidity

[/specifications] [accesories] [/accesories]

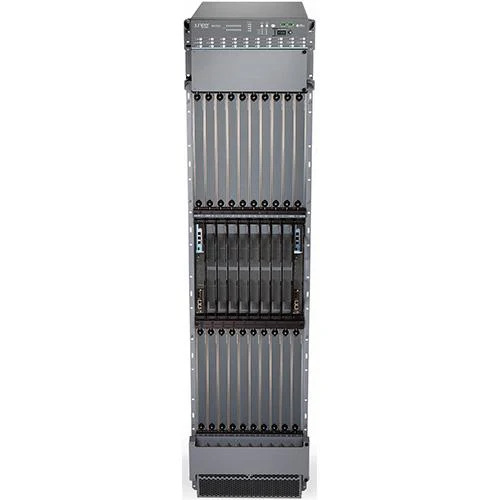

Juniper MX2020-PREMIUM-AC Chassis

The Juniper MX2020-PREMIUM-AC is a member of the MX2000 Universal Routing family. The MX2020 Universal Routing Platform is a router designed to optimize Ethernet functionality, offering both switching and carrier-class Ethernet routing capabilities. This router is suitable for various applications within service provider core, converged core edge, and edge environments, facilitating a diverse range of business and residential services. These services include high-speed transport and VPN services, next-generation broadband multiplay services, and high-volume Internet data center internetworking.

Quick Specs:

• 20 slots, per slot capacity 4 Tbps
• System Throughput: 80 Tbps
• Rack Units: 45
• 4 Fan Trays

Please see the related tabs for the MX2020-PREMIUM-AC datasheet and compatible accessories.
