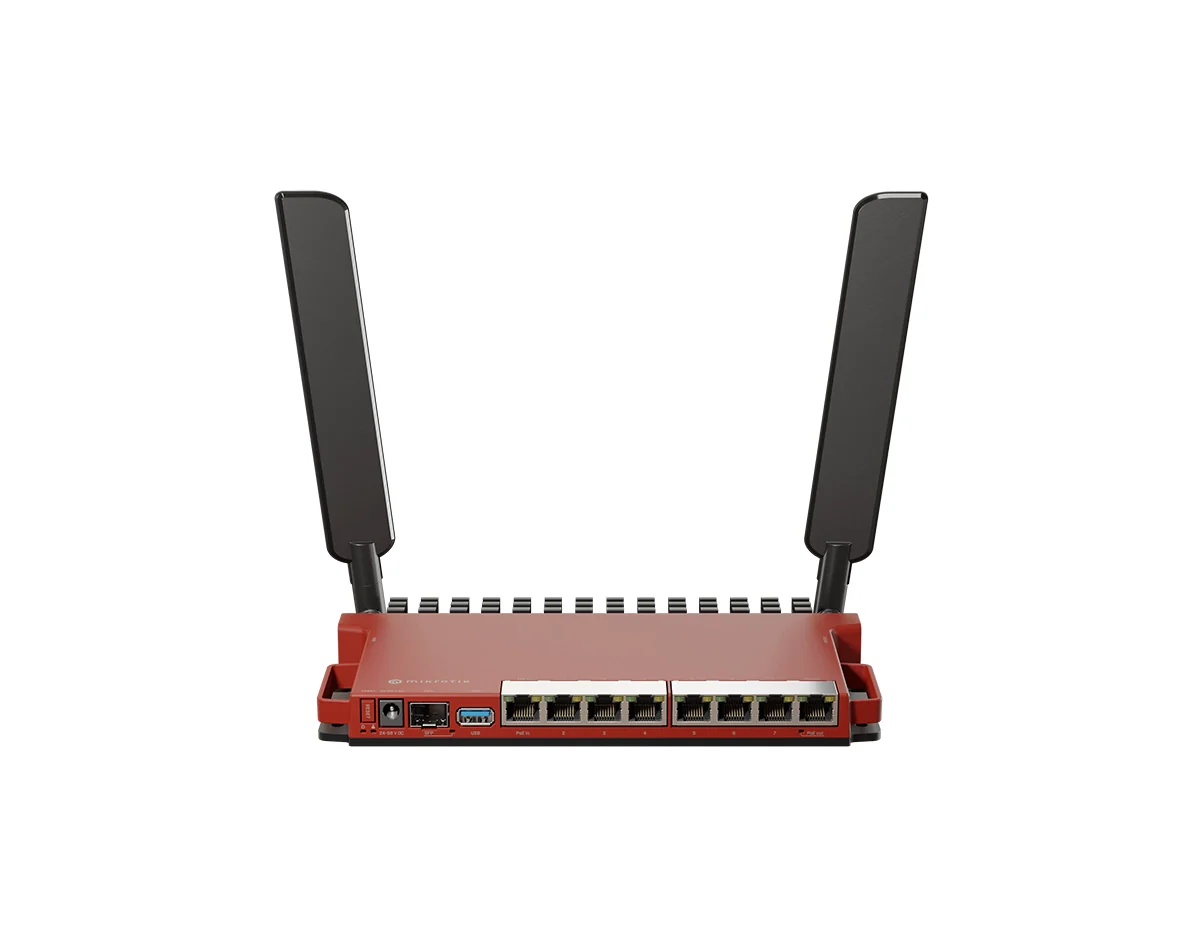

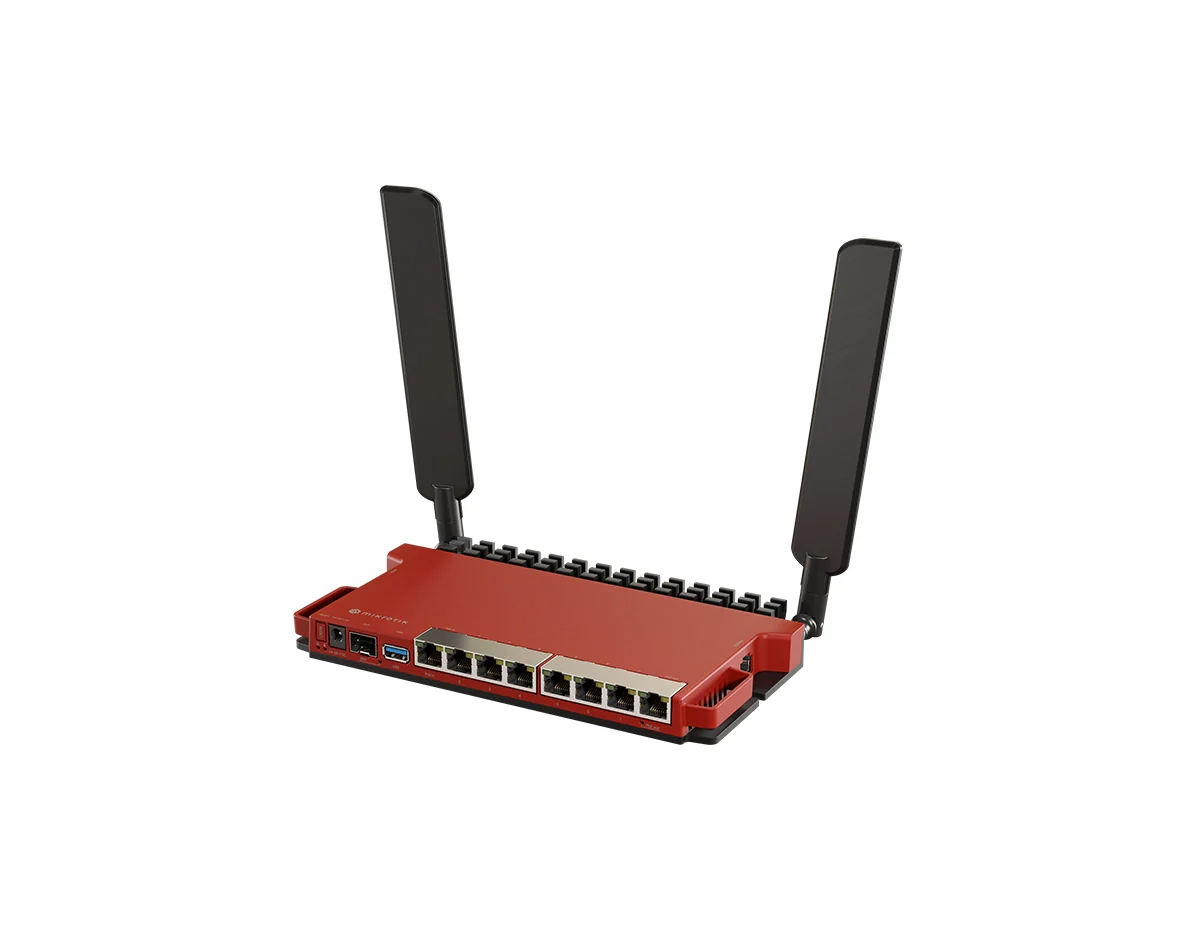

Properties	MikroTik L009UiGS-2HaxD-IN Wireless Router
Description	The MikroTik L009UiGS-2HaxD-IN is a dual-band wireless router with Gigabit Ethernet ports and USB connectivity. Ideal for home and small office use, it offers fast internet speeds, advanced security features, and customizable configuration options through RouterOS software.
Product Family	MikroTik Wireless Router
Product Type	Wireless Router
Key Features	• Dual-band wireless (2.4 GHz and 5 GHz) • Multiple Gigabit Ethernet ports • USB port for additional connectivity • Ideal for home and small office use • Advanced security features • Customizable configuration with RouterOS software

[/properties] [specifications]

Specifications	MikroTik L009UiGS-2HaxD-IN Wireless Router
Product code	L009UiGS-2HaxD-IN
Architecture	ARM
CPU	IPQ-5018
CPU core count	2
CPU nominal frequency	800 MHz
Switch chip model	88E6190
RouterOS license	5
Operating System	RouterOS v7
Size of RAM	512 MB
Storage size	128 MB
Storage type	NAND
MTBF	Approximately 200'000 hours at 25C
Tested ambient temperature	-40°C to 70°C
Wireless capabilities
Wireless 2.4 GHz Max data rate	574 Mbit/s
Wireless 2.4 GHz number of chains	2
Wireless 2.4 GHz standards	802.11b/g/n/ax
Antenna gain dBi for 2.4 GHz	4
Wireless 2.4 GHz chip model	IPQ-5018
Wireless 2.4 GHz generation	Wi-Fi 6
WiFi speed	AX600
Ethernet
10/100/1000 Ethernet ports	8
Number of 1G Ethernet ports with PoE-out	1
Fiber
SFP ports	1 (2.5G supported)
Peripherals
Serial console port	RJ45
Number of USB ports	1
USB Power Reset	Yes
USB slot type	USB 3.0 type A
Max USB current (A)	(1.5)
Powering
Number of DC inputs	2 (DC jack, PoE-IN)
DC jack input Voltage	24-56 V
Max power consumption	47 W
Max power consumption without attachments	14 W
Cooling type	Passive
PoE in	802.3af/at
PoE in input Voltage	24-56 V
PoE-out
PoE-out ports	Ether8
PoE out	Passive PoE
Max out per port output (input 18-30 V)	1:00 AM
Max out per port output (input 30-57 V)	450 mA
Max total out (A)	1.0 A
Certification & Approvals
Certification	CE, FCC, IC, EAC, ROHS
IP	20
Other
Mode button	Yes
Wireless specifications (2.4 GHz)
1MBit/s	Transmit (dBm): 27 Receive Sensitivity: -100
11MBit/s	Transmit (dBm): 27 Receive Sensitivity: -94
6MBit/s	Transmit (dBm): 30 Receive Sensitivity: -96
54MBit/s	Transmit (dBm): 28 Receive Sensitivity: -80
MCS0	Transmit (dBm): 30 Receive Sensitivity: -96
MCS7	Transmit (dBm): 27 Receive Sensitivity: -75
MCS9	Transmit (dBm): 25 Receive Sensitivity: -70
MCS11	Transmit (dBm): 23 Receive Sensitivity: -67

[/specifications] [accesories] [/accesories]

The MikroTik L009UiGS-2HaxD-IN represents a notable progression in Wi-Fi technology, featuring a robust processor and compatibility with Wi-Fi 6. The router's chassis functions as a substantial heat sink, aiding in maintaining optimal device temperature and mitigating the likelihood of overheating. Efficient heat dispersion is crucial for ensuring sustained reliability and operational efficiency. Additionally, the router's high-capacity CPU provides IPsec hardware encryption, a critical feature for contemporary enterprises dependent on VPNs for secure remote data connectivity.

Quick Specs:

• 8x 10/100/1000 Ethernet Ports
• 1x SFP ports (2.5G supported)
• PoE out: Passive PoE
• 512MB RAM

Please see the related tabs for the L009UiGS-2HaxD-IN datasheet and compatible accessories.
