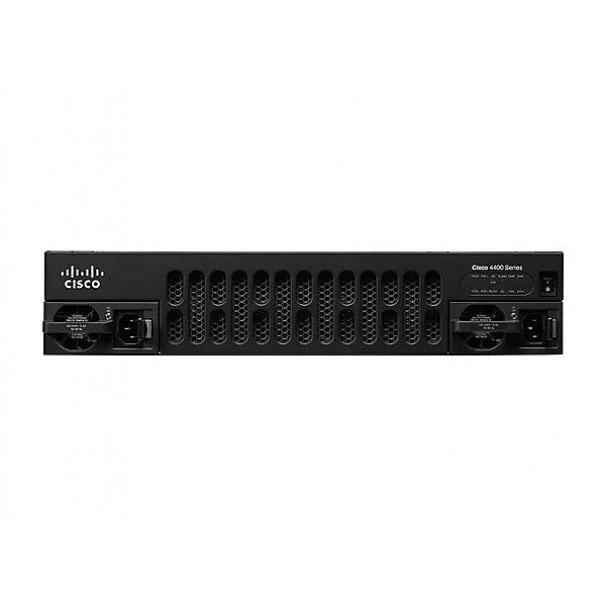

Cisco ISR4451-X-AX/K9 Router
- 1Gbps-2Gbps system throughtput
- 4 WAN/LAN ports
- 4 SFP ports
- Multi-Core CPU
- Dual-power
- Security
- Voice
- WAAS
- Intelligrnt WAN
- OnePK
- AVC
- Separate Control Data and Services CPUs
[properties]
| Properties | ISR4451-X-AX/K9 |
| Description | Cisco ISR 4451 AppX Advanced Services Router (2GE, 2NIM, 1SM, 8G Flash, 4G DRAM, MPLS, OTV) |
| Product Family | ISR 4000 Series |
| Product Type | Router |
| Total onboard WAN or LAN 10/100/1000 ports | 4 |
| RJ-45-based ports | 4 |
| SFP-based ports | 4 |
| Enhanced service-module slots | 2 |
| NIM slots | 3 |
| Onboard ISC slot | 1 |
| Aggregate Throughput | 1 Gbps to 2 Gbps |
| AC Input Voltage | 100 to 240 VAC autoranging |
| Power Supply Options | Internal: AC, DC and PoE |
| Dimensions (H x W x D) | 88.9 x 438.15 x 469.9 mm |
| Rack Height | 2 RU |
[/properties]
[specifications]
| Specifications | ISR4451-X-AX/K9 |
| Data Plane DDR3 ECC DRAM | 2 GB (default and max) |
| Control/Services Plane DDR3 ECC DRAM | 4 GB default / 16 GB max |
| Flash Memory | 8 GB default / 32 GB max |
| External USB 2.0 Ports | 2 (Type A) |
| Console Ports | 1 x USB Type B, 1 x RJ-45 |
| Auxiliary Port | 1 x RJ-45 |
| OIR Support | Yes (all I/O modules) |
| Doublewide SM-X Slots | 1 (if no singlewide installed) |
| Typical Power Consumption | 158W (no modules) |
| Max Power (AC only) | 450W |
| Max PoE Power (Redundant) | 1000W |
| Max PoE Power (Boost, no redundancy) | 1450W |
| Max Endpoint PoE Power (Redundant) | 500W |
| Max Endpoint PoE Power (Boost, no redundancy) | 950W |
| Input Frequency | 47 to 63 Hz |
| Input Current Range | 7.1A to 3.0A |
| Surge Current | < 50 A |
[/specifications]
[accesories]
| Included Accessories | |
| — | No accessories included in the box |
| Optional Accessories | |
| CAB-CONSOLE-RJ45 | Console Cable RJ45 to DB9F |
| CAB-CONSOLE-USB | Console Cable USB Type A to Mini-B |
| NIM-1MFT-T1/E1 | Multiflex Trunk Voice/WAN Module |
| NIM-2FXS | Analog Voice Network Interface Card |
| GLC-SX-MMD | 1000BASE-SX SFP, MMF, 850nm, DOM |
| GLC-LH-SMD | 1000BASE-LX/LH SFP, SMF/MMF, 1310nm |
| GLC-ZX-SMD | 1000BASE-ZX SFP, SMF, 1550nm |
| L-SL-44-APP-K9= | AppX License for ISR 4431/4451 |
[/accesories]
Cisco ISR4451-X-AX/K9 Router
ISR 4400 Series are design to deliver advanced services to the enterprise branches, they are ideal for mid-size to large branch environment, delivers unprecedent level of WAN intelligence. Scalability, High-performance, Network Services, Security and Voice are only a few benefits of Cisco 4400 Series ISR. These platform leverage separate dedicated control data and services CPUs for running multi-services with performance.Advanced network services enable the branch to utilize the WAN intelligently is really what ISR 4400 series all about. With feature like AVC, performance routing (PfR), WAAS make this platform obviously more than a router, moreover, the ISR 4400 series include supporting OnePk, AppNav, making the platform easier to scale the network and application integration. ISR4451-X-AX/K9 integrated router combines high-performance, scalability, Data Center features and smart router is made to run multiple services. This is the only router in industry separates control data and services planes, so the benefits are numerous. With pay-as-you-grow performance, you can increase forwarding capacity when needed, you only pay for the performance you need. The ISR4451-X-AX/K9 runs multi-core, multi-threaded advanced secruity IOS-XE operating system to enable both WAN link security and MPLS and OTV services. Full featured WAN optimization with that run native on the motherboard without affecting performance, management and other capabilities. According to the scalability, ISR 4451 designed as a layer 7 router basically, the advanced network services enable the branch to utilize the WAN intelligently is really what ISR 4400 series all about.The Cisco ISR 4451 is the ultimate application delivery platform to mid-size or even large branch offices. This is literally routing redefined.
