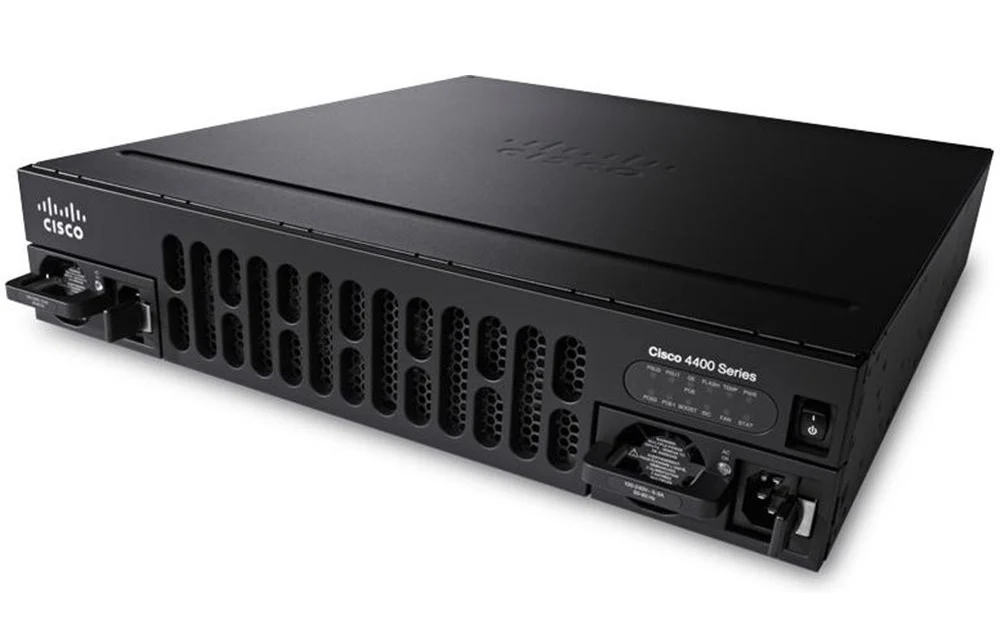

Cisco ISR4431-V/K9 Router
- 500Mbps-1Gbps system throughput
- 4 WAN/LAN ports
- 4 SFP ports
- multi-Core CPU
- Dual-power
- Security
- Voice
- WAAS
- Intelligent WAN
- OnePK
- AVC
[properties]
| Properties | ISR4431-V-K9 |
| Description | Cisco ISR 4431 (4GE,3NIM,8G FLASH,4G DRAM,VOIP) |
| Product Family | ISR 4000 Series |
| Product Type | Routers |
| Total onboard WAN or LAN 10/100/1000 ports | 4 |
| RJ-45-based ports | 4 |
| SFP-based ports | 4 |
| Enhanced service- module slots | 0 |
| Aggregate Throughput (Default) | 500 Mbps to 1 Gbps |
| AC input voltage | 100 to 240 VAC autoranging |
| Power-supply options | Internal: AC,DC and PoE |
| Maximum power with AC power supply (watts) | 250 (no PoE) |
| Maximum power with PoE power supply (platform only) (watts) | 500 with PoE redundant |
| Unit dimensions in. (W x D x H) | 1.73 x 17.25 x 19.97 |
| Rack-mount 19in. | Included |
| Wall-mount | Yes |
[/properties]
[specifications]
| Specifications | ISR4431-V-K9 |
| Default memory double-data-rate 3 (DDR3) error-correction-code (ECC) DRAM | NA |
| Maximum memory DDR3 ECC DRAM (Combined control/services/data planes) | NA |
| Default memory DDR3 ECC DRAM (data plane) | 2 GB |
| Maximum memory DDR3 ECC DRAM (data plane) | 2 GB |
| Default memory DDR3 ECC DRAM (control/services plane) | 4 GB |
| Maximum memory DDR3 ECC DRAM (control/services plane) | 16 GB |
| Default flash memory | 8 GB |
| Maximum Flash Memory | 32 GB |
| Operating Temperature | 32 to 104°F (0 to 40°C) |
| Operating humidity | 5% to 85% |
| Safety | UL 60950-1 |
| CAN/CSA C22.2 No. 60950-1 | |
| EN 60950-1 | |
| AS/NZS 60950-1 | |
| IEC 60950-1 | |
| EMC | 47 CFR, Part 15 |
| ICES-003 Class A | |
| EN55032 Class A | |
| CISPR32 Class A | |
| AS/NZS CISPR 32 Class A | |
| VCCI V-3 | |
| CNS 13438 | |
| EN 300-386 | |
| EN 61000 (Immunity) | |
| EN 55024, CISPR 24 | |
| KN22, KN24 EN 50121-1 EN61000-6-4 EN 50121-4 | |
| Protocols | IPv4, IPv6, static routes, Routing Information Protocol Versions 1 and 2 (RIP and RIPv2), Open Shortest Path First (OSPF), Enhanced IGRP (EIGRP), Border Gateway Protocol (BGP), BGP Router Reflector, Intermediate System-to-Intermediate System (IS-IS), Multicast Internet Group Management Protocol Version 3 (IGMPv3), Protocol Independent Multicast sparse mode (PIM SM), PIM Source Specific Multicast (SSM), RSVP, CDP, ERSPAN, IPSLA, Call Home, EEM, IKE, ACL, EVC, DHCP, FR, DNS, LISP, OTV6, HSRP, RADIUS, AAA, AVC, Distance Vector Multicast Routing Protocol (DVMRP), IPv4-to-IPv6 Multicast, MPLS, Layer 2 and Layer 3 VPN, IP sec, Layer 2 Tunneling Protocol Version 3 (L2TPv3), Bidirectional Forwarding Detection (BFD), IEEE802.1ag, and IEEE802.3ah |
[/specifications]
[accesories]
| Accessories | There is no additional accessories. |
| Bundles | Features |
| Application Experience with Voice (AXV) | AX + Voice |
| Voice with Security (VSEC) | Voice + Security |
| Application Experience (AX) | IP Base + Security + advanced networking protocols: L2TPv3, BFD, MPLS, VRF, VXLAN10 (Bandwidth <100Mbps) |
| Application Experience: PfRv3, WAAS with AppNav, NBAR2, AVC, IP SLA | |
| Hybrid Cloud Connectivity: LISP, OTV (for Bandwidth <100Mbps), VPLS, EoMPLS Intelligent Web Caching: Akamai Connect | |
| Voice (V) | IP Base + Unified Communications: CME, SRST, CUBE |
| Security (SEC) | IP Base + Advanced Security: Zone Based Firewall, IPSec VPN, EZVPN, DMVPN, |
[/accesories]
Cisco ISR4431-V/K9 Router Overview
ISR 4400 Series is designed to deliver advanced services to the enterprise branches, they are ideal for mid-size to large branch environments, delivers unprecedented levels of WAN intelligence. Scalability, High-performance, Network Services, Security and Voice are only a few benefits of Cisco 4400 Series ISR. These platforms leverage separate dedicated control data and services CPUs for running multi-services with performance. Advanced network services enable the branch to utilize the WAN intelligently is really what ISR 4400 series all about. With features like AVC, performance routing (PfR), WAAS make this platform obviously more than a router, moreover, the ISR 4400 series include supporting OnePk, AppNav, making the platform easier to scale the network and application integration. ISR4431-V/K9 integrated router combines high-performance, scalability, VOIP and smart router is made to run multiple services. This is the only router in industry separates control data and services planes, so the benefits are numerous. With pay-as-you-grow performance, you can increase forwarding capacity when needed, you only pay for the performance you need. The ISR4431-V/K9 runs multi-core, multi-threaded advanced Voice IOS-XE operating system to enable both WAN link security and VOIP services. Full-featured WAN optimization with that run native on the motherboard without affecting performance, management, and other capabilities. According to the scalability, ISR 4431 designed as a layer 7 router basically, the advanced network services enable the branch to utilize the WAN intelligently is really what ISR 4400 series all about. The Cisco ISR 4431 is the ultimate application delivery platform to mid-size or even large branch offices. This is literally routing redefined.
