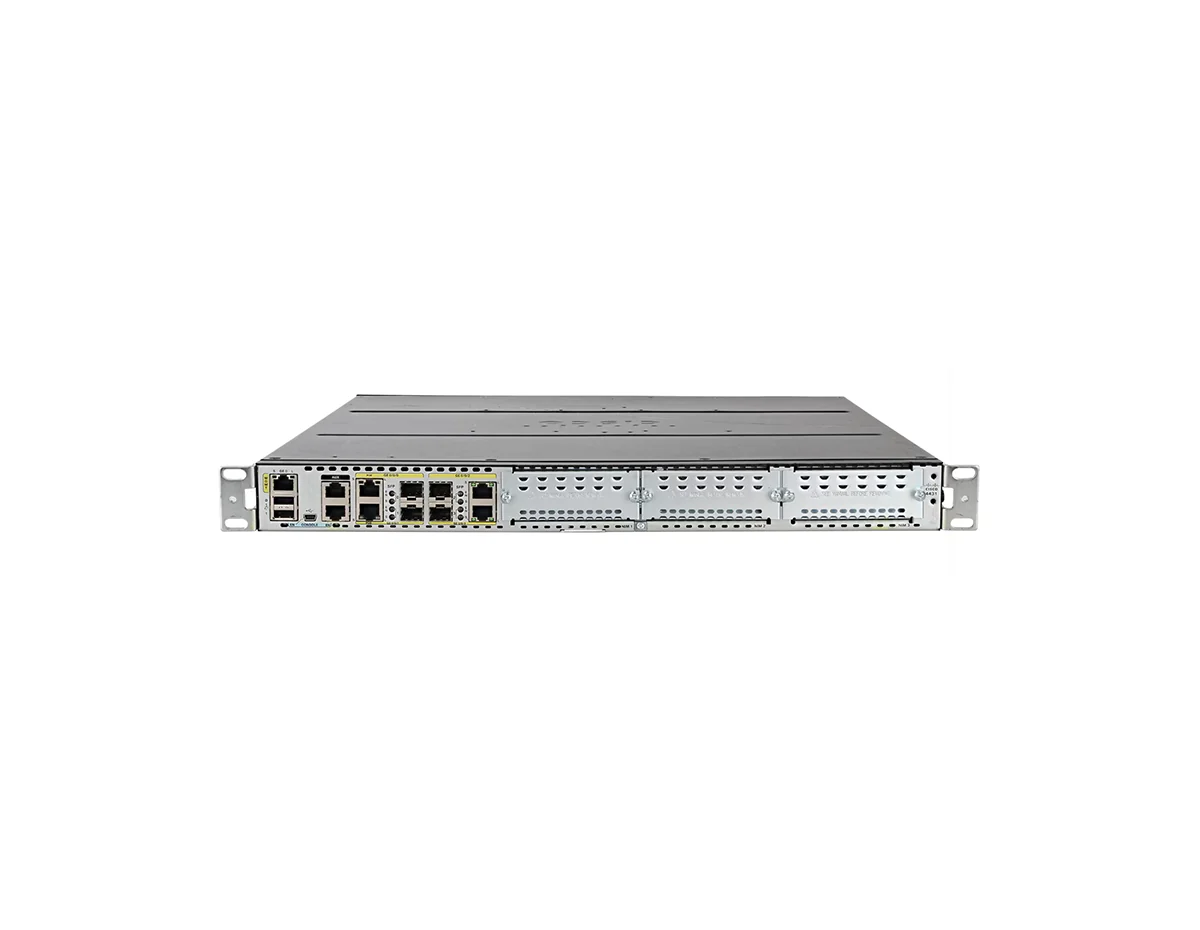

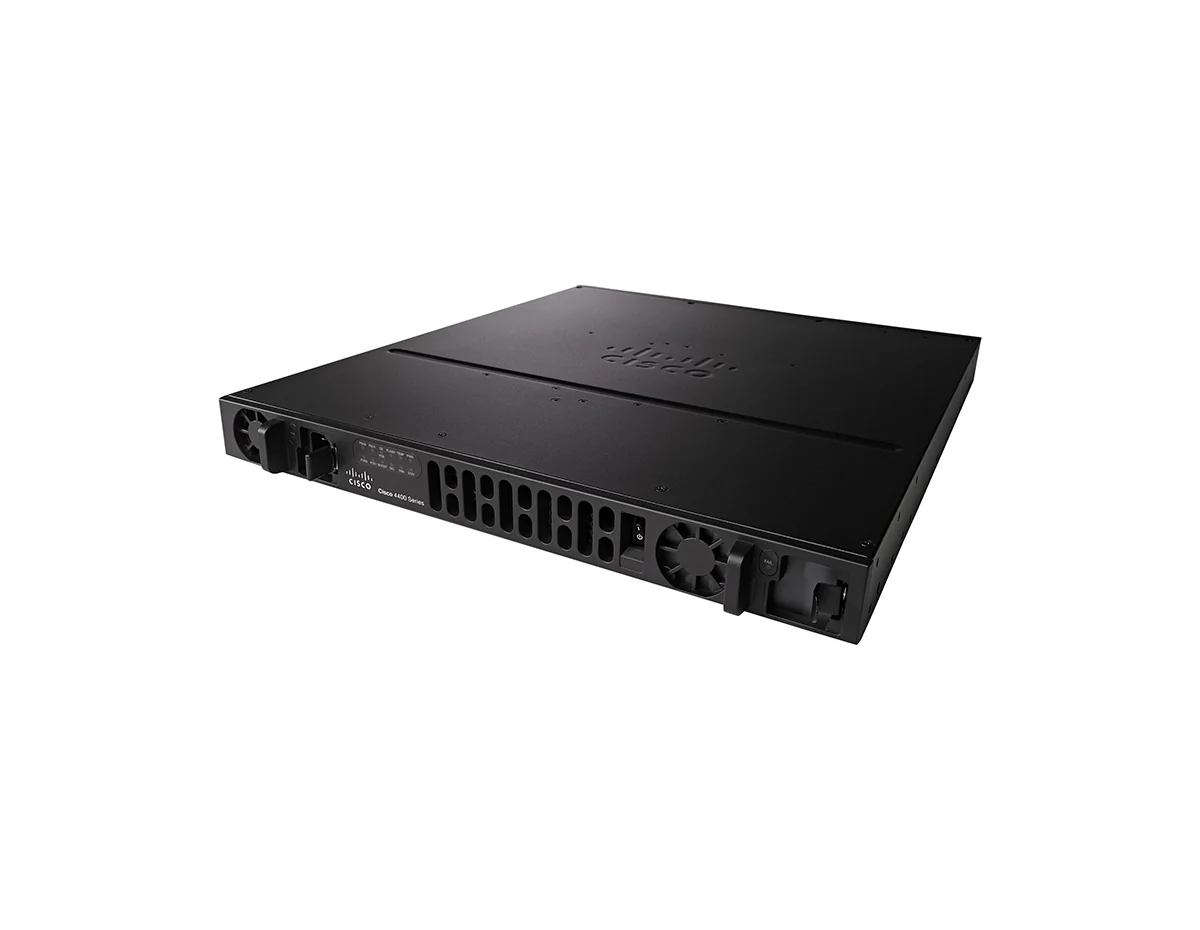

Cisco ISR4431-SEC/K9 Router
[shortdesc]
- 500Mbps-1Gbps system throughput
- 4 WAN/LAN ports
- 4 SFP ports
- multi-Core CPU
- Dual-power
- Security
- Voice
- WAAS
- Intelligent WAN
- OnePK
- AVC
[properties]
| Properties | ISR4431-SEC-K9 |
| Description | ISR 4431 with 4 onboard GE, 3 NIM slots, 1 ISC slot, 8GB Flash Memory default, 2 GB DRAM default (data plane), 4 GB DRAM default (control plane). With Security Bundle. |
| Product Family | ISR 4000 Series |
| Product Type | Routers |
| Total onboard WAN or LAN 10/100/1000 ports | 4 |
| RJ-45-based ports | 4 |
| SFP-based ports | 4 |
| Enhanced service- module slots | 0 |
| Aggregate Throughput (Default) | 500 Mbps to 1 Gbps |
| AC input voltage | 100 to 240 VAC autoranging |
| Power-supply options | Internal: AC,DC and PoE |
| Maximum power with AC power supply (watts) | 250 (no PoE) |
| Maximum power with PoE power supply (platform only) (watts) | 500 with PoE redundant |
| Unit dimensions in. (W x D x H) | 1.73 x 17.25 x 19.97 |
| Rack-mount 19in. | Included |
| Wall-mount | Yes |
[/properties]
[specifications]
| Specifications | ISR4431-SEC-K9 |
| Default memory double-data-rate 3 (DDR3) error-correction-code (ECC) DRAM | NA |
| Maximum memory DDR3 ECC DRAM (Combined control/services/data planes) | NA |
| Default memory DDR3 ECC DRAM (data plane) | 2 GB |
| Maximum memory DDR3 ECC DRAM (data plane) | 2 GB |
| Default memory DDR3 ECC DRAM (control/services plane) | 4 GB |
| Maximum memory DDR3 ECC DRAM (control/services plane) | 16 GB |
| Default flash memory | 8 GB |
| Maximum Flash Memory | 32 GB |
| Operating Temperature | 32 to 104°F (0 to 40°C) |
| Operating humidity | 5% to 85% |
| Safety | UL 60950-1 |
| CAN/CSA C22.2 No. 60950-1 | |
| EN 60950-1 | |
| AS/NZS 60950-1 | |
| IEC 60950-1 | |
| EMC | 47 CFR, Part 15 |
| ICES-003 Class A | |
| EN55032 Class A | |
| CISPR32 Class A | |
| AS/NZS CISPR 32 Class A | |
| VCCI V-3 | |
| CNS 13438 | |
| EN 300-386 | |
| EN 61000 (Immunity) | |
| EN 55024, CISPR 24 | |
| KN22, KN24 EN 50121-1 EN61000-6-4 EN 50121-4 | |
| Protocols | IPv4, IPv6, static routes, Routing Information Protocol Versions 1 and 2 (RIP and RIPv2), Open Shortest Path First (OSPF), Enhanced IGRP (EIGRP), Border Gateway Protocol (BGP), BGP Router Reflector, Intermediate System-to-Intermediate System (IS-IS), Multicast Internet Group Management Protocol Version 3 (IGMPv3), Protocol Independent Multicast sparse mode (PIM SM), PIM Source Specific Multicast (SSM), RSVP, CDP, ERSPAN, IPSLA, Call Home, EEM, IKE, ACL, EVC, DHCP, FR, DNS, LISP, OTV6, HSRP, RADIUS, AAA, AVC, Distance Vector Multicast Routing Protocol (DVMRP), IPv4-to-IPv6 Multicast, MPLS, Layer 2 and Layer 3 VPN, IP sec, Layer 2 Tunneling Protocol Version 3 (L2TPv3), Bidirectional Forwarding Detection (BFD), IEEE802.1ag, and IEEE802.3ah |
[/specifications]
[accesories]
| Accessories | There is no additional accessories. |
| Bundles | Features |
| Application Experience with Voice (AXV) | AX + Voice |
| Voice with Security (VSEC) | Voice + Security |
| Application Experience (AX) | IP Base + Security + advanced networking protocols: L2TPv3, BFD, MPLS, VRF, VXLAN10 (Bandwidth <100Mbps) |
| Application Experience: PfRv3, WAAS with AppNav, NBAR2, AVC, IP SLA | |
| Hybrid Cloud Connectivity: LISP, OTV (for Bandwidth <100Mbps), VPLS, EoMPLS Intelligent Web Caching: Akamai Connect | |
| Voice (V) | IP Base + Unified Communications: CME, SRST, CUBE |
| Security (SEC) | IP Base + Advanced Security: Zone Based Firewall, IPSec VPN, EZVPN, DMVPN |
[/accesories]
Cisco ISR4431-SEC/K9 Router Overview
The modular Cisco 4000 Series Integrated Services Routers (ISRs) delivers LAN and WAN connectivity, and offer Network Interface Module (NIM) slots as well as Enhanced service module (SM-X) slots. These slots support a plethora of modules that include LAN, WAN, and Wireless Interfaces, and a range of Compute engines that enable embedded services. With its licenses, the ISR4431-SEC/K9 model comes with Security Bundle that offers IP Base + Advanced Security: Zone Based Firewall, IPSec VPN, EZVPN, DMVPNivering over 4Gbps aggregate throughput capacity.
Key Features:
- Intent-based Cisco DNA
- Over 4Gbps aggregate throughput capacity w/ license
- Cisco® Software Defined WAN (SDWAN)
The tabs contain the ISR4431-SEC/K9 datasheet with all the specifics you need.Key Features:
Product Information
Product Information
Shipping & Returns
Shipping & Returns
Cisco ISR4431-SEC/K9 Router
Cisco ISR4431-SEC/K9 Router
[shortdesc]
- 500Mbps-1Gbps system throughput
- 4 WAN/LAN ports
- 4 SFP ports
- multi-Core CPU
- Dual-power
- Security
- Voice
- WAAS
- Intelligent WAN
- OnePK
- AVC
[properties]
| Properties | ISR4431-SEC-K9 |
| Description | ISR 4431 with 4 onboard GE, 3 NIM slots, 1 ISC slot, 8GB Flash Memory default, 2 GB DRAM default (data plane), 4 GB DRAM default (control plane). With Security Bundle. |
| Product Family | ISR 4000 Series |
| Product Type | Routers |
| Total onboard WAN or LAN 10/100/1000 ports | 4 |
| RJ-45-based ports | 4 |
| SFP-based ports | 4 |
| Enhanced service- module slots | 0 |
| Aggregate Throughput (Default) | 500 Mbps to 1 Gbps |
| AC input voltage | 100 to 240 VAC autoranging |
| Power-supply options | Internal: AC,DC and PoE |
| Maximum power with AC power supply (watts) | 250 (no PoE) |
| Maximum power with PoE power supply (platform only) (watts) | 500 with PoE redundant |
| Unit dimensions in. (W x D x H) | 1.73 x 17.25 x 19.97 |
| Rack-mount 19in. | Included |
| Wall-mount | Yes |
[/properties]
[specifications]
| Specifications | ISR4431-SEC-K9 |
| Default memory double-data-rate 3 (DDR3) error-correction-code (ECC) DRAM | NA |
| Maximum memory DDR3 ECC DRAM (Combined control/services/data planes) | NA |
| Default memory DDR3 ECC DRAM (data plane) | 2 GB |
| Maximum memory DDR3 ECC DRAM (data plane) | 2 GB |
| Default memory DDR3 ECC DRAM (control/services plane) | 4 GB |
| Maximum memory DDR3 ECC DRAM (control/services plane) | 16 GB |
| Default flash memory | 8 GB |
| Maximum Flash Memory | 32 GB |
| Operating Temperature | 32 to 104°F (0 to 40°C) |
| Operating humidity | 5% to 85% |
| Safety | UL 60950-1 |
| CAN/CSA C22.2 No. 60950-1 | |
| EN 60950-1 | |
| AS/NZS 60950-1 | |
| IEC 60950-1 | |
| EMC | 47 CFR, Part 15 |
| ICES-003 Class A | |
| EN55032 Class A | |
| CISPR32 Class A | |
| AS/NZS CISPR 32 Class A | |
| VCCI V-3 | |
| CNS 13438 | |
| EN 300-386 | |
| EN 61000 (Immunity) | |
| EN 55024, CISPR 24 | |
| KN22, KN24 EN 50121-1 EN61000-6-4 EN 50121-4 | |
| Protocols | IPv4, IPv6, static routes, Routing Information Protocol Versions 1 and 2 (RIP and RIPv2), Open Shortest Path First (OSPF), Enhanced IGRP (EIGRP), Border Gateway Protocol (BGP), BGP Router Reflector, Intermediate System-to-Intermediate System (IS-IS), Multicast Internet Group Management Protocol Version 3 (IGMPv3), Protocol Independent Multicast sparse mode (PIM SM), PIM Source Specific Multicast (SSM), RSVP, CDP, ERSPAN, IPSLA, Call Home, EEM, IKE, ACL, EVC, DHCP, FR, DNS, LISP, OTV6, HSRP, RADIUS, AAA, AVC, Distance Vector Multicast Routing Protocol (DVMRP), IPv4-to-IPv6 Multicast, MPLS, Layer 2 and Layer 3 VPN, IP sec, Layer 2 Tunneling Protocol Version 3 (L2TPv3), Bidirectional Forwarding Detection (BFD), IEEE802.1ag, and IEEE802.3ah |
[/specifications]
[accesories]
| Accessories | There is no additional accessories. |
| Bundles | Features |
| Application Experience with Voice (AXV) | AX + Voice |
| Voice with Security (VSEC) | Voice + Security |
| Application Experience (AX) | IP Base + Security + advanced networking protocols: L2TPv3, BFD, MPLS, VRF, VXLAN10 (Bandwidth <100Mbps) |
| Application Experience: PfRv3, WAAS with AppNav, NBAR2, AVC, IP SLA | |
| Hybrid Cloud Connectivity: LISP, OTV (for Bandwidth <100Mbps), VPLS, EoMPLS Intelligent Web Caching: Akamai Connect | |
| Voice (V) | IP Base + Unified Communications: CME, SRST, CUBE |
| Security (SEC) | IP Base + Advanced Security: Zone Based Firewall, IPSec VPN, EZVPN, DMVPN |
[/accesories]
Cisco ISR4431-SEC/K9 Router Overview
The modular Cisco 4000 Series Integrated Services Routers (ISRs) delivers LAN and WAN connectivity, and offer Network Interface Module (NIM) slots as well as Enhanced service module (SM-X) slots. These slots support a plethora of modules that include LAN, WAN, and Wireless Interfaces, and a range of Compute engines that enable embedded services. With its licenses, the ISR4431-SEC/K9 model comes with Security Bundle that offers IP Base + Advanced Security: Zone Based Firewall, IPSec VPN, EZVPN, DMVPNivering over 4Gbps aggregate throughput capacity.
Key Features:
- Intent-based Cisco DNA
- Over 4Gbps aggregate throughput capacity w/ license
- Cisco® Software Defined WAN (SDWAN)
The tabs contain the ISR4431-SEC/K9 datasheet with all the specifics you need.Key Features:
$3,415.65
Original: $9,759.00
-65%Cisco ISR4431-SEC/K9 Router—
$9,759.00
$3,415.65Product Information
Product Information
Shipping & Returns
Shipping & Returns
Description
[shortdesc]
- 500Mbps-1Gbps system throughput
- 4 WAN/LAN ports
- 4 SFP ports
- multi-Core CPU
- Dual-power
- Security
- Voice
- WAAS
- Intelligent WAN
- OnePK
- AVC
[properties]
| Properties | ISR4431-SEC-K9 |
| Description | ISR 4431 with 4 onboard GE, 3 NIM slots, 1 ISC slot, 8GB Flash Memory default, 2 GB DRAM default (data plane), 4 GB DRAM default (control plane). With Security Bundle. |
| Product Family | ISR 4000 Series |
| Product Type | Routers |
| Total onboard WAN or LAN 10/100/1000 ports | 4 |
| RJ-45-based ports | 4 |
| SFP-based ports | 4 |
| Enhanced service- module slots | 0 |
| Aggregate Throughput (Default) | 500 Mbps to 1 Gbps |
| AC input voltage | 100 to 240 VAC autoranging |
| Power-supply options | Internal: AC,DC and PoE |
| Maximum power with AC power supply (watts) | 250 (no PoE) |
| Maximum power with PoE power supply (platform only) (watts) | 500 with PoE redundant |
| Unit dimensions in. (W x D x H) | 1.73 x 17.25 x 19.97 |
| Rack-mount 19in. | Included |
| Wall-mount | Yes |
[/properties]
[specifications]
| Specifications | ISR4431-SEC-K9 |
| Default memory double-data-rate 3 (DDR3) error-correction-code (ECC) DRAM | NA |
| Maximum memory DDR3 ECC DRAM (Combined control/services/data planes) | NA |
| Default memory DDR3 ECC DRAM (data plane) | 2 GB |
| Maximum memory DDR3 ECC DRAM (data plane) | 2 GB |
| Default memory DDR3 ECC DRAM (control/services plane) | 4 GB |
| Maximum memory DDR3 ECC DRAM (control/services plane) | 16 GB |
| Default flash memory | 8 GB |
| Maximum Flash Memory | 32 GB |
| Operating Temperature | 32 to 104°F (0 to 40°C) |
| Operating humidity | 5% to 85% |
| Safety | UL 60950-1 |
| CAN/CSA C22.2 No. 60950-1 | |
| EN 60950-1 | |
| AS/NZS 60950-1 | |
| IEC 60950-1 | |
| EMC | 47 CFR, Part 15 |
| ICES-003 Class A | |
| EN55032 Class A | |
| CISPR32 Class A | |
| AS/NZS CISPR 32 Class A | |
| VCCI V-3 | |
| CNS 13438 | |
| EN 300-386 | |
| EN 61000 (Immunity) | |
| EN 55024, CISPR 24 | |
| KN22, KN24 EN 50121-1 EN61000-6-4 EN 50121-4 | |
| Protocols | IPv4, IPv6, static routes, Routing Information Protocol Versions 1 and 2 (RIP and RIPv2), Open Shortest Path First (OSPF), Enhanced IGRP (EIGRP), Border Gateway Protocol (BGP), BGP Router Reflector, Intermediate System-to-Intermediate System (IS-IS), Multicast Internet Group Management Protocol Version 3 (IGMPv3), Protocol Independent Multicast sparse mode (PIM SM), PIM Source Specific Multicast (SSM), RSVP, CDP, ERSPAN, IPSLA, Call Home, EEM, IKE, ACL, EVC, DHCP, FR, DNS, LISP, OTV6, HSRP, RADIUS, AAA, AVC, Distance Vector Multicast Routing Protocol (DVMRP), IPv4-to-IPv6 Multicast, MPLS, Layer 2 and Layer 3 VPN, IP sec, Layer 2 Tunneling Protocol Version 3 (L2TPv3), Bidirectional Forwarding Detection (BFD), IEEE802.1ag, and IEEE802.3ah |
[/specifications]
[accesories]
| Accessories | There is no additional accessories. |
| Bundles | Features |
| Application Experience with Voice (AXV) | AX + Voice |
| Voice with Security (VSEC) | Voice + Security |
| Application Experience (AX) | IP Base + Security + advanced networking protocols: L2TPv3, BFD, MPLS, VRF, VXLAN10 (Bandwidth <100Mbps) |
| Application Experience: PfRv3, WAAS with AppNav, NBAR2, AVC, IP SLA | |
| Hybrid Cloud Connectivity: LISP, OTV (for Bandwidth <100Mbps), VPLS, EoMPLS Intelligent Web Caching: Akamai Connect | |
| Voice (V) | IP Base + Unified Communications: CME, SRST, CUBE |
| Security (SEC) | IP Base + Advanced Security: Zone Based Firewall, IPSec VPN, EZVPN, DMVPN |
[/accesories]
Cisco ISR4431-SEC/K9 Router Overview
The modular Cisco 4000 Series Integrated Services Routers (ISRs) delivers LAN and WAN connectivity, and offer Network Interface Module (NIM) slots as well as Enhanced service module (SM-X) slots. These slots support a plethora of modules that include LAN, WAN, and Wireless Interfaces, and a range of Compute engines that enable embedded services. With its licenses, the ISR4431-SEC/K9 model comes with Security Bundle that offers IP Base + Advanced Security: Zone Based Firewall, IPSec VPN, EZVPN, DMVPNivering over 4Gbps aggregate throughput capacity.
Key Features:
- Intent-based Cisco DNA
- Over 4Gbps aggregate throughput capacity w/ license
- Cisco® Software Defined WAN (SDWAN)
The tabs contain the ISR4431-SEC/K9 datasheet with all the specifics you need.Key Features:
