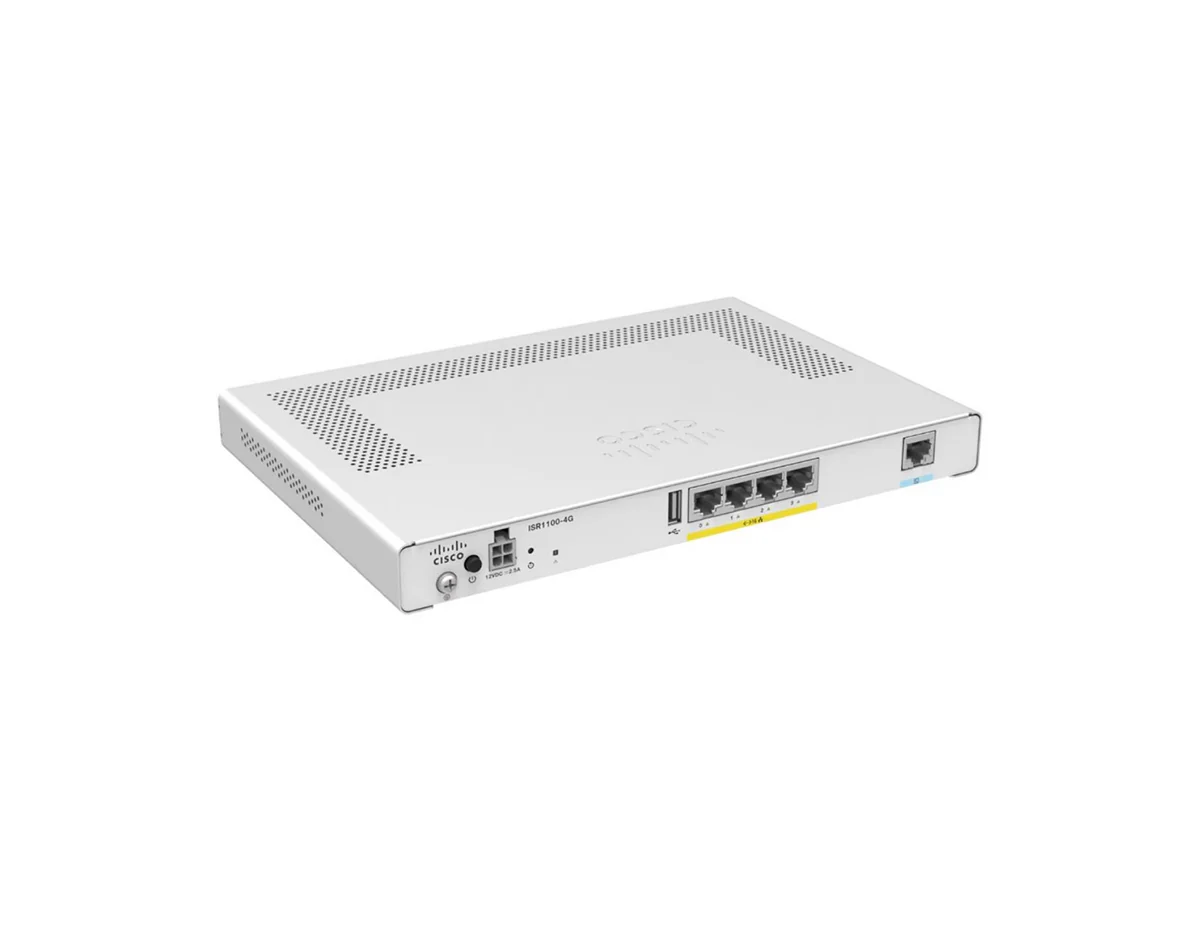

Cisco ISR1100-4G Router
- 4G, GigE, Router
[properties]
| Properties | ISR1100-4G |
| Description | The ISR1100-4G Router delivers 4 Gigabit Ethernet ports (2 PoE), Cisco IOS XE Software, and advanced security/application services for small to medium-sized businesses. |
| Product Family | Cisco 1100 Series |
| Product Type | Integrated Services Routers |
| WAN GE (Copper) | 4 |
| WAN SFP combo | N/A |
| WAN LTE (CAT4) | N/A |
| LAN GE | 4 |
| Integrated USB 3.0 AUX/console | Yes |
| Fan | No |
|
External Adapter |
30W |
| AC Power Input voltageĀ | Universal 100 to 240 VACĀ |
|
Frequency |
50 to 60 Hz |
|
Maximum output power |
30W |
|
Output voltage |
12VDCĀ |
| Dimensions in. (H x W x D) | 10.2 x 7 x 1.1 |
[/properties][specifications]
| Specifications | C1100-4G |
| CPU | Intel 2.2 GHz 4-core |
| Dram | 4 GB |
| Bulk Flash | 8 GB eMMC pSLC |
| XE SD-WAN Operating System | Enterprise Firewall, DNS Web Layer Security |
| Authentication and security |
āĀ Ā TACACS+ |
| Operating Temperature |
32Ā° to 104Ā°F (0Ā° to 40Ā°C). |
| Standard safety certificationsĀ | āĀ UL 60950-1, second edition āĀ CAN/CSA C22.2 No. 60950-1, second edition āĀ EN 60950-1, second edition āĀ CB to IEC 60950-1, second edition with all group differences and national deviations āĀ AS/NZS 60950.1:2011 āĀ IEC-62368 (CB and UL/CSA) āĀ NOM-019-SCFI-1998 āĀ GB4943 |
| EMCĀ | EMC emissions:āĀ EN55022/CISPR22, CFR 47 Part 15, ICES003, VCCI-V-3, AS/NZS CISPR22, CNS13438, EN300-386, EN61000-3-2, EN61000-3-3, KN22, TCVN 7189, and EN61000-6-1 EMC immunity: āĀ EN55024/CISPR24, (EN61000-4-2, EN61000-4-3, EN61000-4-4, EN61000-4-5, EN61000-4-6, EN61000-4-11), EN61000-6-1, KN24, TCVN 7317, and EN300-386 |
[/specifications][accesories]
| 30W 341-100891-01 | External Adapter |
| CAB-ETH-S-RJ45 | Ethernet cable |
| CAB-CONAUX | Console cable |
| CAB-CONSOLE-RJ45 | Console cable |
[/accesories]
Cisco ISR1100-4G Router
The ISR 1100 Series is powered by Viptela or IOS XE SD-WAN operating systems in a wired high-performance platform. The ISR1100-4G comes with 4GB DRAM, is lightweight and compact, and has low power consumption, making it ideal for deployment in environments where space, heat dissipation, and low power consumption are critical factors.
Key Features:
- 10 to 100-Mbps bandwidth tier
- four built-in GE ports for WAN or LAN
- UEFI secure boot
For detailed specifications, refer to the Cisco ISR1100-4G datasheet in the tabs.
