[shortdesc] 5G industrial-grade router with Intel 8-core CPU, 14 GE ports, dual WAN, 2RU rack chassis, 120W PoE+, SD-WAN ready, IEC 61850-3 and IEEE 1613 compliant. [/shortdesc]

[properties]

Model	Cisco Catalyst IR8340-K9
Product Type	Rugged Industrial Router
CPU	Intel x86 8-core processor
Memory (DDR4)	8 GB
Flash Memory	Integrated on-board 16 GB eMMC (7.2 GB usable)
Additional Storage Options	mSATA 100 GB; SD card; USB 2.0/3.0 storage
Integrated Gigabit Ethernet Ports	14 x 1GE (4 x RJ-45 with PoE/PoE+/UPOE, 4 x combo RJ-45/SFP, 4 x SFP LAN, 2 x combo RJ-45/SFP WAN)
PoE Budget	120W total (Ports 1–2: up to 60W UPOE; Ports 3–4: up to 30W PoE+)
Form Factor	2RU rack-mountable (19” EIA)
Module Slots	2 x NIM slots, 2 x PIM slots
Power Supply Options	150W Low DC (24–60 VDC); 150W High AC/DC (100–250 VDC / 100–240 VAC); 250W High AC/DC (100–250 VDC / 100–240 VAC)
Operating Temperature	-40°C to +60°C (-40°F to +140°F)
Storage Temperature	-40°C to +85°C (-40°F to +185°F)
Humidity	5% to 95% non-condensing
Altitude	Up to 10,000 ft (3,048 m) operating; 16,000 ft (4,876 m) non-operating
Dimensions (H × W × D)	3.5 × 17.25 × 15 in (88.9 × 438.2 × 381 mm)
Weight	24 lb (10.9 kg) base; 28 lb (12.7 kg) fully configured
Cooling	Convection and conduction (fanless design)
Compliance	IEC 61850-3, IEEE 1613, EN61000-6-2/6-4/6-5, UL/CSA 62368-1, UL/CSA 61010-2-201, NOM-019-SCFI, NEMA TS-2
Mounting	Rack-mount kit included

[/properties]

[specifications]

IPsec VPN Throughput	2 Gbps
Security Features	NGFW, Cisco Cyber Vision, IPsec, DMVPN, GETVPN, FlexVPN, MACsec, TrustSec, Secure Boot, SUDI
Supported Software	Cisco IOS XE (17.7.1 or later), Network Essentials / Advantage Licenses
SD-WAN Support	Cisco Catalyst SD-WAN Manager and Catalyst Center
Connectivity Modules	LTE Cat 4, LTE Cat 7, 5G Sub-6 GHz modules; dual SIM and dual cellular support
5G Module (P-5GS6-R16SA-GL)	4.9 Gbps download / 660 Mbps upload; FirstNet Capable (B14); multi-region coverage
Timing and Synchronization	IRIG-B (in/out), GNSS, TOD/1PPS, IEEE 1588 v2 (PTP), SyncE, Stratum 3E OCXO
QoS	LLQ, WFQ, CBWFQ, DiffServ, RSVP, Policy-Based Routing
Protocols Supported	IPv4, IPv6, OSPFv2/v3, BGP, EIGRP, IS-IS, MPLS, VRF, NAT, VLAN, L2TPv3, GRE, REP, PRP, VXLAN
Storage Expansion	mSATA SSD (100 GB), USB 3.0 external storage
Mean Time Between Failures (MTBF)	239,274 hours
EMC Standards	IEC/CISPR 22, EN55032, EN55024, EN61000-4 series
Safety Standards	UL/CSA/IEC/EN 62368-1, UL/CSA 61010-2-201, NOM-019-SCFI
Railway Standards	AREMA, EN50121-4, EN50125-3, EN50155
Certifications	FirstNet Ready, FIPS 140-2, Common Criteria, DoDIN APL, USGv6

[/specifications]

[accesories]

Included Accessories	Rack-mount kit; one power supply (varies by configuration)
Optional Power Supplies	PWR-RGD-AC-DC, PWR-RGD-LOW-DC, PWR-RGD-AC-DC-250
Optional Modules	IRM-TIMING-MOD, IRM-NIM-2T1E1, IRM-NIM-RS232, P-5GS6-R16SA-GL, P-LTEA7 series, P-LTE series
Optional Storage	IRM-SSD-100G (100 GB mSATA), IRM-NIM-BLNK, IRM-P-BLNK, IRM-SSD-BLNK
Optional Optics	GLC-FE-100FX-RGD, GLC-SX-MM-RGD, GLC-LX-SM-RGD, CWDM/DWDM SFP modules

[/accesories]

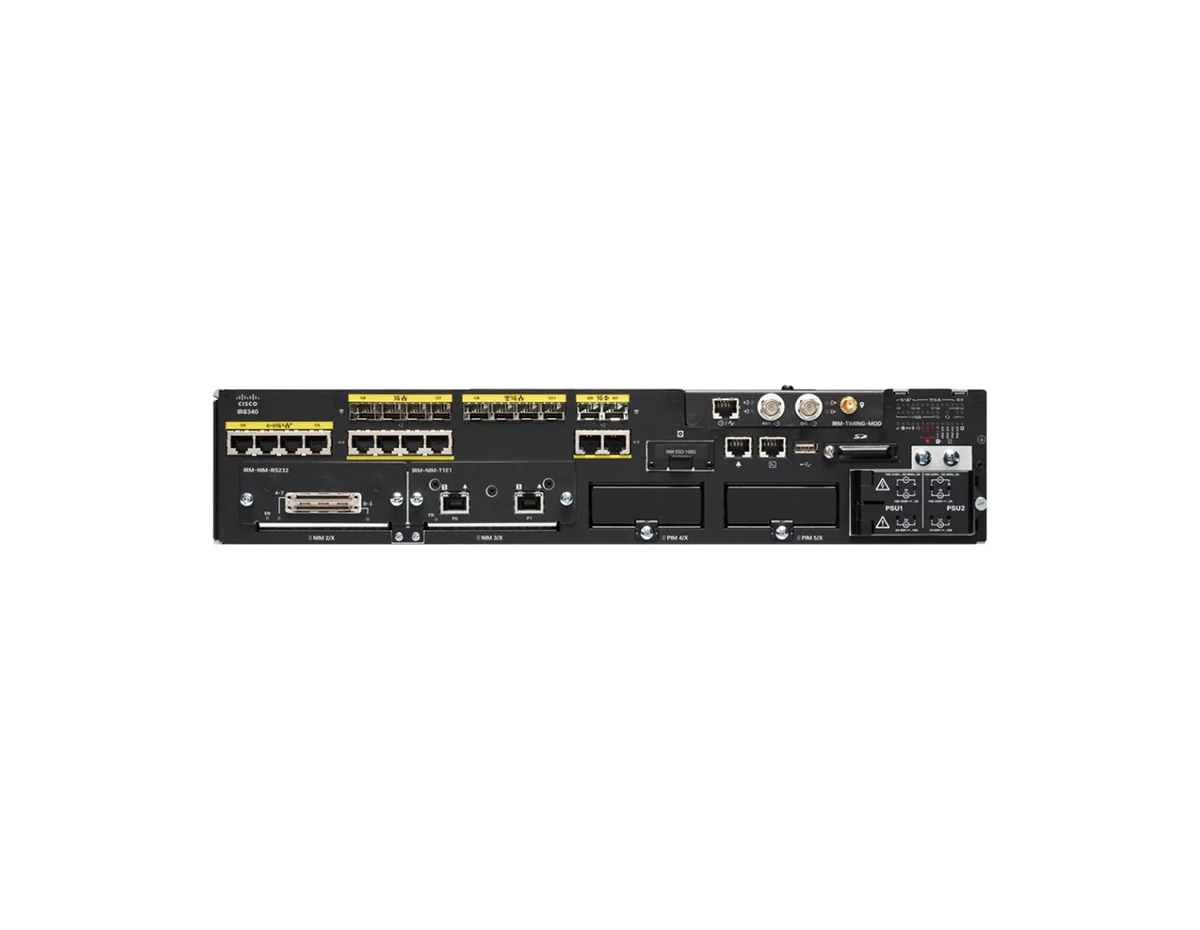

Empower Industrial Networks with the Cisco Catalyst IR8340-K9

The Cisco Catalyst IR8340-K9 Rugged Router delivers advanced 5G connectivity, multilayer security, and edge intelligence in a compact, substation-hardened form factor. Built on Cisco’s UADP ASIC and Quantum Flow Processor architectures, this industrial-grade platform is engineered for mission-critical applications in energy, transportation, oil and gas, and utilities. It integrates routing, switching, and security in one modular 2RU system, ensuring uptime in extreme conditions.

Key Benefits & Features

• High-Performance Computing: Intel x86 8-core CPU with 8 GB DDR4 memory and hardware encryption acceleration for secure networking.
• 5G and SD-WAN Integration: Dual 5G/LTE support with Cisco Catalyst SD-WAN Manager enables intelligent, resilient WAN performance.
• Rugged Industrial Design: Fully compliant with IEC 61850-3 and IEEE 1613 for reliable operation in harsh substation and utility environments.
• Modular Expansion: Includes 2 NIM and 2 PIM slots for connectivity modules such as serial, T1/E1, and GNSS timing.
• Comprehensive Security: Supports NGFW, Cisco Cyber Vision, TrustSec, and SUDI for secure device identity and traffic protection.

Ideal Use Cases

• Power utilities and substation automation
• Transportation and railway control systems
• Oil and gas SCADA backhaul networks
• Industrial IoT and edge automation
• Public safety and FirstNet applications

Technical Specifications

• Processor: Intel x86 8-core CPU
• Memory: 8 GB DDR4, 16 GB eMMC flash
• Ports: 14 GE total (4 RJ-45, 4 combo RJ-45/SFP, 4 SFP, 2 combo WAN)
• PoE Budget: Up to 120W (UPOE/PoE+)
• IPsec VPN Throughput: 2 Gbps
• Form Factor: 2RU rack-mountable (19")
• Power Options: 150W DC, 150W AC/DC, 250W AC/DC
• Operating Temperature: -40°C to +60°C
• Compliance: IEC 61850-3, IEEE 1613, FirstNet Ready, FIPS 140-2, EN50155
• Weight: 10.9 kg base; 12.7 kg fully loaded

Future-Proof Your Edge Infrastructure

Accelerate industrial transformation with the Cisco Catalyst IR8340-K9 Rugged Router—offering 5G performance, advanced security, and modular flexibility for the most demanding environments. Order now.
