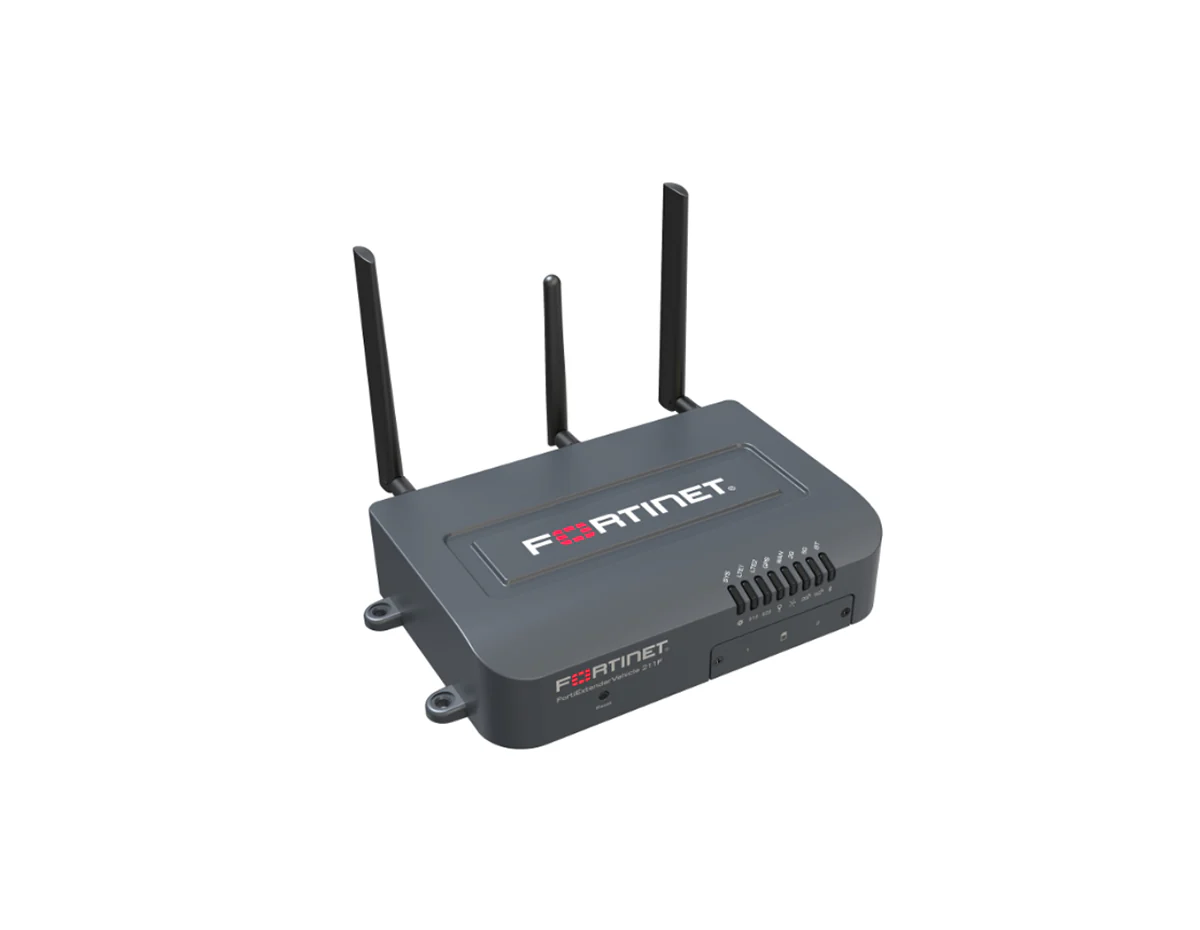

Fortinet FortiExtender Rugged FEV-211F-AM WWAN Router
[shortdesc] 4G LTE CAT-12 WWAN, dual-SIM intelligent failover, Wi-Fi 5 Wave 2 and Bluetooth 5.0, 5x Gigabit Ethernet ports, rugged IP64 vehicle design [/shortdesc]
[properties]
| Model | FortiExtenderVehicle 211F-AM |
| SKU | FEV-211F-AM |
| Product Type | Rugged Broadband Wireless WAN Router |
| Intended Use | Vehicle and OT applications |
| Cellular Technology | 3G, 4G LTE CAT-12 (North America) |
| Wi-Fi Standard | 2x2 2.4/5 GHz 802.11 a/b/g/n/ac Wave 2 |
| Bluetooth | Bluetooth 5.0 |
| Ethernet Ports | 1 x GE WAN, 4 x GE LAN (RJ45) |
| USB Ports | 1 x USB 2.0 Type-A |
| SIM Support | Dual Micro-SIM (3FF) |
| Antenna Ports | 6 x SMA (LTE, Wi-Fi, GNSS, Bluetooth) |
| Mounting Options | Desktop, Wall-mountable, Vehicle mount |
| Ingress Protection | IP64 |
| Power Input | 7–50 V DC (Vehicle battery systems) |
| Power Consumption | 17.88 W (average), 22.74 W (maximum) |
| Dimensions (H × W × L) | 45 × 130 × 182 mm (1.77 × 5.11 × 7.16 in) |
| Weight | 0.97 kg (2.1 lb) |
| Operating Temperature | -40 °C to 70 °C (-40 °F to 158 °F) |
| Humidity | 5% to 95% (non-condensing) |
[/properties]
[specifications]
| LTE Modem | Sierra Wireless EM7511 (CAT-12) |
| LTE Throughput | Downlink up to 600 Mbps, Uplink up to 150 Mbps |
| Supported LTE Bands | B1, B2, B3, B4, B5, B7, B8, B9, B12, B13, B14, B18, B19, B20, B26, B29, B30, B32, B41, B42, B43, B46, B48, B66 |
| 3G Support | UMTS / HSPA+ / WCDMA |
| Wi-Fi Data Rate | Up to 1200 Mbps |
| Wi-Fi MIMO | 2x2 MIMO |
| GNSS Support | GPS / GNSS antenna port |
| LAN Throughput | 930 Mbps (Layer 2) |
| LAN-WAN NAT Throughput | 930 Mbps |
| IPsec VPN Throughput | 120 Mbps (Wired and LTE) |
| LAN Extension (VxLAN over IPsec) | 90 Mbps |
| Management | FortiGate, FortiManager, FortiExtender Cloud |
| Certifications | FCC, IC, CE, PTCRB, GCF, EN 50155 Class S1, MIL-STD-810H, SAE J1455 |
| Shock and Vibration | MIL-STD-810H, SAE J1455 |
[/specifications]
[accesories]
| Included in the box | 2 x Wi-Fi antennas; 1 x Bluetooth antenna (Device unit) |
| Vehicle LTE Antenna | External LTE antenna required (not included in the box) |
| Optional Antennas | FANT-3IN1-TG-5M-FEV vehicle roof mount antenna |
| Optional Mounting | Vehicle mount brackets |
[/accesories]
Reliable Mobile Connectivity for Mission-Critical Vehicles
The Fortinet FortiExtenderVehicle 211F-AM is a rugged broadband wireless WAN router engineered to deliver secure, resilient connectivity for vehicles and mobile operational environments. Specifically designed for North American carriers, this device combines high-speed 4G LTE CAT-12, integrated Wi-Fi 5, and Fortinet Security Fabric compatibility to keep fleets, first responders, and OT assets connected in the most demanding conditions.
Built to withstand harsh environments, the FEV-211F-AM features an IP64-rated enclosure and supports intelligent dual-SIM failover. It ensures continuous uptime by automatically selecting the best available signal. With centralized management via FortiGate or FortiManager, it offers a seamless extension of enterprise-grade security to the mobile edge.
Key Benefits & Features
- CAT-12 LTE Performance: Delivers rapid mobile connectivity with downlink speeds up to 600 Mbps and uplink up to 150 Mbps, optimized for North American networks.
- Dual-SIM Intelligent Failover: Maximizes reliability by automatically switching between SIM cards based on signal strength, carrier availability, or data limits.
- Integrated Wireless Connectivity: Features 2x2 dual-band Wi-Fi 5 (Wave 2) delivering up to 1200 Mbps, plus Bluetooth 5.0 for connecting local sensors and devices.
- Fortinet Security Fabric Integration: Operates as a native interface within FortiOS, allowing unified management, advanced security policies, and total visibility from a single pane of glass.
- Rugged Vehicle-Grade Design: IP64 dust and water resistance, certified for shock, vibration, and extreme temperatures (SAE J1455, MIL-STD-810H).
Ideal Use Cases
- Fleet management and public transportation Wi-Fi
- Police, fire, and ambulance vehicle connectivity
- Mobile industrial OT and SCADA applications
- Remote field operations and temporary sites
- Secure WAN extension for logistics and asset tracking
Technical Specifications
- Cellular Technology: 4G LTE CAT-12 (EM7511 Modem) with 3G fallback
- SIM Support: Dual Micro-SIM with active/passive failover
- Ethernet Ports: 5x GE RJ45 Ports (1x WAN, 4x LAN)
- Wireless: 802.11ac Wave 2 Wi-Fi and Bluetooth 5.0
- Throughput: 930 Mbps LAN-to-WAN NAT; 120 Mbps IPsec VPN
- Power Input: 7 to 50 V DC (wide-range vehicle input)
- Operating Temperature: -40°C to 70°C (-40°F to 158°F)
- Ingress Protection: IP64 (Dust-tight and splash-resistant)
Deploy Secure Mobile Networking Today
Equip your fleet with the rugged durability and secure performance of Fortinet. Order the FortiExtenderVehicle 211F-AM today to ensure your critical operations stay connected anywhere.
