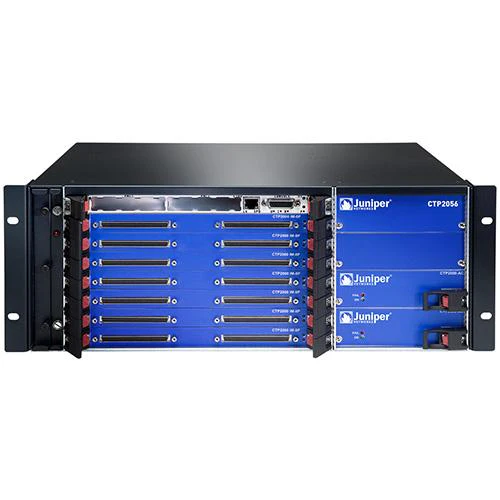

Juniper CTP2056-AC-03 Router
[shortdesc]
- CTP2056 AC chassis includes processor, power supply, CLK main, and 1 GB RAM
[properties]
| Properties | Juniper CTP2056-AC-03 |
| Description | CTP2056 AC base chassis with processor, power supply, CLK main, and 1 GB RAM for Circuit to Packet deployments |
| Product Family | CTP Series |
| Product Type | Router |
| Serial Interfaces | |
| EIA-530, RS-232/V.28, RS-422/V.11, RS-423/V.10, X.21, V.35, T1, E1 | Yes |
| IRIG-B | Yes |
| Encoding NRZ, Conditioned Diphase, Isochronous, Asynchronous, AMI, B8ZS, HDB3, TDM/TDC, Transparent | Yes |
| Interface Quantity | 56 |
| Rates | 50 bps–12.880 Mbps |
| Voice Interfaces | |
| Analog Voice 4-wire TO Interface Quantity | 56 |
| 4WE&M | 48 |
| 2WFXS | 144 |
| 2WFXO | 72 |
| T1 and E1 | 56 |
| Companding Conversion | Yes |
| IP Interfaces | |
| 10/100/1000BASE-T (RJ-45) | 2 |
| SFP 1000BASE-T | 4 |
| SFP 1000BASE-SX | 4 |
| SFP 1000BASE-LX | 4 |
| Precedent Setting (DSCP), Configurable TOS Byte | Yes |
| VLAN Tagging | Yes |
| Virtual IP | Yes |
| Circuit Modes—Symmetric, Asymmetric, Unidirectional, Hairpin | Yes |
| IPv4 and IPv6 | Yes |
| IETF PWE3 RFC SAToP | Yes |
| IETF PWE3 RFC CESoPSN | Yes |
| Layer 2 Serial Aggregation | Yes |
| Port Mirroring | Yes |
| *Software Support Roadmap Item | |
| Dimensions (W x H x D) | 17.25 x 7.0 x 11.75 in. (43.8 x 17.8 x 29.8 cm) |
| Weight | 27 lb |
| Mounting | Front Rack |
| Input Voltage (AC) | 100-240 VAC |
| Power Supply | 250W x 2 |
| Input Current | 2.5 A at 110 VAC |
[/properties]
[specifications]
| Specifications | CTP2056-AC-03 |
| Operating Temperature | 32° to 104° F (0° to 40° C) |
| Humidity | 5%-90% RH noncondensing |
| Platform Features | |
| Software Circuit Provisioning | EIA530, RS-232, V.35, 4WTO, T1, and E1 circuit types are software configured, including line encoding, clocking, rates, and IP settings. |
| Scalable Product Family | A family of four CTP Series Circuit to Packet Platforms provides different port densities for small remote sites through large central network hubs. |
| CTPView Network Management System | Secure, multi-user, web-based network management system provides network monitoring, circuit provisioning, IP performance reporting, database backup, and circuit troubleshooting tools. |
| Multiple System and Circuit Clocking Solutions | CTP Series Circuit to Packet Platforms are designed to use multiple external clocks as monitored and prioritized system references. Circuits are configured to use the system clock, external circuit timing, or adaptively recover clock information from the remote port when required by the application or when no reference is configured. |
| Auto Switch | The status of the CTP Series circuit ports is monitored, and the circuit is automatically switched to an alternate local or remote port when a failure is detected. |
| Packet Protector | Redundant packets are created and transmitted to the IP network and then processed by the receiving CTP Series. |
| Autobaud | The input timing leads are monitored, and the circuit rate is automatically changed at both ends of the network if a rate change is detected. |
| Loops and BERTs | Each CTP Series port supports interface and network loops and the ability to generate and monitor a bit error rate test with up to nine selectable BERT patterns. |
| Layer 2 Serial-to-Ethernet IP Aggregation | The CTP Series can aggregate Layer 2 traffic from serial interfaces onto a Fast Ethernet or Gigabit Ethernet interface. Supported protocols include Frame Relay, PPP, and Cisco-HDLC. Each CTP Series port is connected to a different VLAN. |
| Port Mirroring | The CTP Series can port-mirror any transmit or any receive to up to 10 local or remote destinations. |
| Analog Voice—4WE&M | The CTP Series supports analog 4WE&M Type I, II, and V interfaces with software-selectable transmit and receive-level adjustments per interface. |
| Analog Voice—2WFXS | The CTP Series supports analog 2WFXS loop start, ground start, and PLAR modes with software-selectable transmit and receive-level adjustments per interface. |
| Analog Voice—2WFXO | The CTP Series supports analog 2WFXO loop start and ground start modes with software-selectable transmit and receive-level adjustments per interface. |
| IRIG-B | The CTP Series supports IRIG-B signal transport through an IP network. IRIG-B encodes day of year, hour, minute, and second data on a 1-KHz carrier frequency with an update rate of once per second. |
| Primary Circuit to Packet Solutions | |
| SS7 Transport over IP | Provides transport of dedicated T1 or E1 SS7 links over the IP/MPLS network. |
| TDM over IP Solution | Provisioning of point-to-point TDM trunks over the IP network does not require changes to the TDM equipment. |
| PBX Interconnect over IP Solution | Provides E1 and T1 trunking for PBX interconnection over the IP network. |
| PBX Extension over IP with 2WFXS/2WFXO | Provides two-wire analog PBX-to-phone extensions over IP and two-wire PBX-to-PBX/central office connections over IP. Private-line automatic ringdown (PLAR) is also supported. |
| Leased Line Extension over IP Solution | Supports standards-based encapsulation and DS0 bundling. IETF PWE3 RFCs SAToP and CESoPSN are supported. |
| Radio over IP Solution | Allows connectivity of analog and digital radios over IP networks. |
| Serial Encryption over IP Solution | Provides transport of KG/KIV bit-synchronous cipher text across an IP network. |
| T1 and E1 Backup over IP | Point-to-point T1 or E1 circuits can be automatically backed up over the IP/MPLS network. |
[/specifications]
[accesories]
| Upgrades | |
| CTP-Fiber-PMC | Fiber PMC card for CTP2000 line to support up to 2 SFP modules |
| CTP-SFP-1GE-T | Small form-factor pluggable 1000BASE-T Gigabit Ethernet module (uses Cat 5 cable) |
| CTP-SFP-1GE-SX | Small form-factor pluggable 1000BASE-SX Gigabit Ethernet optic module |
| CTP-SFP-1GE-LX | Small form-factor pluggable 1000BASE-LX Gigabit Ethernet optic module |
| Interface Modules | |
| CTP2000-IM-8P-T1E1 | 8-port T1/E1 RJ48 interface module |
| CTP2000-IM-8P | 8-port serial interface module—EIA530/V.11/RS-422/X.21, RS-232/V.24, V.35 |
| CTP2000-IM-8P-MS | 8-port serial interface module—EIA530/V.11/RS-422/X.21, RS-232/V.24, V.35, 4TWO, HQ Analog, IRIG |
| CTP2000-IM-4WEM | 8-port 4WE&M analog voice module |
| 4WEM-RTM | 8-port 4WE&M rear transition module |
| CTP2000-IM-2WFXS | 24-port 2WFXS analog voice module |
| 2WFXS-RTM | 24-port 2WFXS rear transition module |
| CTP2000-IM-2WFXO | 12-port 2WFXO analog voice module |
| 2WFXO-RTM | 12-port 2WFXO rear transition module |
| Spares | |
| CTP2000-PRC-S | Processor spare |
| CTP2000-RTC-S | Rear transition module spare |
| CTP2000-PWR-R | CTP2024/CTP2056 redundant power supply option |
| CTP2056-REC-RMK | CTP2056 recessed rack mount kit |
| CTP-CBL-4Q | Cable—100 pin to four (4) DB-25 DCE for CTP2000 line |
| CTP-CBL-4Q-DTE | Cable—100 pin to four (4) DB-25 DTE for CTP2000 line |
[/accesories]
Juniper CTP2056-AC-03 Router
Juniper CTP2056-AC-03 is a CTP Series Circuit to Packet platform built for transporting serial, TDM, voice, and timing traffic across IP/MPLS networks. This AC base chassis includes the processor, power supply, CLK main, and 1 GB RAM, and supports a broad mix of serial, analog voice, T1/E1, IRIG-B, and Gigabit Ethernet interfaces for migration of legacy circuit-based services to packet networks. Designed for scalable deployment in environments ranging from remote sites to central hubs, it supports features such as software-based circuit provisioning, clocking flexibility, autobaud, packet protection, VLAN tagging, IPv4/IPv6 transport, and standards-based SAToP and CESoPSN encapsulation for reliable circuit extension over IP.
