• Compact Router with 1 Gigabit Ethernet Port and 2 SFP28 Ports for Data Centers.

[/shortdesc]

[properties]

Ethernet Router	CCR2004-1G-2XS-PCIe
Description	The CCR2004 functions as a PCIe network interface card, equipped with router capabilities, featuring a dual 25 Gigabit Ethernet connection, powered by a quad-core ARMv8 64-bit processor, with 4 GB of memory and 128 MB of onboard storage. Capable of handling speeds up to 100Gbps, it operates on RouterOS for managing network operations.
Product Family	CCR Series
Product Type	Network Interface Card
10/100/1000 Ethernet ports	1
Number of 25G SFP28 ports	2
Features	CPU temperature monitor Current Monitor PCB temperature monitor Voltage Monitor
Max power consumption (without attachments)	22 W
Max power consumption	29 W
Fans	1
Dimensions	170 x 69 x 18 mm

[/properties][specifications]

Specifications	CCR2004-1G-2XS-PCIe
CPU	AL52400
CPU architecture	ARM 64bit
CPU core count	4
CPU nominal frequency	1500 MHz
Size of RAM	4 GB
Storage	128 MB, NAND
Operating system	RouterOS v7 (License level 6)
Operating temperature	-20°C to +60°C
Certification	CE, EAC, ROHS
IP	20

[/specifications][accesories]

Included in package

Small bracket, Large bracket

[/accesories]

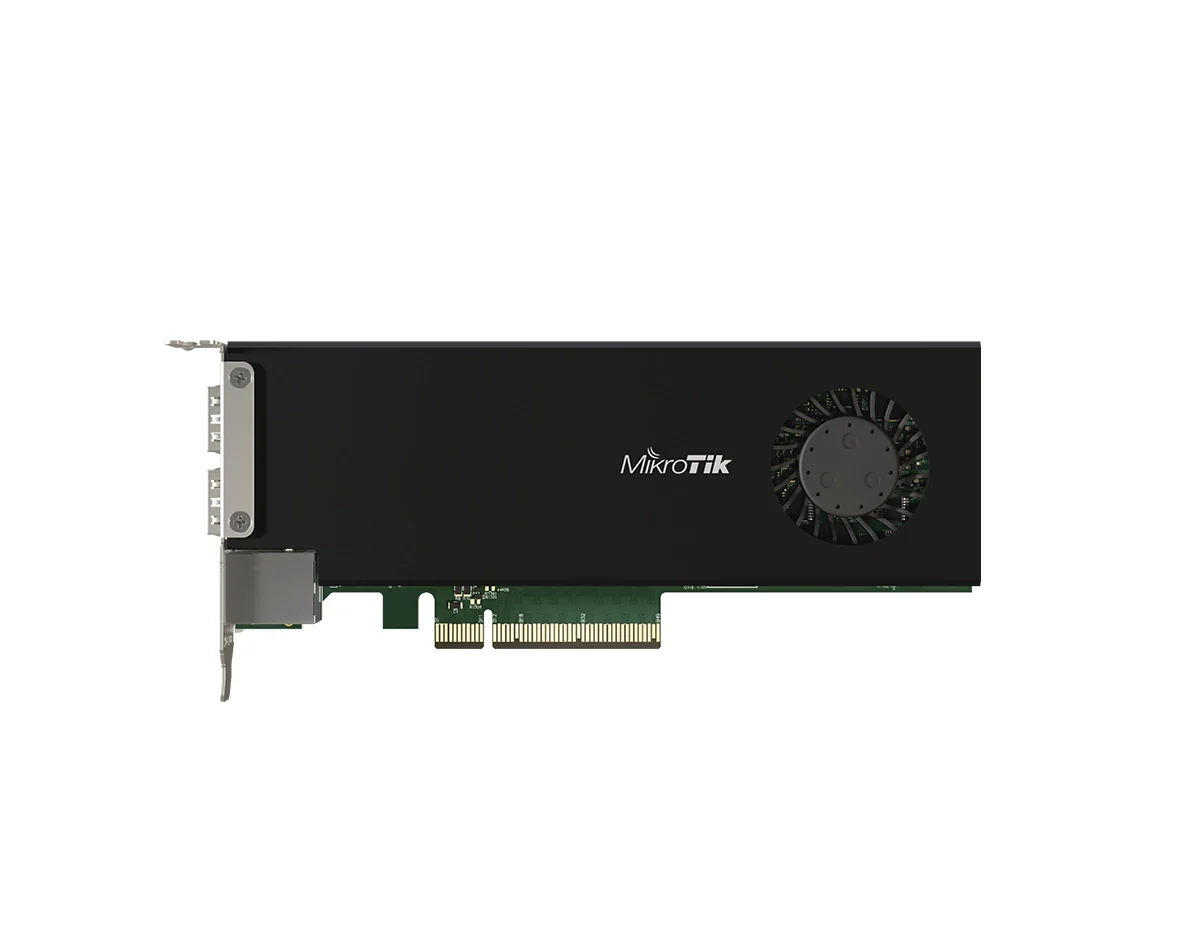

MikroTik CCR2004-1G-2XS-PCIe Router

The CCR2004-1G-2XS-PCIe is a network interface card with comprehensive router functionalities, providing a convenient solution for establishing 25 Gigabit networks. Equipped with 4 GB of RAM, 128 MB of NAND storage, and a robust quad-core ARMv8 64-bit CPU, this device is capable of managing various tasks such as firewalls, user management, access control for home media and file servers, and traffic control in data centers, eliminating the necessity for a separate router.

Quick Specs:

• 1x 10/100/1000 Gigabit Ethernet ports
• 2x 25G SFP28 ports uplink
• AL52400, 4 core, 1500MHz
• 4GB RAM

Please see the related tabs for the CCR2004-1G-2XS-PCIe datasheet and compatible accessories.
