• Managed, Rack-mountable, 8 x 1G PoE+ ports, 2 x 1G SFP Uplinks, PoE+ (130W), Layer 2

 [/shortdesc]

[properties]

Product Name	Cisco CBS220-8FP-E-2G Managed Switch
Product Description	8-port Gigabit Ethernet PoE+ switch with 2 Gigabit SFP uplinks, designed for small businesses requiring reliable and efficient network connectivity.
Compatibility	Cisco Business 220 Series Smart Switches
Ports	8 x 10/100/1000 PoE+ Ethernet, 2 x 1G SFP uplink
Total PoE Power Budget	120W
Layer Support	Layer 2
Switching Capacity	20 Gbps
Forwarding Rate	14.88 Mpps
Rackmountable	Yes, 1U
Energy Efficiency	IEEE 802.3az Energy Efficient Ethernet compliant
Security Features	802.1X authentication, Access Control Lists (ACLs), Port Security

[/properties]
[specifications]

Device Type	Managed PoE+ Switch
Dimensions (W x D x H)	10.6 x 6.7 x 1.7 inches (269 x 170 x 44 mm)
Weight	3.97 lbs (1.8 kg)
Power Supply	External, 100-240V AC, 50-60 Hz
Power Consumption (Max)	150W
PoE Standards Supported	IEEE 802.3af/at
Operating Temperature Range	0°C to 50°C (32°F to 122°F)
Storage Temperature Range	-20°C to 70°C (-4°F to 158°F)
Humidity Range	10% to 90% (non-condensing)
Management Interfaces	Web-based GUI, Command-Line Interface (CLI), SNMP, Cisco Business Dashboard
Layer 2 Features	VLAN, Quality of Service (QoS), Link Aggregation, IGMP Snooping
Uplink Speeds	1 Gbps on SFP ports
Compliance	CE, FCC Part 15 (CFR 47) Class A, UL 60950-1

[/specifications]

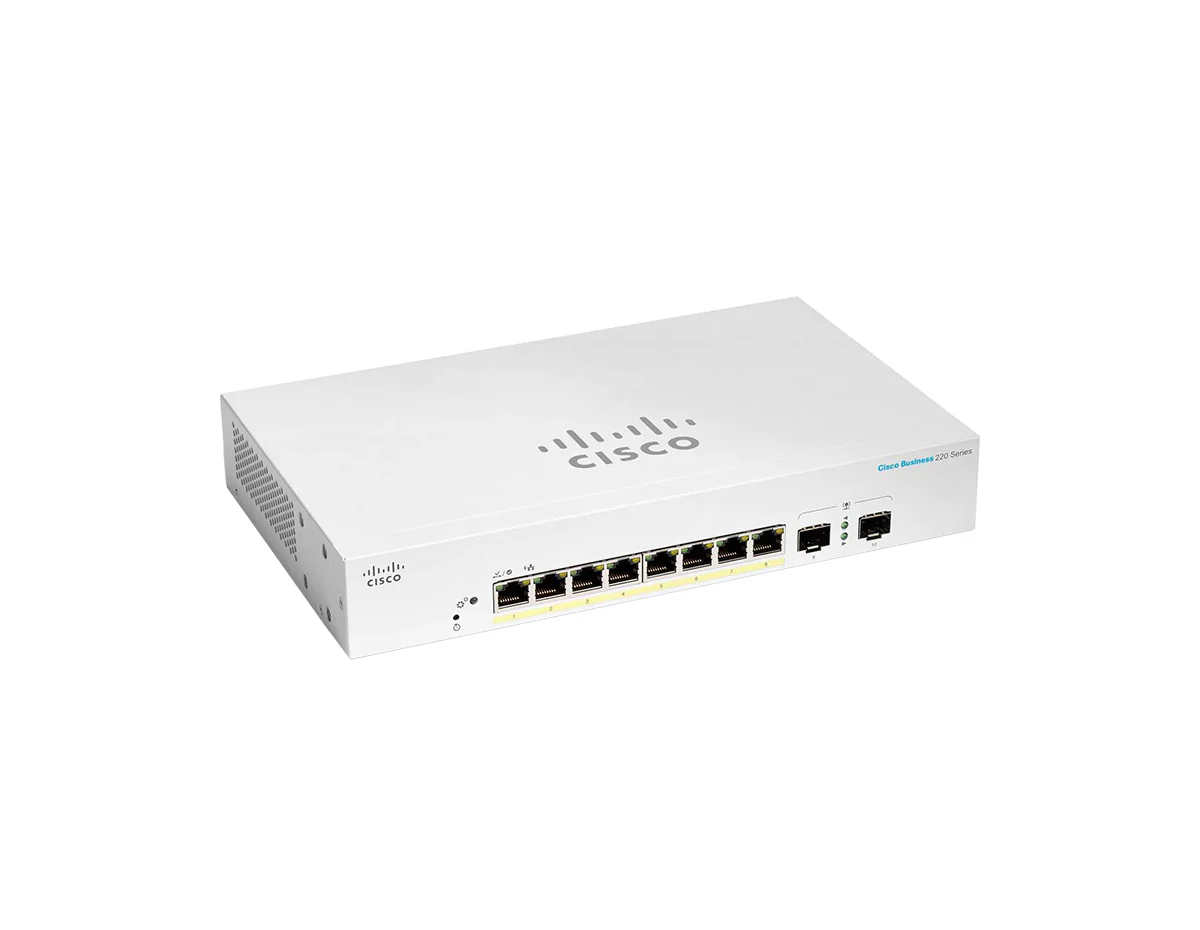

Cisco CBS220-8FP-E-2G Switch

The Cisco CBS220-8FP-E-2G is an 8-port Gigabit Ethernet switch with Power over Ethernet (PoE) capabilities, designed to offer reliable networking for small businesses. With 8 PoE ports and 2 Gigabit SFP uplinks, this smart-managed switch is ideal for deploying and powering devices like IP phones, security cameras, and wireless access points. With a PoE budget of 120W, it provides power and connectivity through a single cable, simplifying network deployments.

Key Features:

• 8 x Gigabit Ethernet PoE Ports: Provides power and connectivity for devices such as IP phones and cameras with a total PoE budget of 120W.
• 2 x Gigabit SFP Uplinks: Ensures seamless high-speed network expansion.
• Energy-Efficient Design: Complies with IEEE 802.3az standards to reduce power consumption during low traffic periods.
• Layer 2 Features: Supports VLANs, QoS, and Link Aggregation for efficient network performance.
• Robust Security: Includes 802.1X authentication, port security, and ACLs for network protection.

Technical Overview:

• Recommended for: Small businesses, retail environments, and branch offices.
• Ports: 8 x 10/100/1000 Ethernet PoE ports, 2 x Gigabit SFP uplinks.
• PoE Power Budget: 120W.
• Switching Capacity: 20 Gbps.
• Forwarding Rate: 14.88 Mpps.
• Energy Efficiency: Supports IEEE 802.3az standards for energy savings.

You can check the related tab for the CBS220-8FP-E-2G datasheet.
