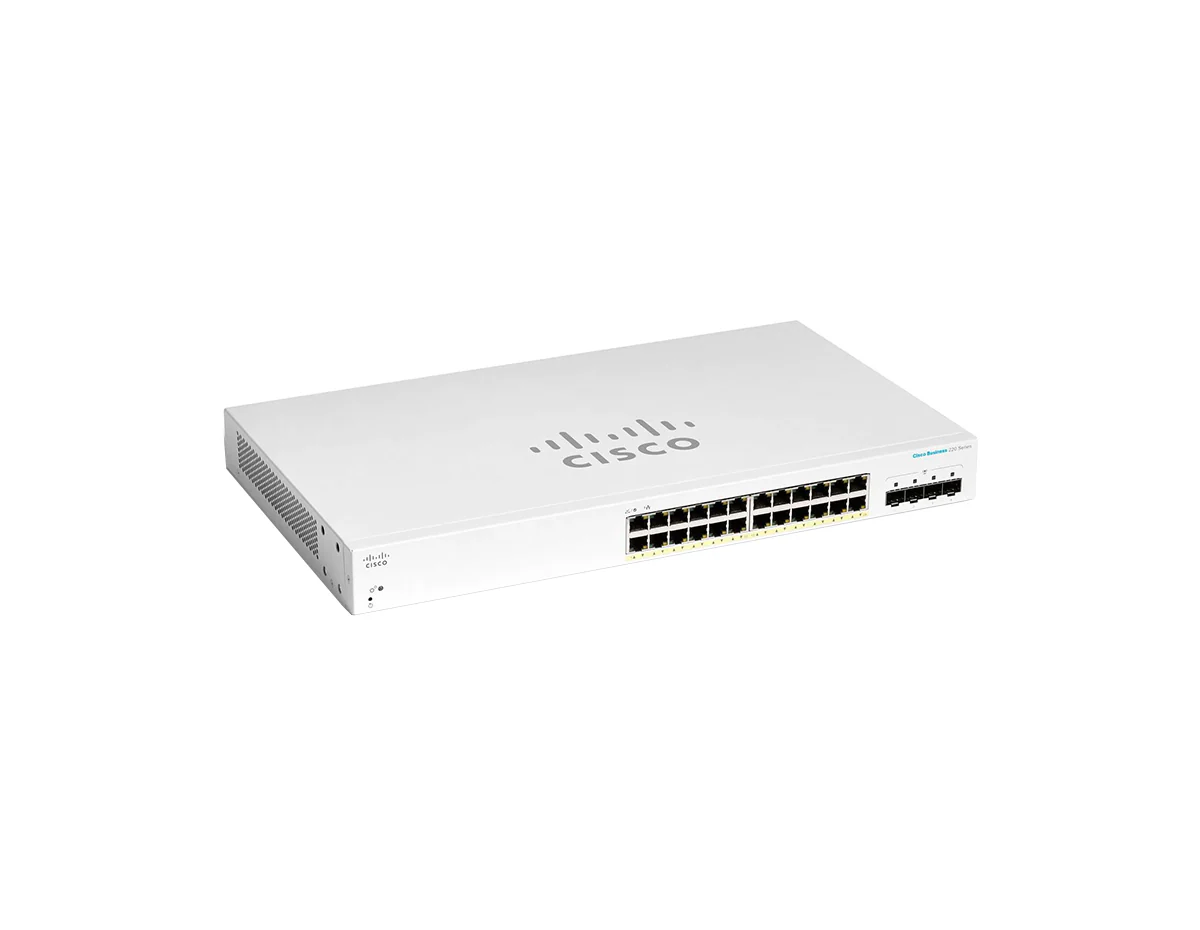

Cisco CBS220-24FP-4G Switch
[shortdesc]
- Managed, Rack-mountable, 24 x 1G PoE+ ports, 4 x 1G SFP Uplinks, PoE+ (382W), Layer 2
[/shortdesc]
[properties]
| Properties | CBS220-24FP-4G |
| Description | 24 10/100/1000 ports with 382W power budget 4 Gigabit SFP |
| Product Family | CBS 220 Series |
| Product Type | Small Business Switch |
| Number of Ports | 28 |
| RJ-45 ports | 24 Gigabit Ethernet |
| Downlinks total 10/100/1000 ports | 24 |
| Power dedicated to PoE | 382W |
| Number of ports that support PoE | 24 |
| Power | 100 to 240V 50 to 60 Hz, internal, universal |
| Fans | 2 |
| Unit dimensions in. (WĀ x D x H) | 17.3 x 10.1 x 1.7 |
[/properties][specifications]
| Specifications | CBS220-24FP-4G |
| Forwarding rate in millions | 41.66 mpps |
| of packets per second | |
| Switching capacity | 56.0 Gbps |
| Flash Memory | 64 MB |
| CPU Memory | 256 MB |
| Packet Buffer | 4.1 MB |
| MAC addresses | 8K |
| Jumbo frame | Up to 9,216 supported |
| Head-of-line (HOL) blocking | HOL blocking prevention |
| Quality of Service (QoS) |
802.1p VLAN priority based, 8 hardware queues per port, priority queuing and Weighted Round-Robin (WRR)
|
| Loop detection |
Loopback detection provides protection against loops by transmitting loop protocol packets out of ports on which loop protection has been enabled. It operates independently of STP.
|
| Media-dependent interface |
Automatic Media Dependent Interface (MDI) and MDI crossover (MDI-X)
|
| Standards |
IEEE 802.3 10BASE-T Ethernet, IEEE 802.3u 100BASE-TX Fast Ethernet, IEEE 802.3ab
|
| 1000BASE-T Gigabit Ethernet, IEEE 802.3ad LACP, IEEE 802.3z Gigabit Ethernet, IEEE | |
| 802.3x Flow Control, IEEE 802.1D (STP, GARP, and GVRP), IEEE 802.1Q/p VLAN, IEEE | |
| 802.1w RSTP, IEEE 802.1s Multiple STP, IEEE 802.1X Port Access Authentication, IEEE | |
| 802.3af, IEEE 802.3at, RFC 768, Request for Comments (RFC) 783, RFC 791, RFC 792, RFC | |
| 793, RFC 813, RFC 879, RFC 896, RFC 826, RFC 854, RFC 855, RFC 856, RFC 858, RFC 894, | |
| RFC 919, RFC 922, RFC 920, RFC 950, RFC 1042, RFC 1071, RFC 1123, RFC 1141, RFC 1155, | |
| RFC 1157, RFC | |
| 1350, RFC 1533, RFC 1541, RFC 1624, RFC 1700, RFC 1867, RFC 2030, RFC 2616, RFC | |
| 2131, RFC 2132, RFC 3164, RFC 3411, RFC 3412, RFC 3413, RFC 3414, RFC 3415, RFC | |
| 2576, RFC 4330, RFC 1213, RFC 1215, RFC 1286, RFC 1442, RFC 1451, RFC 1493, RFC | |
| 1573, RFC 1643, RFC 1757, RFC 1907, RFC 2011, RFC 2012, RFC 2013, RFC 2233, RFC | |
| 2618, RFC 2665, RFC 2666, RFC 2674, RFC 2737, RFC 2819, RFC 2863, RFC 1157, RFC | |
| 1493, RFC 1215, RFC 3416 | |
| Operating Temperature | 0-50Ā° C |
| Operating humidity | 10% to 90%, relative, noncondensing |
| Compliance/certifications | UL (UL 60950), CSA (CSA 22.2), CE mark, FCC Part 15 (CFR 47) Class A, C-tick |
[/specifications][accesories]
| Accessories | There is no additional accessories other than the power supply and the mounting kit which are included with the device package. |
| Package contents |
ā Cisco Business 220 Series Smart Switch
ā Power cord or adaptor ā Quick start guide ā Mounting kit |
[/accesories]Ā
Cisco CBS220-24FP-4G Switch
The Cisco CBS220-24FP-4G is a managed 24-port Gigabit Ethernet switch with full Power over Ethernet (PoE) capabilities and 4 Gigabit SFP uplinks. This switch is ideal for small to medium-sized businesses needing high-speed connectivity and power for network devices such as IP phones, cameras, and wireless access points. With a PoE budget of 195W, the CBS220-24FP-4G allows for seamless deployment and scaling of network devices while ensuring efficient performance and robust security.
Key Features:
- 24 x Gigabit PoE Ports: Provides power and connectivity to devices like IP phones and cameras with a total PoE budget of 195W.
- 4 x Gigabit SFP Uplink Ports: Offers high-speed uplinks for seamless network expansion.
- Advanced Layer 2 Features: Includes VLAN support, QoS, and Link Aggregation for enhanced network management.
- Energy-Efficient Design: Complies with IEEE 802.3az standards to reduce power consumption during low traffic periods.
- Comprehensive Security: Supports 802.1X authentication, ACLs, and port security to protect your network from unauthorized access.
Technical Overview:
- Recommended for: Small to medium-sized businesses, retail environments, and branch offices.
- Ports: 24 x 10/100/1000 PoE Ethernet ports, 4 x 1G SFP uplinks.
- PoE Power Budget: 195W.
- Switching Capacity: 56 Gbps.
- Forwarding Rate: 41.66 Mpps.
- Energy Efficiency: Supports IEEE 802.3az standards for energy savings.
You can check the related tab for the CBS220-24FP-4G datasheet.
