[properties]

Properties	Cisco C8300-2N2S-6T Edge Platform
Description	C8300-2N2S-6T is a 2RU platform with 2 SM and 2 NIM slots plus 6 x 1Gbps embedded Layer3 Ethernet ports
Product Family	Cisco Catalyst 8300 Series
Product Type	Router

[/properties] [specifications]

Specification	Cisco C8300-2N2S-6T Edge Platform
1G port density	6
Slots	2 SM 2 NIM 1 PIM
Memory (DRAM) default	8 GB
Storage (M.2 SSD) default	16 GB
SD-WAN Ipsec Throughput (1400Bytes)	Up to 2Gbps
SD-WAN IPsec Throughput with IQDF (1400Bytes) (IQDF traffic pattern: IPSec + Quality of Service (QoS) + Deep Packet Inspection (DPI) + Flexible Netflow (FNF))	Up to 2Gbps
SD-WAN IPsec Throughput (IMIX - IMIX is average packet size of 352 Bytes packet size )	1.8Gbps
SD-WAN IPsec Throughput with IQDF (IQDF traffic pattern: IPSec + Quality of Service (QoS) + Deep Packet Inspection (DPI) + Flexible Netflow (FNF)) (IMIX- IMIX is average packet size of 352 Bytes packet size)	1.7Gbps
SD-WAN Overlay Tunnels scale	6000
Cisco Catalyst 8300 Series SD-WAN, Multi-layer security performance use cases
50% IQDF* + 50% (DIA w. NAT + NGFW + IPS + URLF + AMP) *Tested with IOS XE release 17.12.2. All NGFW + UTD tests with Firewall EMIX traffic profile	2.8Gbps
DIA w. NAT + NGFW + IPS + URLF + AMP	2.3Gbps

[/specifications] [accesories] [/accesories]

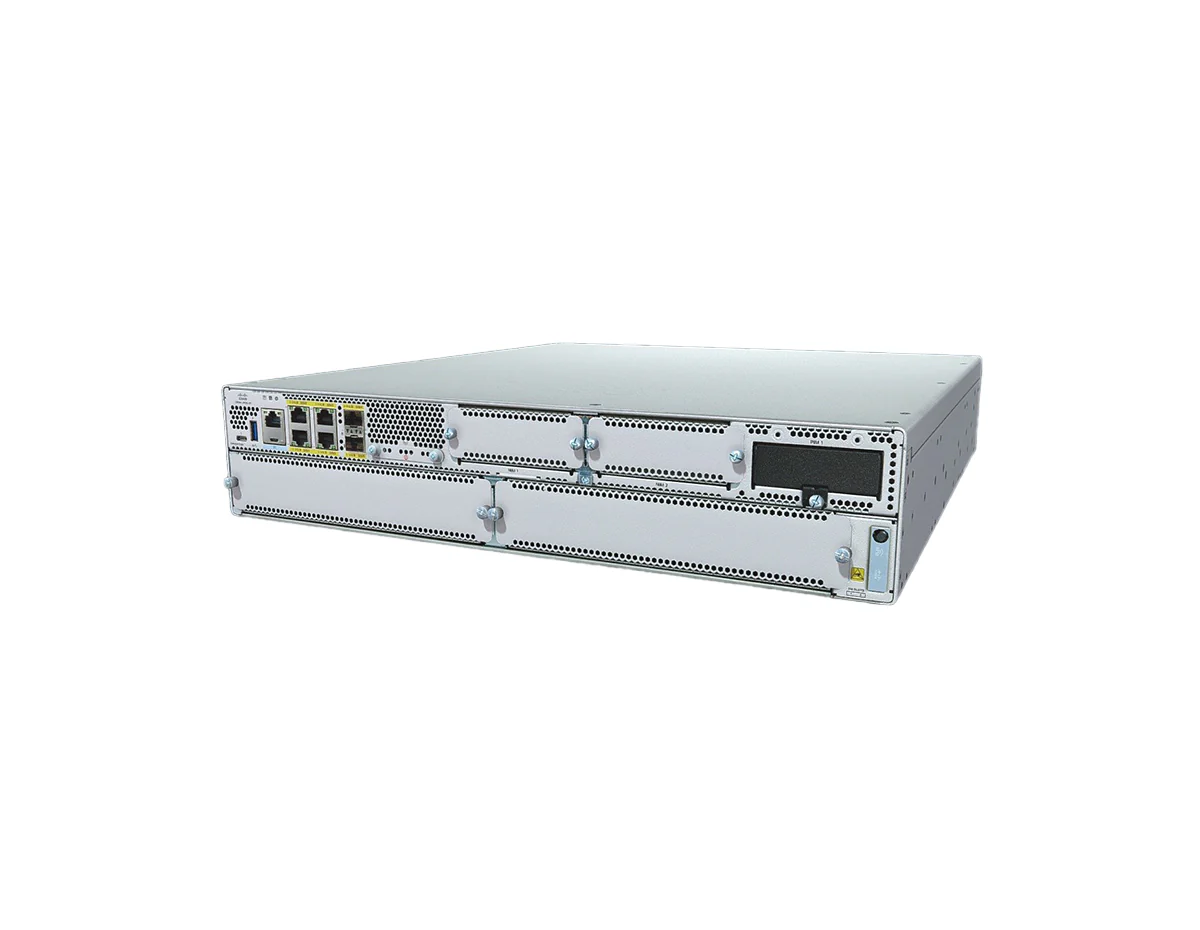

The Cisco C8300-2N2S-6T is a cloud-edge platform from the Catalyst C8300 Edge Platform Series. It is 5G-ready and has a dynamic core allocation architecture, which enables you to choose between a service-oriented or a data plane-heavy architecture to maximize the platform's performance. It offers accelerated services with Cisco SD-WAN, multilayer security, application visibility, and cloud-native agility with a programmable software architecture.

Quick Specs:

• 2RU
• 6 x 1G ports
• 2 SM + 2 NIM + 1 PIM slots
• SD-WAN IPsec Throughput: 2 Gbps

Please check the related tabs for the C8300-2N2S-6T datasheet and its compatible accessories.
