[properties]

Properties	Cisco C8300-2N2S-4T2X Edge Platform
Description	C8300-2N2S-4T2X is a 2RU platform with 2 SM and 2 NIM slots plus 2 x 10Gbps and 4 x 1Gbps embedded Layer3 Ethernet ports
Product Family	Cisco Catalyst 8300 Series
Product Type	Router

[/properties] [specifications]

Specification	Cisco C8300-2N2S-4T2X Edge Platform
10G port density	2
1G port density	4
Slots	2 SM 2 NIM 1 PIM
Memory (DRAM) default	8 GB
Storage (M.2 SSD) default	16 GB
SD-WAN Ipsec Throughput (1400Bytes)	Up to 18.8Gbps
SD-WAN IPsec Throughput with IQDF (1400Bytes) (IQDF traffic pattern: IPSec + Quality of Service (QoS) + Deep Packet Inspection (DPI) + Flexible Netflow (FNF))	Up to 18.8Gbps
SD-WAN IPsec Throughput (IMIX - IMIX is average packet size of 352 Bytes packet size )	7.6Gbps
SD-WAN IPsec Throughput with IQDF (IQDF traffic pattern: IPSec + Quality of Service (QoS) + Deep Packet Inspection (DPI) + Flexible Netflow (FNF)) (IMIX- IMIX is average packet size of 352 Bytes packet size)	5.6Gbps
SD-WAN Overlay Tunnels scale	6000
Cisco Catalyst 8300 Series SD-WAN, Multi-layer security performance use cases
50% IQDF* + 50% (DIA w. NAT + NGFW + IPS + URLF + AMP) *Tested with IOS XE release 17.12.2. All NGFW + UTD tests with Firewall EMIX traffic profile	5.9Gbps
DIA w. NAT + NGFW + IPS + URLF + AMP	4.9Gbps

[/specifications] [accesories] [/accesories]

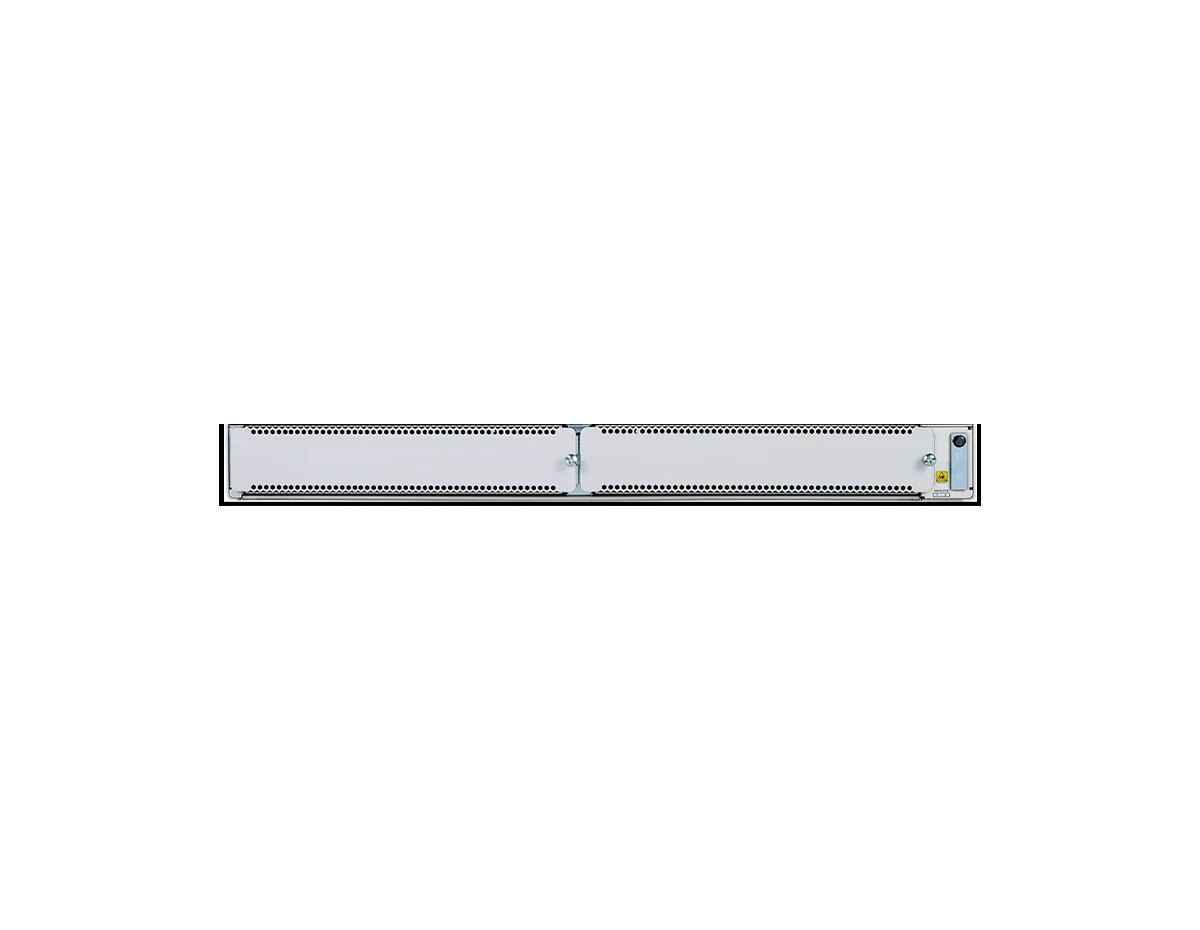

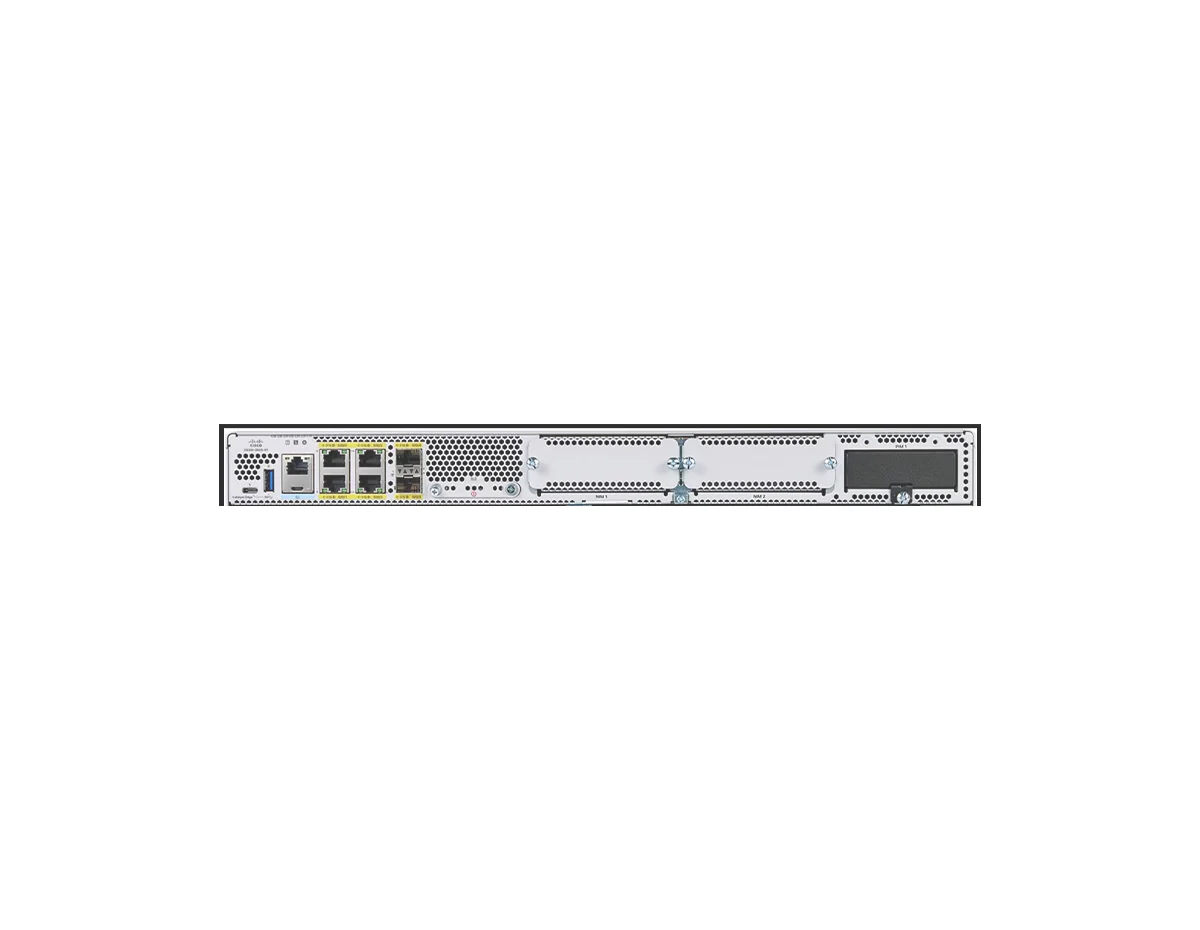

Cisco C8300-2N2S-4T2X Edge Platform

The Cisco Catalyst 8300 Series Edge Platforms are ideal for medium and large enterprise branch offices. They are 5G-ready cloud-edge platforms that offer multi-layer security, accelerated services, and cloud-native agility. The C8300-2N2S-4T2X has an Intel x86 CPU with 8GB of default DRAM, which can be upgraded to 32 GB for a higher scale. With Dynamic core allocation architecture, you can tailor your device’s multicore resources to your needs.

Quick Specs:

• 2RU
• 2 x 10G ports
• 4 x 1G ports
• 2 SM + 2 NIM + 1 PIM slots
• SD-WAN IPsec Throughput: 18.8 Gbps

Please check the related tabs for the C8300-2N2S-4T2X datasheet and its compatible accessories.
