[shortdesc]

• Security appliance
• 8 ports
• GigE
• 1U
• Rack-mountable

[/shortdesc]

[properties]

Properties	ASA5508-K9
Product Family	Cisco ASA 5500 / ASA 5500-X Series
Product Type	Firewalls
Throughput: FW + AVC (1024B)	450 Mbps
Throughput: FW + AVC + Intrusion Prevention System (IPS) (1024B)	250 Mbps
Throughput: FW + AVC (450B)	175 Mbps
Throughput: FW + AVC + Intrusion Prevention System (IPS) (450B)	125 Mbps
Maximum concurrent sessions, with AVC	100K
Maximum new connections per second, with AVC	7.5K
Transport Layer Security (TLS)	250 Mbps
Throughput: IPS (1024B)	250 Mbps
Throughput: IPS (450B)	125 Mbps
IPSec VPN throughput (1024B TCP w/Fastpath)	175 Mbps
Cisco Device Manager (local management)	Yes
Centralized management	Centralized configuration, logging, monitoring, and reporting are performed by the Management Center or alternatively in the cloud with Cisco Defense Orchestrator
Cisco Security Intelligence	Standard, with IP, URL, and DNS threat intelligence
URL filtering: number of categories	More than 80
URL filtering: number of URLs categorized	More than 280 million
Dimensions in. (H x W x D)	2.72 x 9.05 x 9.05
Form factor (rack units)	1 RU, 19-in. rack- mountable
Integrated I/O	4 x 1GE
Expansion I/O	N/A
Expansion Slot	N/A
Dedicated Management Port	Yes (Shared)
Serial Ports	1 RJ-45 and Mini USB console
Solid State Drive	50 GB mSata tested for heat
USB 2.0 ports	USB port type A, High Speed 2.0
AC normal line voltage	90 to 240 VAC
Dual-power supplies	None
Form factor	Desktop, rack mountable, wall mountable, DIN-Rail

[/properties][specifications]

Specifications	ASA5508-K9
Stateful inspection firewall throughput	1 Gbps
Stateful inspection firewall throughput (multiprotocol)	500 Mbps
Concurrent Connections	100K
New connections per second	10K
IPSec VPN Throughput (450B UDP L2L test)	175 Mbps
Security Contexts (Included/ Maximum)	2; 5
Operating Temperature	-4 to 140°F (-20 to 60 °C)
Regulatory compliance	Products comply with CE markings per directives 2004/108/EC and 2006/108/EC
Safety	UL 60950-1 CAN/CSA-C22.2 No. 60950-1 EN 60950-1 IEC 60950-1 AS/NZS 60950-1 GB4943
EMC: Emissions	47CFR Part 15 (CFR 47) Class A (FCC Class A) AS/NZS CISPR22 Class A CISPR22 CLASS A EN55022 Class A ICES003 Class A VCCI Class A EN61000-3-2 EN61000-3-3 KN22 Class A CNS13438 Class A EN300386 TCVN7189
EMC: Immunity	EN55024 CISPR24 EN300386 KN24 TVCN 7317 EN-61000-4-2, EN-61000-4-3, EN-61000-4-4, EN-61000-4-5, EN-61000-4-6, EN-61000-4-8, EN61000-4-11

[/specifications]

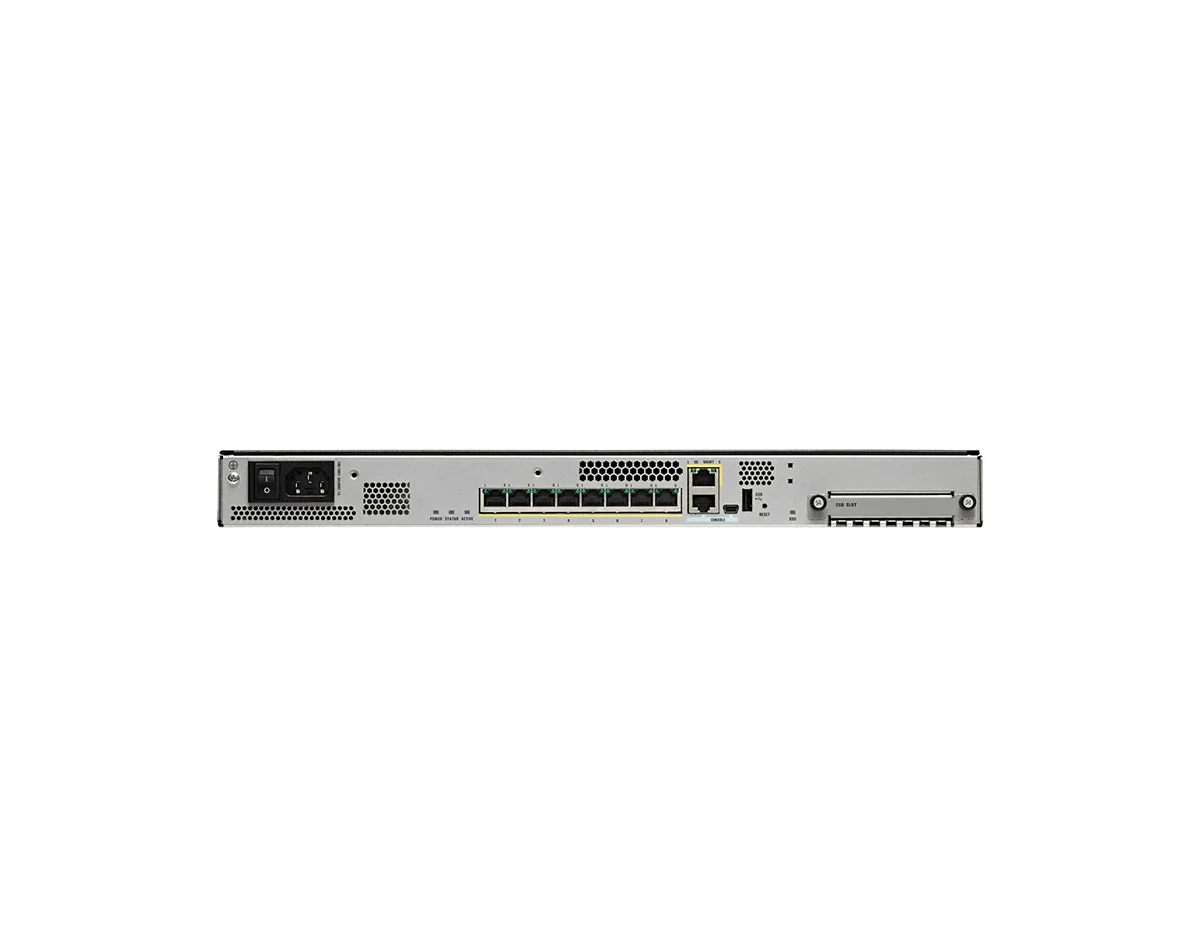

Cisco ASA5508-K9 Firewall

The Cisco ASA 5500 Series Adaptive Security Appliances offer an extensive range of security services geared towards small and medium-sized businesses (SMBs), enterprises, and service providers. The Cisco ASA5508 firewall is a crucial part of the Cisco Self-Defending Network, providing intelligent threat defense, application and network activity control, and secure connectivity.

Key Features:

• 8 GB Memory
• 8 GE interfaces
• 1RU

The tabs contain the Cisco ASA5508-K9 datasheet with all the specifics you need.
