[shortdesc]

• Security appliance
• 8 ports
• GigE
• Desktop

[/shortdesc]
[properties]

Properties	ASA5506-K9
Description	Cisco ASA5506-K9, designed for small or mid-size enterprise or branch offices, is one of the Cisco ASA 5500-X Next-generation series firewalls with Firepower services.
Product Family	Cisco ASA 5500 Series Next Generation Firewalls
Product Type	Firewall
Interfaces	8 x 1 Gigabit Ethernet interface,1 management port
Stateful inspection throughput (multiprotocol)	300 Mbps
Maximum 3DES/AES VPN throughput	100 Mbps
IPsec site-to-site VPN peers	10; 50 with Security Plus license
Virtual interfaces (VLANs)	5; 30 with Security Plus license
Memory	4GB
Flash	8GB
Power (AC or DC)	AC only
Height (rack units)	Desk Top
Dimensions (D x H x W)	9.23 in x 1.72 in x 7.871 in
Package Weight	3.78 Kg
Recommended licenses for ASA5506-K9	L-ASA5506-SEC-PL= : Cisco ASA5506 Security Plus license w/ HA, DMZ, VLAN trunk, more conns. L-ASA5506-TAMC-3Y: Cisco ASA5506 FirePOWER IPS, AVC, AMP, and URL 3YR Subs L-ASA-SSL-25: ASA 5500 SSL VPN 25 Premium User License
Interfaces	8 x 1 GE
Stateful Inspection Throughput (multiprotocol)	300 Mbps
Maximum 3DES/AES VPN Throughput	100 Mbps
Memory	4GB
Flash	8GB
Height (rack units)	Desk Top

[/properties] [specifications]

Specifications
Type	Cisco ASA 5506-X w/ FirePOWER Services
Throughput: Application Control (AVC)	250 Mbps
Throughput: Application Control (AVC) and IPS	125 Mbps
Maximum concurrent sessions	20,000; 50000
Maximum New Connections per second	5,000
Supported applications	More than 3,000
URL categories	(80+)
Number of URLs categorized	More than 280 million
Centralized configuration, logging, monitoring, and reporting	Multi-device Cisco Security Manager (CSM) and Cisco Firepower Management Center
On-Device Management	ASDM (version 7.3 or higher required)
Feature	Cisco ASA 5506-X w/ FirePOWER Services
Stateful inspection throughput (maximum1)	750 Mbps
Stateful inspection throughput (multiprotocol2)	300 Mbps
Triple Data Encryption Standard/ Advanced Encryption Standard (3DES/AES) VPN throughput3	100 Mbps
Users/nodes	Unlimited
IPsec site-to-site VPN peers	10; 50
Cisco AnyConnect Plus/Apex VPN maximum simultaneous connections5	50
Virtual interfaces (VLANs)	5; 30
Security contexts5(included; maximum)	N/A
High availability	Requires Security Plus License; Active/ Standby
Integrated Wireless Access Point (See Cisco AP 702 datasheet for WiFi technical details)	N/A
Expansion slot	N/A
User-accessible Flash slot	No
USB 2.0 ports	USB port type ‘A’, High Speed 2.0
Integrated I/O	8 x 1 Gigabit Ethernet (GE)
Expansion I/O	N/A
Dedicated management port	Yes (To be shared with FirePOWER Services), 10/100/1000
Serial ports	1 RJ-45 and Mini USB console
Solid-state drive	50 GB mSata
Memory	4 GB
System flash	8 GB
System bus	Multibus architecture
Temperature	32 to 104°F (0 to 40 °C)
Relative humidity	90 percent noncondensing
Altitude	Designed and tested for 0 to 10,000 ft (3048 m)
Acoustic noise	Fanless 0 dBA
Temperature	(-13 to 158ºF (-25 to 70ºC))
Relative humidity	10 to 90 percent noncondensing
Altitude	Designed and tested for 0 to 15,000 ft (4572 m)
AC range line voltage	External, 90 to 240 volts alternating current (VAC)
AC normal line voltage	90 to 240 VAC
AC current	N/A
AC frequency	50/60 Hz
Dual-power supplies	None
DC domestic line voltage	N/A
DC current	N/A
Steady state	12V @2.5A
Maximum peak	12V @ 5A
Maximum heat dissipation	103 British thermal units (Btu)/hr
Form factor	Desktop, rack mountable
Dimensions (H x W x D)	1.72 x 7.871 x 9.23 in. (4.369 x 19.992 x 23.444 cm)
Weight (with AC power supply)	4 lb (1.82 kg)

[/specifications] [accesories] [/accesories]

Cisco ASA5506-K9 Firewall for Integrated Threat Defense

Cisco ASA5506-K9 Firewall delivers integrated threat defense for the entire attack continuum - before, during, and after an attack. It can provide the needed scale and context in a NGFW solution.

Cisco ASA with FirePOWER Services offers solid threat-focused next-generation security services to the Cisco ASA 5500-X Series Next-Generation Firewalls. Cisco ASA5506-K9 Firewall is one of those firewalls.

Key Benefits of Cisco ASA5506-K9 Firewall

Cisco ASA5506-K9 Firewall provides comprehensive protection from known and advanced threats, including protection against targeted and persistent malware attacks. This firewall is the world's most widely deployed, enterprise-class firewall.

Manufacturer Part Number	ASA5506-K9
Interfaces	8 x 1 Gigabit Ethernet interface,1 management port
Stateful Inspection Throughput (multiprotocol)	300 Mbps
Maximum 3DES/AES VPN throughput	100 Mbps
IPsec site-to-site VPN peers	10; 50 with Security Plus license
Virtual Interfaces (VLANs)	5; 30 with Security Plus license
Memory	4GB
Flash	8GB
Power (AC or DC)	AC only
Dimensions (D x H x W)	9.23 in x 1.72 in x 7.871 in
Weight	8.3 Lb (3.78 Kg)

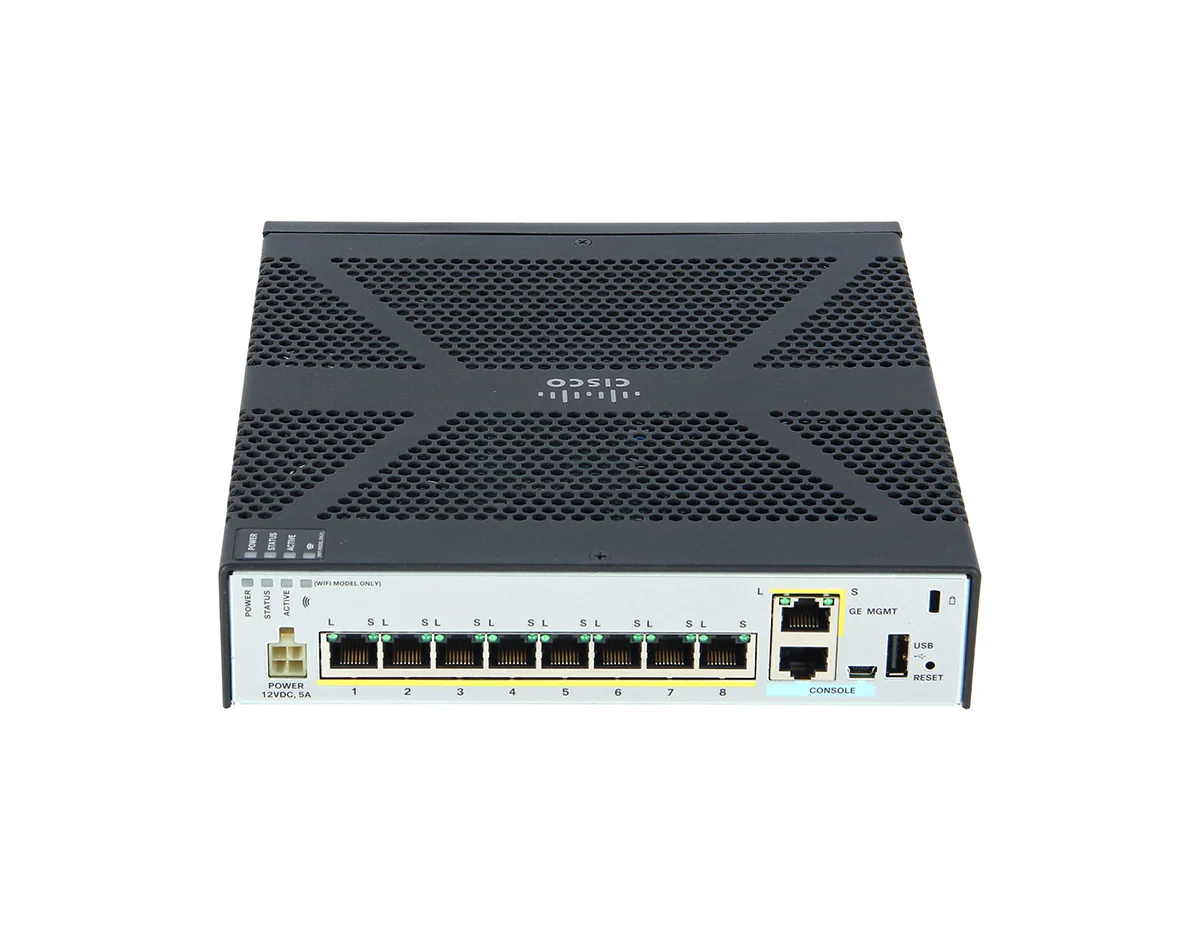

Image below shows the front panel of ASA5506-K9

Image below shows the back panel of ASA5506-K9
