[shortdesc]8 MP outdoor-ready barebone box camera with 1/1.8” sensor, Lightfinder 2.0, Forensic WDR, deep-learning analytics, and robust IP66/IP67/IK10 protection.[/shortdesc]

[properties]

Model	AXIS P1388-BE Box Camera (02904-001)
Product Type	Box camera (barebone)
Image Sensor	1/1.8” progressive scan RGB CMOS
Minimum Illumination	Color: 0.13 lux (F1.5); B/W: 0.03 lux (F1.5); with F0.9 lens: Color 0.05 lux, B/W 0.011 lux
WDR	Forensic WDR up to 120 dB
Power	PoE IEEE 802.3af/at Class 4; 10–28 V DC
Operating Temperature	–40 °C to 60 °C (–40 °F to 140 °F)
Storage Temperature	–40 °C to 65 °C (–40 °F to 149 °F)
Humidity	10–100% RH (condensing)
Casing	IP66/IP67, IK10, NEMA 4X; aluminum & plastic with anti-glare weathershield
Weight	2200 g (4.9 lb)
Interfaces	RJ45, RS485/RS422, audio in, I/O, DC input, i-CS lens connector
Storage	microSD/microSDHC/microSDXC with AES-XTS encryption
Certifications	UL, CE, UKCA, FCC Class A, EN 55032 Class A, IP66/IP67, IK10, ETSI EN 303 645

[/properties]

[specifications]

Image Sensor	1/1.8” progressive scan RGB CMOS; pixel size 2.0 µm
Lens	No lens included; i-CS mount (P-Iris & DC-iris supported)
Day/Night	Automatic removable IR-cut filter
Minimum Illumination	4K 25/30 fps WDR: Color 0.13 lux, B/W 0.03 lux (F1.5); 4K 50/60 fps no WDR: Color 0.3 lux, B/W 0.06 lux (F1.5); With F0.9 lens: Color 0.05 lux, B/W 0.011 lux
Shutter Speed	1/66500 s to 2 s (50/60 Hz)
SoC	ARTPEC-8 with Deep Learning Processing Unit
Video Compression	H.264, H.265, Motion JPEG
Resolution	3840×2160 to 160×90
Frame Rate	Up to 25/30 fps with WDR; up to 50/60 fps without WDR
Video Features	Zipstream, low latency mode, VBR/ABR/MBR, up to 20 streams, multi-view (8 areas), >55 dB SNR
Image Settings	Contrast, brightness, sharpness, WB, tone mapping, exposure zones, defogging, barrel distortion correction, rotation incl. corridor mode, mirroring, overlays, privacy masks, polygon privacy mask
Audio	AGC; external mic/line in; optional mic power; duplex streaming; LPCM, AAC-LC, G.711, G.726, Opus
Networking	IPv4/IPv6, HTTPS, HTTP/2, TLS, FTP/SFTP, SNMP, QoS, NTP/PTP/NTS, RTSP/RTP/SRTP, DHCP, MQTT, IEEE 802.1X, IEEE 802.1AR
System Integration	VAPIX, ACAP, ONVIF G/M/S/T, cloud connection
Analytics	AXIS Object Analytics (humans, vehicles, vehicle types), up to 10 scenarios; Scene Metadata; Image Health Analytics; Live Privacy Shield
Event Conditions	Audio detection, temperature, IP change, network lost, storage events, I/O, MQTT, bitrate degradation, tampering
Event Actions	Clip playback, overlays, recording, SNMP traps, notifications, WDR mode, LED flash
Cybersecurity	Secure boot, signed OS, Edge Vault, secure element (CC EAL 6+), signed video, device ID
Environmental	IP66/IP67, IK10, NEMA 4X, IEC 60068 (temp, vibration, shock), wind load 55 m/s (123 mph)
Connectors	RJ45 PoE; 6-pin I/O; 3.5 mm audio in; RS485/RS422; DC-input; i-CS connector; AXIS T92G20
Power	PoE IEEE 802.3af/at Class 4 (typ 5.61 W, max 25.5 W); 10–28 V DC (typ 4.99 W, max 25.5 W)
Operating Conditions	–40 °C to 60 °C (–40 °F to 140 °F) Humidity 10–100% RH (condensing) Wind load (sustained): 55 m/s (123 mph)
Storage Conditions	-40 °C to 65 °C (-40 °F to 149 °F) Humidity 5–95% RH (non-condensing)
Weight	2200 g (4.9 lb)

[/specifications]

[accesories]

Included	Camera, installation guide, terminal block connectors, owner authentication key
Optional accessories	AXIS Microphones, AXIS Midspans, AXIS CS mount lenses, AXIS T8415 Wireless Installation Tool, AXIS Surveillance Cards

[/accesories]

High-Performance 8 MP Barebone Camera for Custom Surveillance Builds

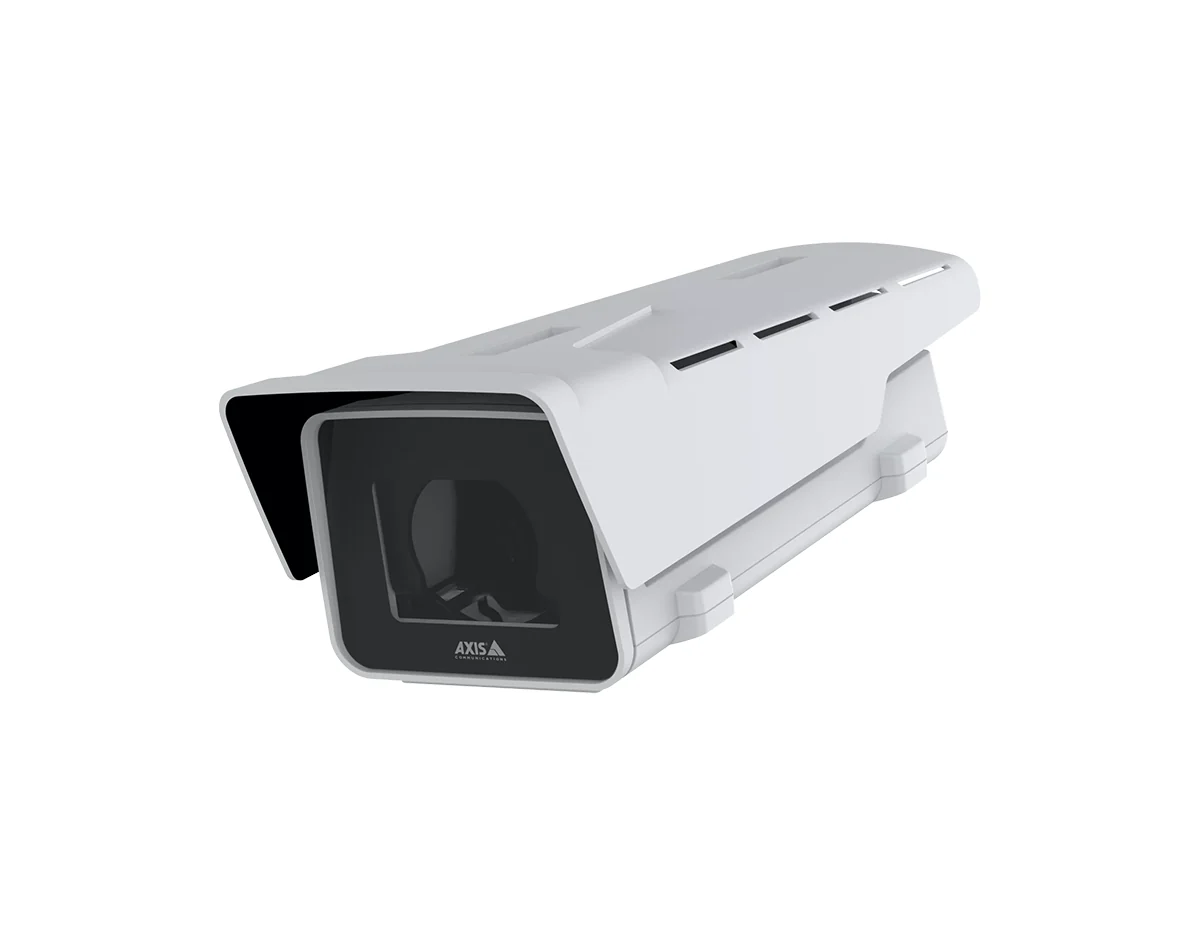

The AXIS P1388-BE is an outdoor-ready, high-resolution barebone box camera designed for maximum customization. Equipped with a 1/1.8” sensor, Forensic WDR, and Lightfinder 2.0, it delivers exceptional 4K clarity even in low-light and high-contrast scenes. Its deep learning processing unit supports advanced edge analytics for intelligent event detection.

Built for demanding environments, it offers IP66/IP67 weather protection, IK10 impact resistance, and a secure hardware foundation powered by Axis Edge Vault. This flexible, lens-free design allows integrators to pair the camera with the exact optics needed for unique deployment scenarios.

Key Benefits

• High-detail 8 MP 4K imaging with 1/1.8” sensor for excellent clarity in all light conditions.
• Lightfinder 2.0 and Forensic WDR ensure usable, low-noise video in challenging environments.
• Deep-learning analytics, including human/vehicle classification and customizable scenarios.
• Secure hardware design with Axis Edge Vault and secure boot for advanced cybersecurity.
• Rugged outdoor performance with IP66/67, IK10, NEMA 4X ratings, and wind resistance up to 55 m/s.
• Flexible barebone design with i-CS mount for any compatible CS lens and customizable setup.

Ideal Use Cases

• Perimeter security for industrial, critical infrastructure, and utility sites.
• Transport hubs requiring high-resolution monitoring and analytics.
• Custom surveillance builds using specialized CS-mount optics.
• Outdoor monitoring in harsh weather or high-vibration environments.
• Installations requiring on-edge analytics and secure video verification.

Technical Specifications Summary

• Image sensor: 1/1.8” RGB CMOS, 2.0 µm pixels
• Video: 4K up to 30/60 fps; H.264/H.265/MJPEG; Zipstream; >55 dB SNR
• WDR: Forensic WDR up to 120 dB
• Low light: Down to 0.011 lux with optional F0.9 lens
• Analytics: AXIS Object Analytics, Scene Metadata, Image Health Analytics
• Cybersecurity: Secure boot, signed OS, Edge Vault, secure element
• Environmental: IP66/IP67, IK10, NEMA 4X; –40 °C to 60 °C
• Power: PoE Class 4 or 10–28 V DC
• Storage: microSD/microSDHC/microSDXC with encryption

Upgrade Your Operations

Enhance outdoor surveillance with a high-performance, customizable 8 MP security camera.
