[shortdesc]

• Fully featured, all-around 4K surveillance, Lightfinder 2.0, Forensic WDR, OptimizedIR, Analytics with deep learning, Audio and I/O connectivity, Built-in cybersecurity features, Impact and weather resistant

[/shortdesc]

[properties]

Properties	AXIS P1468-LE
Description	AXIS P1468-LE Bullet Camera is fully featured, all-around 4K surveillance. It offers analytics with deep learning and built-in cybersecurity features. Ideal for a variety of surveillance scenarios.
Product Family	Axis Cameras
Product Type	Bullet Camera
Image sensor	1/1.2" progressive scan RGB CMOS
Lightfinder	Lightfinder 2.0
Wide dynamic range	Forensic WDR
PoE Class	IEEE 802.3af/802.3at Type 1 Class 3
Wireless	-
Connectors	Shielded RJ45 10BASE-T/100BASE-TX/1000BASE-T
	3.5 mm mic/line in
	Terminal block for 1 supervised alarm input and 1 output (12 V
	DC output, max. load 25 mA)
	DC input
Signed firmware	Yes
Secure boot	Yes
Remote focus	Yes
Remote zoom	Yes
Built-in IR	Yes
Local storage (memory card slot)	Yes
Outdoor Ready	Yes
Vandal rating	IK10
IP rating	IP66,IP67
Designed for repaint	Yes
Power (max)	12.95 W
Power (average)	7.6 W
DC input voltage	10-28 V
Dimensions	Ø132 x 280 mm (Ø5.2 x 11.0 in)
Weight	With weather shield: 1.2 kg (2.65 lb)
Operating Temperature	-40 °C to 60 °C (-40 °F to 140 °F)
Event actions	Day-night mode, overlay text, WDR mode
	Audio clips: play, stop
	I/O: toggle I/O once, toggle I/O while the rule is active
	Illumination: use lights, use lights while the rule is active
	MQTT: publish
	Notification: HTTP, HTTPS, TCP and email
	Record video: SD card and network share
	SNMP traps: send, send while the rule is active
	Upload of images or video clips: FTP, SFTP, HTTP, HTTPS, network share and email
Applications	AXIS Object Analytics, AXIS Video Motion Detection, active tampering, shock detection, audio detection, orientation aid
Supported	AXIS Perimeter Defender, AXIS Digital Autotracking
	Support for AXIS Camera Application Platform enabling installation of third-party applications
Cybersecurity	Software: Signed firmware, brute force delay protection, digest authentication and OAuth 2.0 RFC6749 OpenID Authorization Code Flow for centralized ADFS account management, password protection, AES-XTS-Plain64 256bit SD card encryption
	Hardware: Axis Edge Vault cybersecurity platform
	Secure element (CC EAL 6+), system-on-chip security (TEE), Axis device ID, secure keystore, signed video, secure boot, encrypted filesystem (AES-XTS-Plain64 256bit)
	Network security: IEEE 802.1X (EAP-TLS)b, IEEE 802.1AR, HTTPS/HSTSb, TLS v1.2/v1.3b, Network Time Security (NTS), X.509 Certificate PKI, IP address filtering
	IEEE 802.1X (EAP-TLS, PEAP-MSCHAPv2)b, IEEE 802.1AR, HTTPS/HSTSb , TLS v1.2/v1.3b , Network Time Security (NTS), X.509
	Certificate PKI, IP address filtering

[/properties][specifications]

Specifications	AXIS P1468-LE
System on chip (SoC) Model	ARTPEC-8
Memory	2 GB RAM, 8 GB Flash
Compute capabilities	Deep learning processing unit (DLPU)
Min illumination/ light sensitivity (Color)	0.07 lux
Min illumination/ light sensitivity (B/W)	0.01 lux (0 lux with IR)
Max video resolution	3840x2160
Max frames per second	50/60
Electronic image stabilization	-
Multi-view streaming	Up to 8 individually cropped out view areas
Pan/Tilt/Zoom	Digital PTZ, digital zoom, Optical zoom 2.08, Guard tour (max 100), control queue, fixed orientation aid
Focal length	6.2 - 12.9 mm
Horizontal field of view	108-49 °
Vertical field of view	58 - 27 °
Zipstream	Yes
H.264	Baseline, High, Main
H.265	Yes
Motion JPEG	Yes
Audio streaming	Audio in, simplex, two-way audio via edge-to-edge technology
Audio input/output	External microphone input or line input, digital audio input, ring power, network speaker pairing
Sustainability	BFR/CFR free, PVC free

[/specifications][accesories]

Included accessories
AXIS T94F01S	Mount Bracket
AXIS TP1803-E Front Window Kit	Front window spare part in polycarbonate
AXIS TQ3901	Gasket M20 Cable
AXIS P14	Weathershield Kit A
AXIS Connector A 4-pin 2.5 Straight, 10 pcs
Optional accessories
AXIS T8129	PoE Extender
AXIS T8129-E	Outdoor PoE Extender
AXIS Long Range PoE Extender Kit	Robust solution for covering long distances
AXIS Surveillance Card 1 TB/ 512 GB/ 256 GB/128 GB/ 64 GB	High endurance microSDXC™ cards
AXIS T98A17-VE	Media Converter Cabinet A
AXIS T98A17-VE	Robust surveillance cabinet
AXIS T8351 Mk II Microphone 3.5 mm	High-performance, low noise analog microphone for superior audio
AXIS T8353A Microphone 3.5 mm	For professional audio surveillance
AXIS T8355 Digital Microphone 3.5 mm	Digital microphone with lossless interface for superior audio
AXIS TU1001-V Microphone	A robust microphone for indoor usage
AXIS TU1001-VE	A robust microphone for outdoor usage
AXIS T91B47	Pole Mount
AXIS T94F01M J-Box/Gang Box Plate	For versatile mounting
AXIS T94F01P Conduit Back Box	For ½″ conduits and M20 pipes
AXIS T94P01B	Corner Bracket
AXIS T94V01C	Dual Camera Mount
AXIS TP1601	Adapter Plate accessory
AXIS TP3603	Conduit Back Box
AXIS TQ1602-E	Conduit Back Box
AXIS T8120	Midspan 15 W 1-port
AXIS T8061 Ethernet Surge Protector	Protects outdoor devices from power surges
AXIS TU8001 Ethernet Surge Protector	For use indoors or in an enclosure
AXIS T8604	Media Converter Ethernet to fiber 12 V DC
AXIS T8606	Media Converter Switch 24 V DC
AXIS T8640 PoE+ over Coax Adapter Kit	Cost-efficient migration to network video for smaller installations
AXIS T8645 PoE+ Over Coax Compact Kit	Compact, cost-efficient single-channel migration to IP
AXIS T8007 PS24	Versatile 24 V DC power supply

[/accesories]

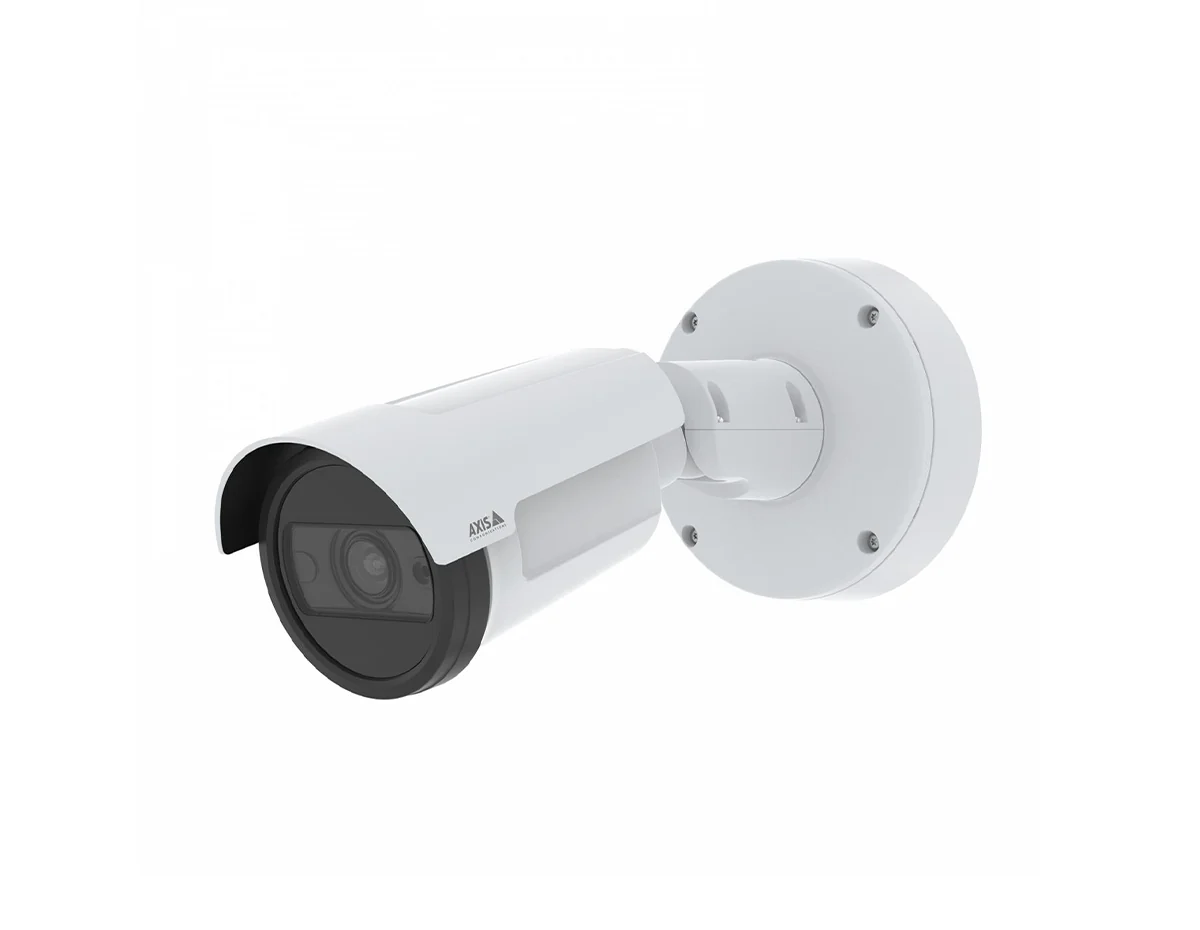

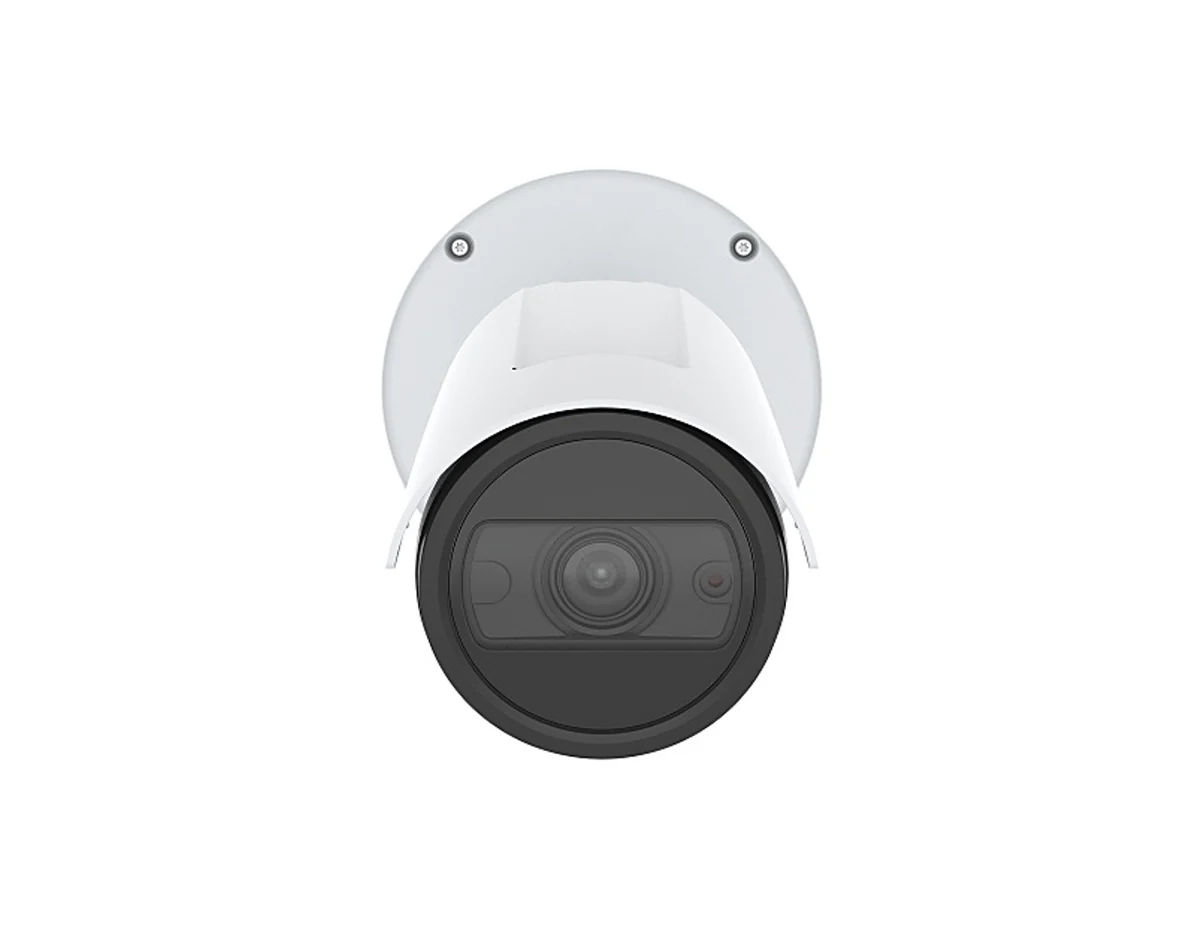

AXIS P1468-LE Bullet Camera (02342-001)

The AXIS P1468-LE presents high-quality imaging and sophisticated analytics utilizing deep learning at the edge. Equipped with integrated cybersecurity measures, this durable outdoor camera is well-suited for diverse surveillance applications. It uses a 1/1.2" progressive scan RGB CMOS sensor to record video at a resolution of 3840 x 2160 and a frame rate of 60 fps. Additionally, it features IR LEDs that offer night vision capabilities up to 131 feet.

Quick Specs:

• Lightfinder 2.0, Forensic WDR, OptimizedIR
• Built-in cybersecurity features
• Audio and I/O connectivity
• Impact and weather resistant

Please see the related tabs for the 02342-001 datasheet and compatible accessories.

This product has been replaced with AXIS P1488-LE (03184-001).

Feature	AXIS P1455-LE	AXIS P1465-LE	AXIS P1465-LE-3	AXIS P1467-LE	AXIS P1468-LE	AXIS P1488-LE
Max video resolution	1920x1080	1920x1080	1920x1080	2592x1944	3840x2160	3840x2160
Horizontal field of view	29-11 / 114-37	29 - 11 / 117 - 37	29 - 11	106 - 38	108 - 49	114 - 46
OptimizedIR	✔	✔	✔	✔	✔	✔
Alarm inputs/outputs	1/1	1/1	1/1	1/1	1/1	1/1
Lightfinder	Lightfinder 2.0	Lightfinder 2.0	Lightfinder 2.0	Lightfinder 2.0	Lightfinder 2.0	Lightfinder 2.0
Wide dynamic range	Forensic WDR	Forensic WDR	Forensic WDR	Forensic WDR	Forensic WDR	Forensic WDR
Zipstream	✔	✔	✔	✔	✔	✔
Remote focus	✔	✔	✔	✔	✔	✔
Remote zoom	✔	✔	✔	✔	✔	✔
Analytics compute capability	MLPU	DLPU	DLPU	DLPU	DLPU	DLPU
Axis Edge Vault	✔	✔	✔	✔	✔	✔
Edge to edge	Network speakers	Network speakers	Network speakers, Radar pairing	Network speakers	Network speakers	Network speakers
