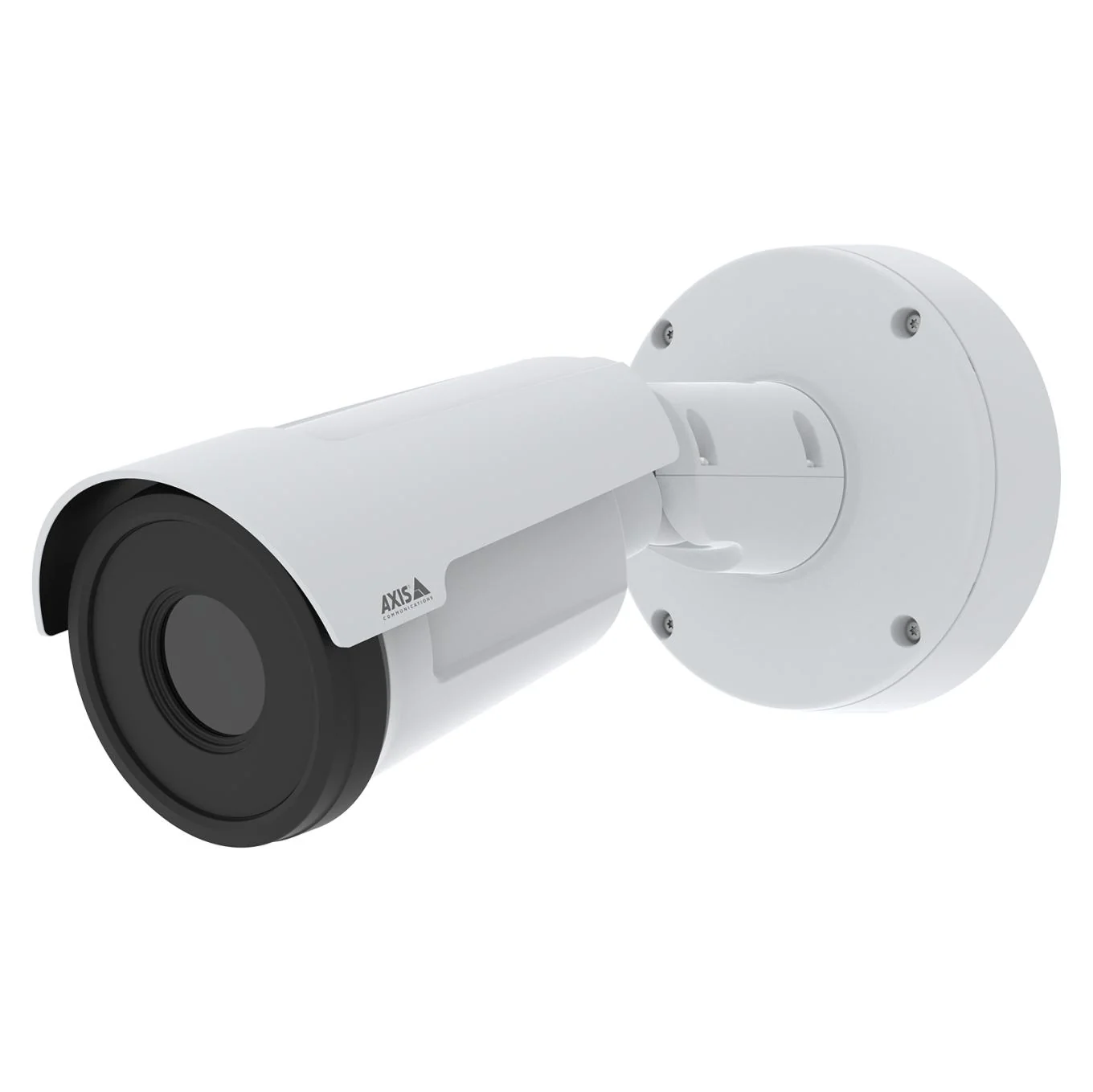

AXIS Q1961-TE 7 mm 8.3 fps Thermal Network Camera

The AXIS Q1961-TE 7 mm 8.3 fps Thermal Network Camera is a highly dependable thermometric camera designed for accurate remote temperature monitoring in challenging environments. With a 7 mm lens offering a 55° horizontal field of view and an 8.3 fps frame rate, this camera is perfect for monitoring equipment and environments to detect early signs of overheating or fire. Built with rugged outdoor features, it is IP66-, IP67-, and IK10-rated, providing protection against dust, water, and impact. Additionally, Axis Edge Vault provides advanced cybersecurity features to ensure secure operation and data protection.

Key Features:

• 7 mm Lens with 55° Field of View: Provides wide-area temperature monitoring for improved operational efficiency.
• 8.3 fps Frame Rate: Ensures smooth and reliable thermal imaging for accurate detection.
• Thermometry Capabilities: Offers spot temperature readings and up to 10 configurable polygonal detection areas for specific temperature monitoring.
• Early Fire Detection: Equipped with analytics for early fire detection, with smart filtering to minimize false alarms.
• Rugged Design: IP66-, IP67-, and IK10-rated for outdoor use, ensuring protection against dust, water, and impact.
• Axis Edge Vault: Built-in cybersecurity platform to protect device integrity and ensure secure key storage.

Technical Specifications:

• Image Sensor: Uncooled microbolometer, 384x288 pixels
• Lens: 7 mm, F1.18, horizontal field of view: 55°
• Frame Rate: 8.3 fps
• Thermometry Range: -40 °C to 350 °C (-40 °F to 662 °F)
• Power: Power over Ethernet (PoE) IEEE 802.3af/at, typical 4.3 W, max 12.95 W
• Operating Temperature: -40 °C to 60 °C (-40 °F to 140 °F)
• Weight: 1400 g (3.1 lb)

Feature	AXIS Q1941-E	AXIS Q1941-E PT Mount	AXIS Q1942-E	AXIS Q1942-E PT Mount	AXIS Q1951-E	AXIS Q1952-E	AXIS Q1961-TE	AXIS Q1971-E
Image sensor size	384x288	384x288	640x480	640x480	384x288	640x480	384x288	384x288
Two-way audio	✔	-	✔	-	✔	✔	-	✔
Alarm inputs/outputs	2	-	2	-	1/1	1/1	1/1	1/1
Zipstream	✔	✔	✔	✔	✔	✔	✔	✔
