h[shortdesc]

• Seamless, 180 degree coverage with no blind spots, 13 MP multisensor with seamless stitching, 180 degree horizontal, 90 degree vertical coverage, Seamless pan/tilt/roll, AXIS Edge Vault, Built-in cybersecurity features

[/shortdesc]
[properties]

Properties	AXIS P3818-PVE Panoramic Camera
Description	The AXIS P3818-PVE Panoramic Camera provides seamless 180° coverage with 13 MP resolution and 30 fps. With no blind spots, it seamlessly stitches three images for 180° horizontal and 90° vertical coverage. Two cameras can be mounted back-to-back with AXIS T94V01C Dual Camera Mount to achieve a full 360° overview, and audio support enables transaction monitoring. Powered by dual ARTPEC-7 SoCs, it includes cybersecurity features for system protection.
Product Family	AXIS P3818-PVE Panoramic Camera
Product Type	Panoramic Camera

[/properties] [specifications]

Specifications	AXIS P3818-PVE Panoramic Camera
Camera
Image sensor	3 x 5 MP 1/2.8” progressive scan RGB CMOS
Lens	Fixed 3.2 mm, F2.0
	Horizontal field of view: 180°
	Vertical field of view: 90°
Day and night	Automatically removable infrared-cut filter
Minimum illumination	With Forensic WDR and Lightfinder:
	Color: 0.16 lux, F2.0
	B/W: 0.05 lux, F2.0
Shutter speed	1/91000 to 1/25 s
	With WDR: 1/50000 to 1/25 s
Camera angle adjustment	Pan ±180°
	Tilt 0° to 50°
	Roll ±5
System on chip (SoC)
Model	ARTPEC-7 (x2)
Memory	2048 MB RAM (x2), 512 MB Flash
Compute capabilities	Machine learning processing unit (MLPU)
Video
Video compression	H.264 (MPEG-4 Part 10/AVC) Baseline, Main and High Profiles
	H.265 (MPEG-H Part 2/HEVC) Main Profile
	Motion JPEG
Resolution	5120x2560 (13.1 MP) to 256×128
Frame rate	13.1 MP @ 25/30 fps (50/60 Hz) WDR
Video streaming	13.1 MP: 1 configurable stream in H.264, H.265 and Motion
	JPEG in full frame rate
	Controllable frame rate and bandwidth
	VBR/ABR/MBR H.264/H.265, Low latency mode
Image settings	Saturation, contrast, brightness, sharpness, Forensic WDR: up to
	120 dB depending on scene, white balance, day/night threshold,
	exposure mode, compression, dynamic text and image overlay,
	orientation aid, exposure control, noise reduction, fine tuning of
	behavior at low light, polygon privacy masks
Audio
Audio streaming	Two-way audio via edge-to-edge technology
Audio input/output	External microphone input, line input, digital audio input,
	automatic gain control, network speaker pairing
Audio encoding	24bit LPCM, AAC-LC 8/16/32/48 kHz, G.711 PCM 8 kHz, G.726
	ADPCM 8 kHz, Opus 8/16/48 kHz, 44.1 kHz ACC-LC, LPCM
	Configurable bit rate
Network
Security	Password protection, IP address filtering, HTTPS
	encryption, IEEE 802.1X (EAP-TLS) network access
	control, digest authentication, user access log,
	centralized certificate management, brute force delay
	protection, signed firmware, protection of cryptographic
	keys with FIPS 140-2 certified TPM 2.0 module,
	Axis Edge Vault with Axis device ID
Supported protocols	IPv4, IPv6 USGv6, ICMPv4/ICMPv6, HTTP, HTTP/2, HTTPS, SSL/TLS,
	QoS Layer 3 DiffServ, FTP, SFTP, CIFS/SMB, SMTP, mDNS (Bonjour),
	UPnP® , SNMP v1/v2c/v3 (MIB-II), DNS/DNSv6, DDNS, NTP, RTSP,
	RTP, TCP, UDP, IGMP, RTCP, ICMP, DHCPv4/v6, ARP, SOCKS, SSH,
	LLDP, CDP, MQTT, Secure syslog (RFC 3164/5424, NTS (Network Time Security) UDP/TCP/TLS), Link-Local address (ZeroConf), SRTP/RTSPS
System Integration
Application Programming Interface	Open API for software integration
	ONVIF® Profile G, ONVIF® Profile M, ONVIF® Profile S and ONVIF® Profile T
Event conditions	Analytics, external input, supervised external input, edge storage
	events, virtual inputs through API
	Audio: audio detection
	Digital audio: digital signal contains Axis metadata, digital signal
	as invalid sample rate, digital signal missing, digital signal ok
	Device status: above operating temperature, above or below
	operating temperature, below operating temperature, fan failure,
	IP address removed, network lost, new IP address, shock detected,
	storage failure, system ready, within operating temperature,
	casing open, ring power overcurrent protection
	Edge storage: recording ongoing, storage disruption, storage
	health issues detected
	I/O: digital input, manual trigger, virtual input
	MQTT subscribe
	Scheduled and recurring: scheduled event
	Video: live stream open, average bitrate degradation, day-night
	mode, tampering
Event actions	Day/night mode, overlay text, video recording to edge storage,
	pre- and post-alarm video buffering, send SNMP trap, play audio
	clip, I/O events, status LED events
	File upload: FTP, SFTP, HTTP, HTTPS network share, email
	MQTT publish
	Notification: email, HTTP, HTTPS TCP
Data streaming	Event data
Built-in installation aids	Pixel counter, leveling guide
Analytics
Applications	Included
	AXIS Fence Guard, AXIS Motion Guard, AXIS Loitering Guard
	AXIS Video Motion Detection, active tampering alarm, audio
	detection
	Supported
	Support for AXIS Camera Application Platform enabling
	installation of third-party applications, see axis.com/acap
General
Casing	IP66-/IP67- and NEMA 4X-rated, IK10-rated impact-resistant
	casing with polycarbonate hard coated clear dome, aluminum
	base and dehumidifying membrane
	Color: white NCS S 1002-B
	Casing open detection
	For repainting instructions contact your
	distributor partner.
Mounting	Mounting bracket with junction box holes (double-gang,
	single-gang, 4” square, and 4” octagon) and for wall or ceiling mount
	¾” (M25) conduit side entries
Sustainability	PVC free, 20% recycled plastic
Power	Power over Ethernet (PoE) IEEE 802.3at Type 2 Class 4
	Typical 11 W, max 18 W
Connectors	Shielded RJ45 1000BASE-T
	Terminal block for two configurable supervised inputs/digital
	outputs (12 V DC output, max load 50 mA), 3.5 mm analog/digital
	mic/line in
Storage	Support for microSD/microSDHC/microSDXC card
	Support for SD card encryption
	Support for recording to network-attached storage (NAS)
Operating conditions	(-40 °C to 50 °C) (-40 °F to 122 °F)
	Humidity 10–100% RH (condensing)
	Maximum temperature according to NEMA TS 2 (2.2.7): 74 °C
	(165 °F)
	Start-up temperature: -40 °C
Storage conditions	(-40 °C to 65 °C) (-40 °F to 149 °F)
	Humidity 5-95% RH (non-condensing)
Approvals	EMC
	EAC, EN 55032 Class A, EN 55035, EN 50121-4,
	IEC 62236-4, EN 55024, EN 61000-6-1, EN 61000-6-2,
	FCC Part 15 Subpart B Class A, ICES-3(A)/NMB-3(A), VCCI Class A,
	RCM AS/NZS CISPR 32 Class A, KC KN32 Class A, KC KN35,
	CISPR 24, CISPR 35
	Safety
	IEC/EN/UL 60950-22, IEC/EN/UL 62368-1,
	CAN/CSA C22.2 No. 62368-1, CAN/CSA-C22.2 No. 60950-22
	Environment
	IEC 60068-2-1, IEC 60068-2-2, IEC 60068-2-6,
	IEC 60068-2-14, IEC 60068-2-27, IEC 60068-2-78,
	IEC/EN 60529 IP66/IP67, IEC/EN 62262 IK10, NEMA 250 Type 4X,
	NEMA TS 2 (2.2.7-2.2.9), MIL-STD-810H (Method 501.7, 502.7,
	505.7, 506.6, 507.6, 509.7, 512.6)
	Network
	NIST SP500-267
Dimensions	Height: 170 mm (6.6 in)
	Width in diameter: 195 mm (7.6 in)
	With weathershield:
	Height 221 mm (8.7 in)
	Width 206 mm (8.1 in)
Weight	2.2 kg (4.9 lb)
Mounting height	Recommended: 4–15 m
Included accessories	Installation guide, Windows® decoder 1-user license,
	weathershield, RESITORX® T20 bit, connector guard
Languages	English, German, French, Spanish, Italian, Russian, Finnish, Turkish, Thai, Vietnamese
	Simplified Chinese, Japanese, Korean, Portuguese, Traditional Chinese, Dutch, Czech, Swedish

[/specifications] [accesories]

Optional accessories

• AXIS T8415 Wireless Installation Tool • AXIS Surveillance Cards • AXIS TQ3102 Pendant Kit • AXIS TQ3101–E Pendant Kit • AXIS TQ3201–E Recessed Mount • AXIS T94V01C Dual Camera Mount

[/accesories]

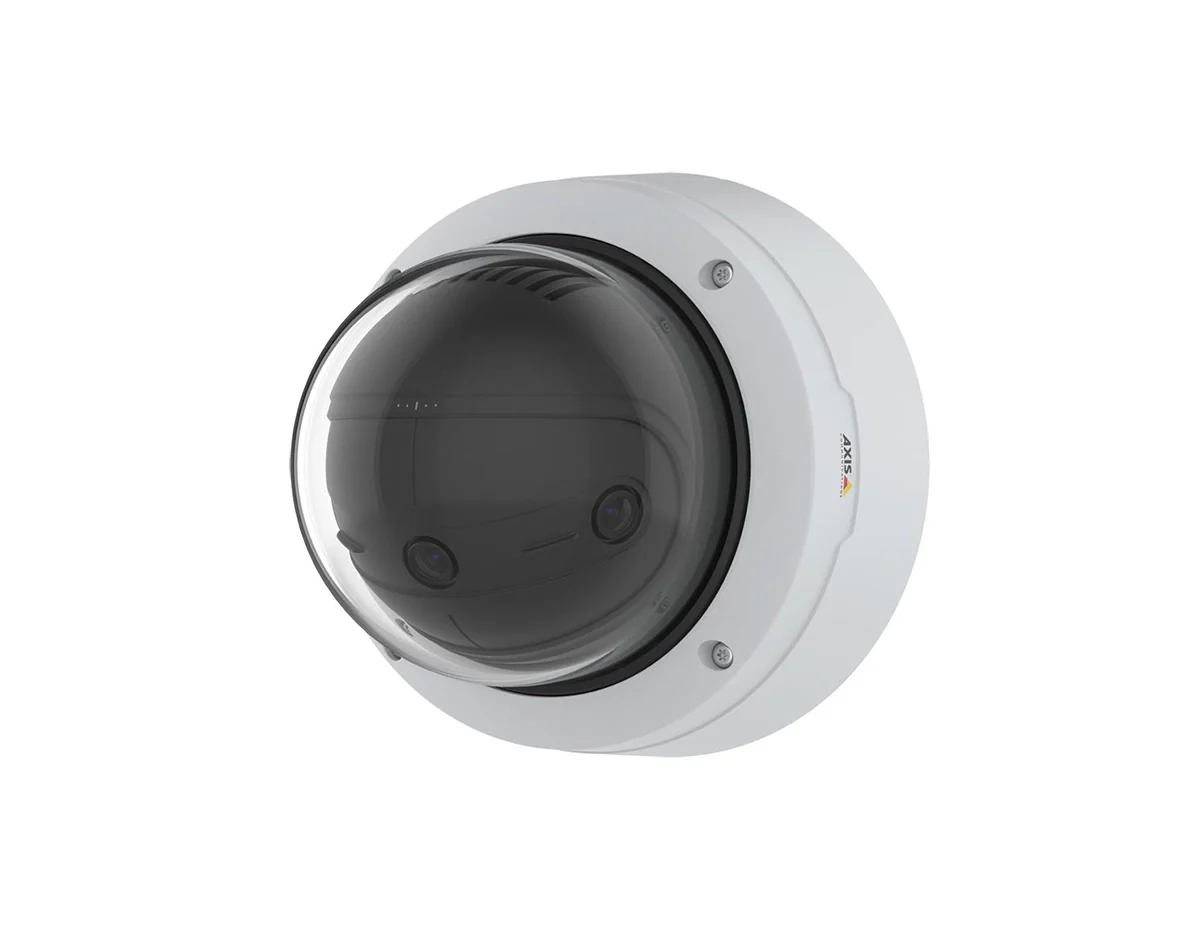

AXIS P3818-PVE Panoramic Camera (02060-001)

This camera has 13 MP multisensor camera with one IP address. It is called the P3818-PVE camera and provides 180° horizontal coverage and 90° vertical coverage without any blind spots. Users can also mount two of these cameras back-to-back using the Axis T94V01C Dual Camera mount, which allows for a more comprehensive situational awareness over larger areas and distances. The P3818-PVE camera provides seamless stitching across all three images, resulting in a single, smooth video stream with a coherent-looking image.

Quick Specs:

• 13 MP multisensor with seamless stitching
• Seamless pan/tilt/roll
• AXIS Edge Vault
• Built-in cybersecurity features

Please see the related tabs for the 02060-001 datasheet and compatible accessories.

Feature	AXIS P3818-PVE	AXIS P3827-PVE
Max video resolution	5120x2560	3712x1856
Horizontal field of view	180	180
Vertical field of view	90	90
OptimizedIR	-	-
Day and Night functionality	✔	✔
Lightfinder	Lightfinder	Lightfinder
Wide dynamic range	Forensic WDR	Forensic WDR
Zipstream	✔	✔
Alarm inputs/outputs	2	2
Audio Support	✔	✔
Axis Edge Vault	✔	✔
