• The Zebra ZT41143-T010000Z (ZT411) is a high-performance industrial thermal transfer barcode label printer, offering 300 dpi resolution, 10 ips print speed, and multiple connectivity options including USB, USB Host, Ethernet, Bluetooth 4.1, and Serial.

[/shortdesc]

[properties]

Model	ZT411
SKU / Part Number	ZT41143-T010000Z
Product Type	Direct Thermal / Thermal Transfer Printer
Series	ZT400 Series
Print Resolution	300 dpi
Maximum Print Speed	10 ips / 254 mm/s
Maximum Print Width	4.09 in / 104 mm
Maximum Print Length	73 in / 1854 mm
Display	4.3-inch full-color touch display
Connectivity	USB 2.0, Serial RS-232, 10/100 Ethernet, Bluetooth 4.1, Dual USB Host
Memory	256 MB SDRAM / 512 MB Flash
Media Types	Continuous, Die-cut, Notch, Black Mark
Maximum Media Roll Diameter	8.0 in / 203 mm
Media Core Size	3 in / 76 mm
Thickness (Media)	0.0023 in to 0.010 in
Ribbon Width	2.00 in to 4.33 in
Ribbon Length	1476 ft / 450 m
Operating Temperature	Thermal Transfer: 40°F to 104°F / 5°C to 40°C Direct Thermal: 32°F to 104°F / 0°C to 40°C
Operating Humidity	20%–85% non-condensing
Storage Temperature	−40°F to 140°F / −40°C to 60°C
Storage Humidity	5%–85% non-condensing
Dimensions (H × W × D)	12.8 in × 10.6 in × 19.5 in
Weight	36 lb / 16.33 kg
Construction	Metal frame with bi-fold metal media cover
Sensors	Transmissive & Reflective
Power	100–240 VAC, 50/60 Hz (Auto-detectable, ENERGY STAR Qualified)

[/properties]

[specifications]

Print Technology	Direct Thermal & Thermal Transfer
Print Sensors	Adjustable transmissive & reflective sensors
Programming Languages	ZPL, ZPL II, XML, ZBI 2.0
Max Print Speed	10 ips (300 dpi)
Media Width	1.00 in to 4.5 in (Tear/Cutter)
Maximum Label Length	73 in / 1854 mm
Media Roll Size	8 in OD on 3 in core
Ribbon Core	1 in / 25 mm I.D.
Memory (Detailed)	256 MB SDRAM + 512 MB Flash (64 MB user available)
Barcode Symbologies	1D & 2D including Code 128, Code 39, PDF417, DataMatrix, QR Code, Aztec
Interfaces	RS-232 Serial, USB 2.0, USB Host (x2), 10/100 Ethernet, Bluetooth 4.1
Environmental Compliance	ENERGY STAR Qualified
Agency Approvals	IEC 60950, EN 55022, EN 55024, FCC Class B, cTUVus, CE, VCCI, NOM, KCC, BSMI

[/specifications]

[accesories]

Included in the Box	Power Supply (Internal), US Power Cord Documentation (varies by region)
Optional – Connectivity	Dual-band 802.11ac Wi-Fi + Bluetooth Card Parallel Interface Card Applicator Interface Card
Optional – Media Handling	Front-mount Guillotine Cutter & Tray Peel Option (Passive) Liner Take-Up Spindle Rewind Kit (Factory Installed Only)
Optional – RFID	UHF RFID Encoder Kit On-metal RFID Encoding Kit (ZT411 only)
Optional – Keyboard	ZKDU Keyboard Display Unit

[/accesories]

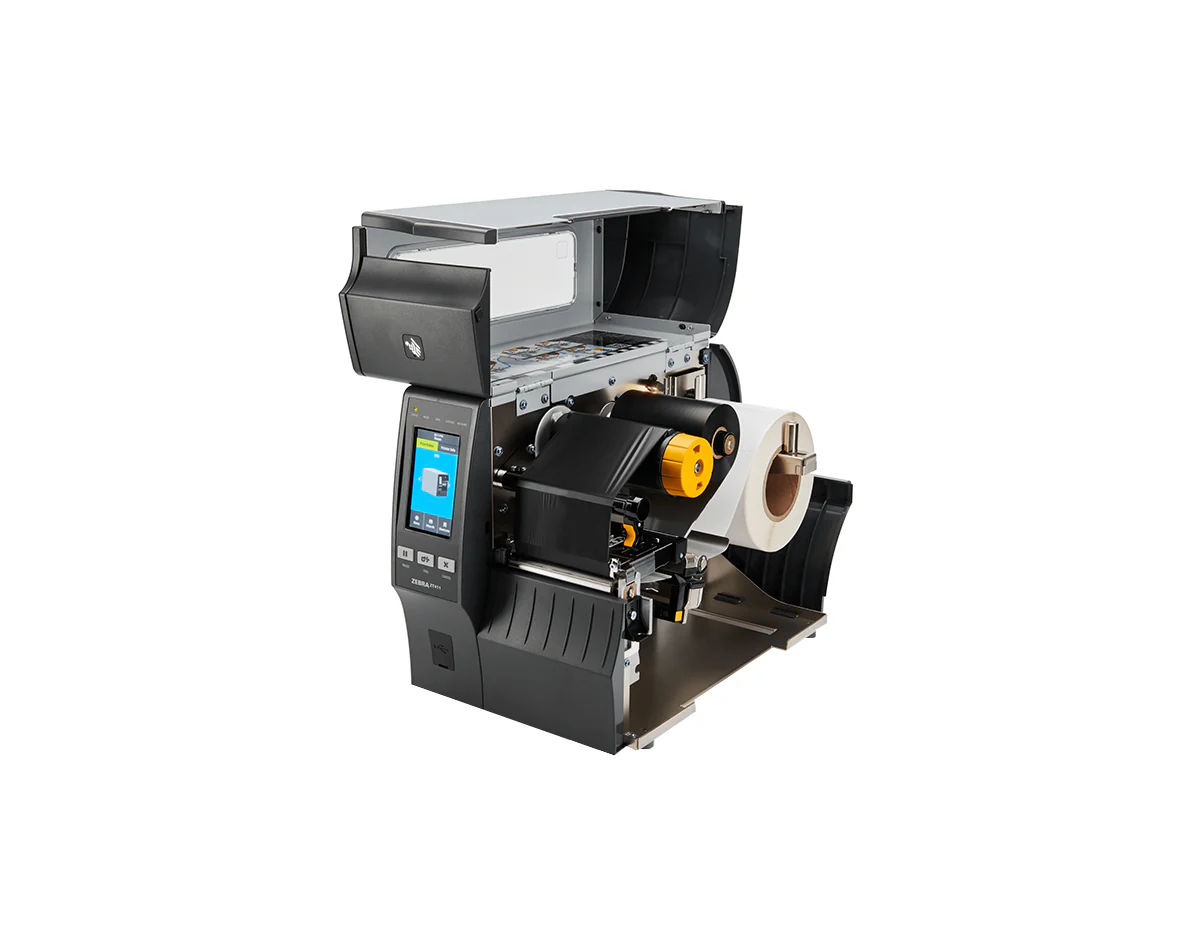

Zebra ZT41143-T010000Z Thermal Transfer Barcode Label Printer (ZT411)

The Zebra ZT411 is a durable and efficient industrial barcode label printer designed for demanding environments such as manufacturing, logistics, and healthcare. Featuring a high-resolution 300 dpi print capability, it delivers crisp, clear labels with a maximum print speed of 10 inches per second. The ZT411 supports a variety of media types, including continuous paper, die-cut labels, and black mark labels. It also offers extensive connectivity options with USB, USB Host, Ethernet, Bluetooth 4.1, and Serial, making it an excellent choice for seamless integration into existing workflows. With its robust design and advanced features, the ZT411 ensures reliable, high-quality label printing.

Ribbon Requirement: Ribbon Required (for Thermal Transfer printing)

Key Features:

• Thermal Transfer Printing: Produces long-lasting, high-quality labels with ribbon-based printing.
• High Print Resolution: 300 dpi ensures sharp and detailed label output for small text and barcodes.
• Fast Print Speed: Prints up to 10 inches per second for high-volume label printing.
• Multiple Connectivity Options: Supports USB, USB Host, Ethernet, Bluetooth 4.1, and Serial.
• Industrial-Grade Design: Built for durability and reliability in heavy-duty applications.
• Advanced Media Handling: Compatible with roll-fed, die-cut, fanfold, black mark, and continuous labels.
• Large Media Capacity: Supports 3-inch label cores and 8-inch maximum roll diameter.
• Optimized for Network Integration: Provides flexible connectivity with wired and wireless options.

Technical Specifications:

• Print Technology: Thermal Transfer
• Print Resolution: 300 dpi
• Maximum Print Speed: 10 in/sec
• Maximum Print Width: 4.09 inches
• Maximum Print Length: 73 inches
• Memory: 256 MB SDRAM / 512 MB Flash
• Interface Options: USB, USB Host, Ethernet, Bluetooth 4.1, Serial
• Programming Languages: ZPL, ZPL II, XML
• Supported Media Types: Continuous paper, die-cut labels, black mark, notch
• Maximum Roll Diameter: 8 inches
• Maximum Label Length: 73 inches
• Label Core Size: 3 inches
• Power Supply: AC input
• Dimensions (H x W x D): 12.8 x 10.6 x 19.5 inches
• Weight: 36 lb
