[shortdesc] Thermal transfer printing, 300 dpi resolution, 4-inch print width, Ethernet, Serial and USB connectivity, color touch LCD, desktop form factor [/shortdesc]

[properties]

Model	Zebra ZD621
Manufacturer Part Number	ZD6A143-301F00EZ
Product Type	Thermal Transfer Barcode Printer
Print Technology	Thermal Transfer
Print Resolution	300 dpi
Maximum Print Speed	6 in/s (152 mm/s)
Maximum Print Width	4.27 in (108 mm)
Display	4.3-inch Color Touch LCD
User Interface	Color Touchscreen with intuitive menu system
Connectivity	Ethernet, Serial, USB 2.0, USB Host, Bluetooth Low Energy (BLE)
Programming Languages	ZPL II, EPL2, XML, ZBI, PDF Direct
Memory	512 MB Flash, 256 MB SDRAM
Media Types Supported	Roll-fed or fan-fold labels, die-cut or continuous media, tag stock, continuous receipt paper, wristbands
Maximum Media Roll Diameter	5.0 in (127 mm)
Dimensions (W x D x H)	8.0 x 10.5 x 7.5 in (202 x 267 x 192 mm)
Weight	5.5 lb (2.5 kg)
Power Source	AC Power Supply
Certifications	ENERGY STAR, cTUVus, CE, FCC Class B, RoHS compliant

[/properties]

[specifications]

Operating System	Link-OS
Print Resolution Options	300 dpi (12 dots per mm)
Maximum Print Speed	6 in/s at 300 dpi
Media Width	0.585 in to 4.65 in (15 mm to 118 mm)
Label Length	Minimum 0.25 in (6.4 mm), Maximum 39 in (991 mm)
Ribbon Length	984 ft (300 m) or 243 ft (74 m)
Ribbon Width	1.33 in to 4.3 in (33.8 mm to 109.2 mm)
Ribbon Core Diameter	1 in (300 m), 0.5 in (74 m)
Media Sensors	Full-width moveable reflective and multi-position transmissive sensors
Operating Temperature	40 F to 105 F (4.4 C to 41 C)
Storage Temperature	-40 F to 140 F (-40 C to 60 C)
Operating Humidity	10% to 90% non-condensing
Storage Humidity	5% to 95% non-condensing
Electrical	100-240 VAC, 50-60 Hz, Energy Efficiency Level VI

[/specifications]

[accesories]

Optional Accessories	Cutter; Dispenser/Peeler; Carrying case; Battery; Keyboard Display Unit (ZKDU); Mounting plate; Enclosed power supply
Optional Connectivity	Dual radio Wi-Fi (802.11ac) and Bluetooth module

[/accesories]

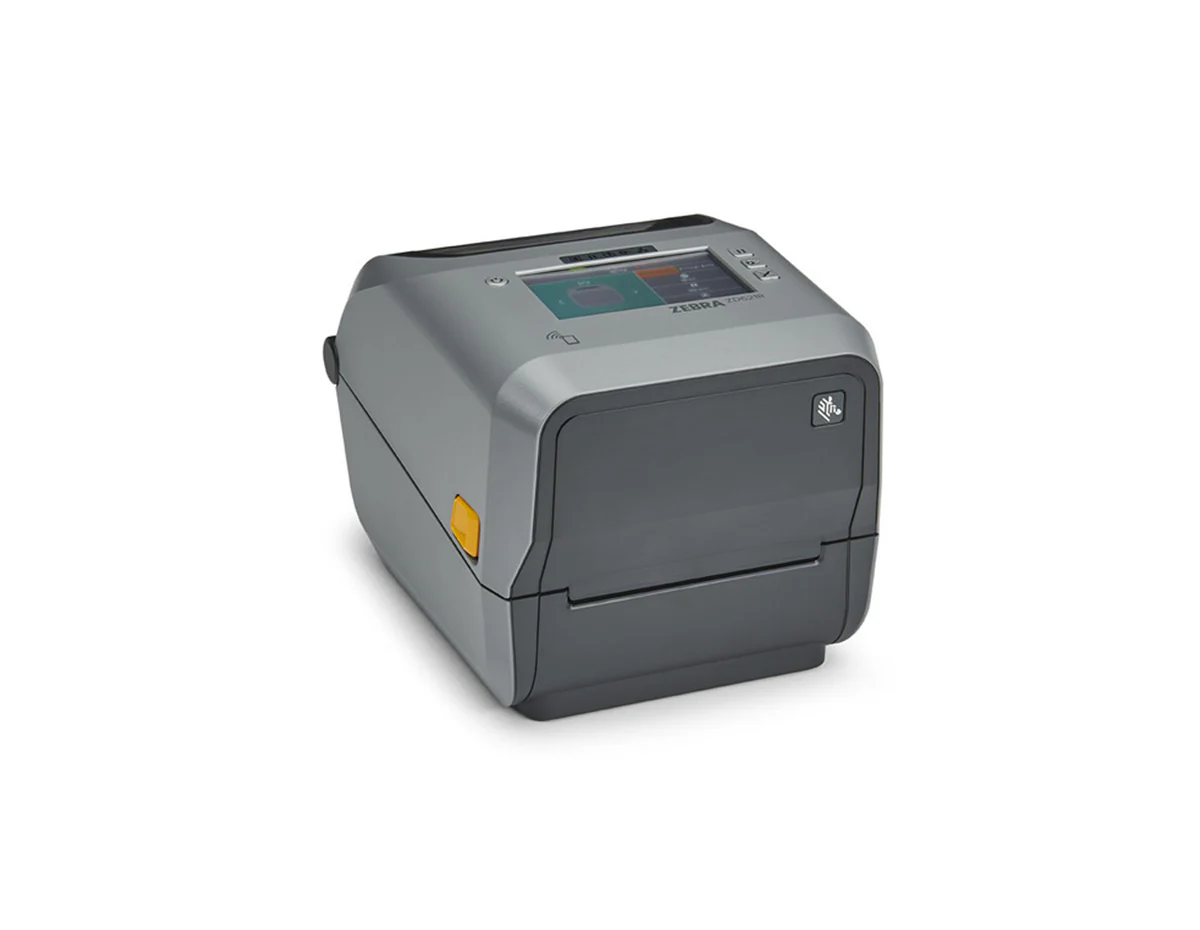

Premium Desktop Label Printing Built for Accuracy and Control

The Zebra ZD621 (Model ZD6A143-301F00EZ) is an advanced desktop barcode printer engineered to deliver superior print quality and operational efficiency. Leveraging Zebra's innovative Link-OS architecture, this thermal transfer printer provides high-resolution 300 dpi output, ensuring that small labels, intricate barcodes, and detailed graphics are sharp and readable. Designed with a user-centric 4.3-inch full-color LCD touch display, it allows for effortless navigation of printer settings and instant status updates, reducing training time and minimizing downtime.

Key Benefits & Features

• High-Resolution 300 DPI Printing: Perfect for applications requiring high-density barcodes and small text, such as jewelry tags, specimen labels, and electronics components.
• Interactive Color Touch Display: The 4.3-inch LCD interface changes color to indicate printer status and guides users through media handling and error resolution.
• Versatile Connectivity: Comes standard with Ethernet, Serial, USB 2.0, and USB Host, plus Bluetooth Low Energy (BLE) for local mobile device configuration.
• Robust Thermal Transfer Performance: Supports both 74-meter and 300-meter ribbons with a dual-ribbon handling system, providing flexibility in consumable choices.
• Future-Ready Architecture: Powered by Zebra's Print DNA software suite, offering remote management tools, enhanced security, and ongoing updates to stay ahead of evolving business needs.

Ideal Use Cases

• Retail inventory and price marking
• Healthcare specimen and pharmacy labeling
• Electronics and component manufacturing
• Logistics tracking and shipping labels
• High-resolution asset management tagging

Technical Specifications

• Print Method: Thermal Transfer
• Print Resolution: 300 dpi (12 dots/mm)
• Maximum Print Width: 4.27 inches (108 mm)
• Print Speed: Up to 6 inches (152 mm) per second
• Memory: 512 MB Flash, 256 MB SDRAM
• Standard Interfaces: Ethernet, Serial, USB 2.0, USB Host, BTLE
• Display: 4.3-inch Color Touch LCD
• Dimensions: 10.5 in L x 8.0 in W x 7.5 in H

Upgrade Your Labeling Workflow Today

Invest in the Zebra ZD621 for a secure, reliable, and intelligent printing solution that adapts to your business growth. Order today to experience industry-leading performance.
