Properties	Zebra ZD230 ZD23042-D01G00EZ
Description	Direct Thermal Only Printer, Zebra ZD230 Desktop Printer, Standard EZPL, 203 DPI
Product Family	ZD200 Series
Product Type	Label Printer
Standard Features	Direct Thermal print method ZPL and EPL programming languages Single LED status indicator Single button for feed/pause USB connectivity OpenACCESS for easy media loading Dual-wall frame construction ENERGY STAR qualified ZebraDesigner Essentials - easy label design tool free at www.zebra.com/zebradesigner
Connectivity	USB
Printing	Direct thermal printing method
Resolution	203 dpi/8 dots per mm
Dimensions (W x H x D)	6.9 x 5.9 x 8.6 in. (176 mm x 151 mm x 220 mm)
Weight	2.5 lbs./1.1 kg
Power	Auto-detectable (PFC Compliant) 100-240VAC, 50-60Hz; ENERGY STAR qualified

[/properties][specifications]

Specifications	ZD230
Memory	128 MB Flash; 128 MB SDRAM
Maximum Print Width	4.09 in./104 mm for 203 dpi
Maximum Print Length	203 dpi: 157/3988 mm 300 dpi: 73/1854 mm
Programmable Print Speed	6 in./152 mm per second or 4 in./102 mm per second
Media Sensors	Movable black mark sensor, limited range from center to left side Fixed off-center gap sensor
Media Width	1.00 in. / 25.4 mm to 4.4 in. / 112 mm
Media Roll Size	5.00 in./127 mm outer diameter Core inner diameter: 0.5 in. (12.7 mm) and 1.0 in. (25.4 mm) standard, 1.5 in. (38.1 mm)
Media Thickness	0.003 in. (0.08 mm) min.; 0.0075 in. (.1905 mm) max. (tear-off mode only)
Media Types	Roll-fed or fan-fold, die cut or continuous with or without black mark, tag stock, continuous receipt paper, and wristbands
Ribbon Outside Diameter	2.6 in./ 66 mm (300 m); 1.34 in./ 34 mm (74 m)
Maximum Ribbon Length	984 ft. (300 m)
Ribbon Ratio	1:4 media to ribbon (300 m) 1:1 media to ribbon (74 m)
Ribbon Width	1.33 in./ 33.8 mm ~ 4.3 in./ 109.2 mm
Ribbon Core I.D.	300 Meter ribbon 1 in./ 25.4 mm 74 Meter ribbon 0.5 in./ 12.7 mm
Fonts and Graphics	16 resident expandable ZPL II bitmap fonts Two resident scalable ZPL fonts Five resident expandable EPL2 fonts Native open-type font support Unicode compliant for multi-language, on demand thermal printing 50 MB user available non-volatile memory, 8 MB user available SDRAM
Barcode Symbologies
Barcode Ratios	2:1 and 3:1
Linear Barcodes	Code 11, Code 39, Code 93, Code 128, ISBT-128, UPC-A, UPC-E, EAN-8, EAN-13, UPC and EAN 2-or 5-digit extensions, Plessey, Postnet, Standard 2-of-5, Industrial 2-of-5, Interleaved 2-of-5, Logmars, MSI, Codabar and Planet Code
2-Dimensional	Codablock, PDF417, Code 49, DataMatrix, MaxiCode, QR Code, MicroPDF, Aztec
Software	ZebraDesigner Essentials Makes designing and printing industry-standard and compliant labels simple, including fixed or variable data Zebra Setup Utilities Enhances out-of-the-box experience by enabling quick and easy printer configuration Emulations On-printer apps allow Zebra printers to use legacy languages normally associated with other printer brands
Firmware	ZPL II; EPL 2; XML
Operating Temperature	40° to 105° F/4.4° to 41° C
Storage Temperature	-40º to 140ºF (-40º to 60ºC)
Operating Humidity	20% to 85% non-condensing
Storage Humidity	5% to 85% non-condensing
Regulatory	IEC 60950-1, EN55022 Class B, EN55024, EN61000-3-2, EN61000-3-3, FCC Class B, ICES-003, FCC 15.209; 15.247(d), IC RSS 247, EN 300 328, EN 301 893, EN 62311, cTUVus CE Marking, VCCI, C-Tick, S-Mark, CCC, CU, BSMI, KCC, SABS, IN-Metro, BIS, NOM

[/specifications][accesories]

Options and Accessories
Media Handling	Factory installed peeler or cutter
Communications	Factory-installed USB and Ethernet Factory-installed USB and Bluetooth 4.1 Factory-installed USB 802.11ac Wi-Fi and Bluetooth 4.1

[/accesories]

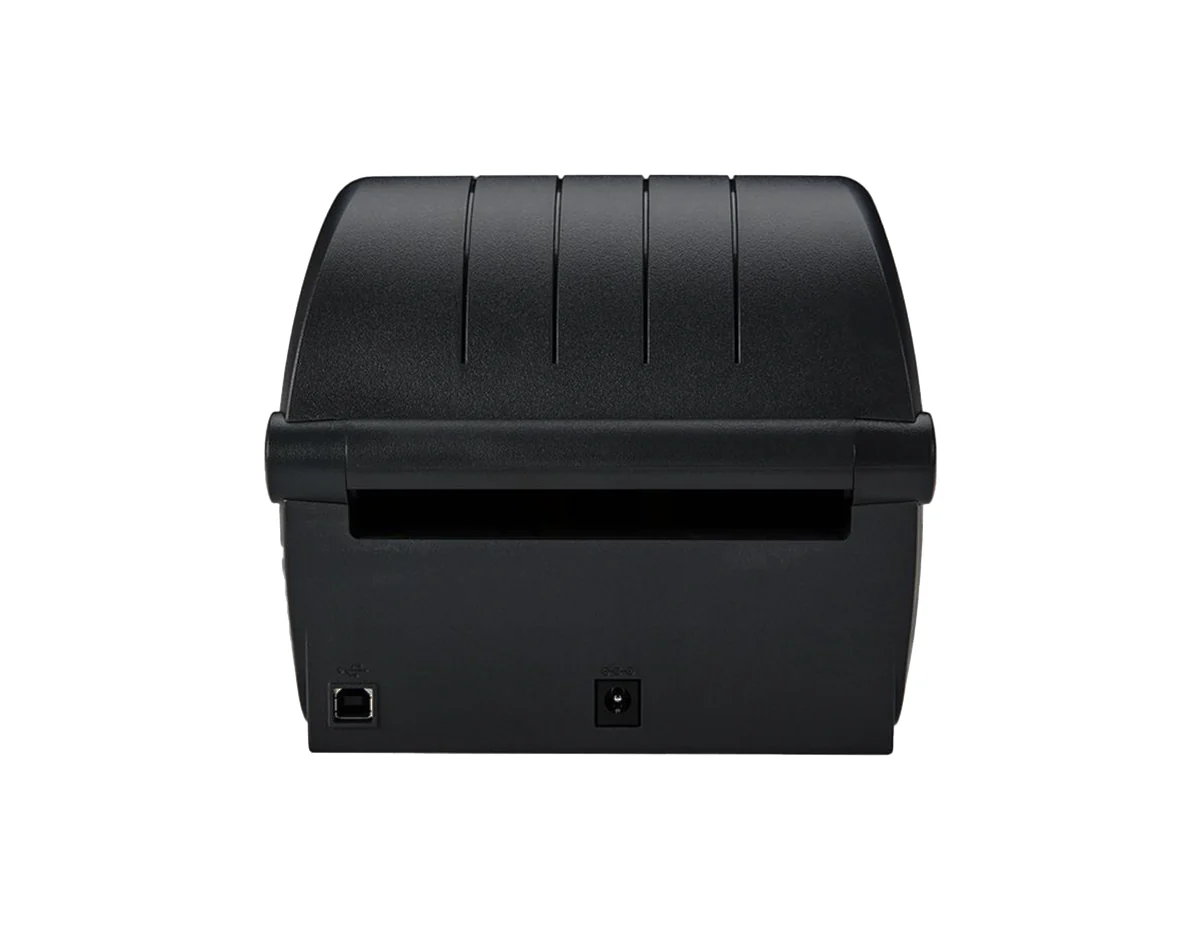

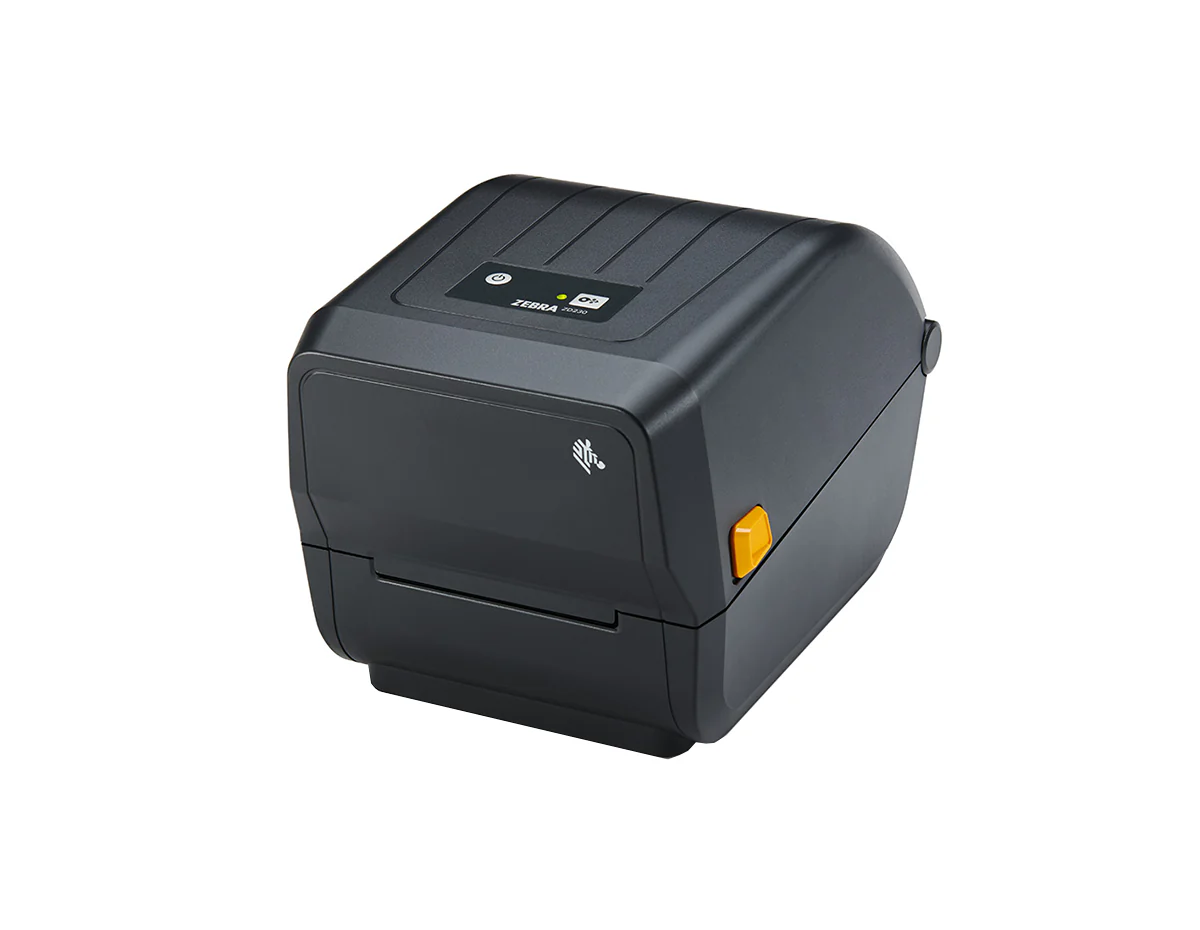

Zebra ZD23042-D01G00EZ Printer (ZD230d)

The ZD23042-D01G00EZ is a thermal printer from the ZD230 desktop printer family. It has 128 MB memory and can be plug-and-play thanks to its USB connection. You can use it to print labels, tags, tickets, and receipts. It has the OpenACCESS™ clamshell design to make media loading easy.

Quick Specs:

• 6 ips print speed
• 203 dpi print resolution
• USB 2.0 connectivity
• Energy Star rated

Ribbon Requirement: No Ribbon Required (for Direct Thermal printing)

You can see the ZD23042-D01G00EZ datasheet and detailed specifications from the related tabs.
