[shortdesc]

• Intel® Socket LGA1700 for Intel® Core™ 14th & 13th Gen Processors, Intel® Core™ 12th Gen, Pentium® Gold, and Celeron® Processors, Supports Intel® Turbo Boost Technology 2.0 and Intel® Turbo Boost Max Technology 3.0, Total supports 3 x M.2 slots and 4 x SATA 6Gb/s ports*

[/shortdesc]

[properties]

Product Name	ASUS PRIME Z790-P Motherboard
Model Number	PRIME Z790-P
CPU Support	Intel® Socket LGA1700 for Intel® Core™ 14th, 13th, and 12th Gen Processors
Chipset	Intel® Z790 Chipset
Memory Support	4 x DIMM slots, up to 192GB DDR5, speeds up to 7200+(OC) MHz
Expansion Slots	1 x PCIe 5.0 x16 slot, 3 x PCIe 4.0 x16 slots (x4 mode), 1 x PCIe 3.0 x1 slot
Storage Options	3 x M.2 slots, 4 x SATA 6Gb/s ports
Network Interface	Realtek 2.5Gb Ethernet
Graphics Outputs	1 x DisplayPort 1.4, 1 x HDMI® 2.1
USB Ports	Rear: 1 x USB 3.2 Gen 2x2 Type-C®, 1 x USB 3.2 Gen 2 Type-A, 2 x USB 3.2 Gen 1 Type-A, 4 x USB 2.0 Type-A
Audio	Realtek 7.1 Surround Sound HD Audio CODEC, supports up to 24-Bit/192 kHz playback
Cooling System	1 x 4-pin CPU Fan, 1 x 4-pin CPU OPT Fan, 1 x 4-pin AIO Pump, 3 x 4-pin Chassis Fan headers

[/properties]

[specifications]

CPU Socket	LGA1700, supports 14th, 13th, 12th Gen Intel® processors
Memory Type	DDR5, non-ECC, un-buffered memory, supports Intel® XMP
Max Memory Capacity	Up to 192GB
Memory Channels	Dual channel memory architecture
PCIe Slots	1 x PCIe 5.0 x16, 3 x PCIe 4.0 x16 (x4 mode), 1 x PCIe 3.0 x1
M.2 Slots	3 M.2 slots (PCIe 4.0 x4 and SATA modes)
SATA Ports	4 x SATA 6Gb/s
Ethernet Port	1 x Realtek 2.5Gb Ethernet
Display Support	1 x HDMI® (4K@60Hz), 1 x DisplayPort (4K@60Hz)
USB Connectivity	Rear: 1 x USB 3.2 Gen 2x2 Type-C®, 1 x USB 3.2 Gen 2 Type-A, 2 x USB 3.2 Gen 1 Type-A, 4 x USB 2.0 Type-A
Audio System	Realtek 7.1 Surround Sound, premium capacitors, dedicated audio PCB layers
Power Connectors	1 x 24-pin ATX, 1 x 8-pin +12V, 1 x 4-pin +12V
RGB Headers	3 x Addressable Gen 2, 2 x Aura RGB
Additional Features	Intel® Turbo Boost Technology 2.0, Intel® Turbo Boost Max Technology 3.0, supports Intel® Optane™ Memory

[/specifications]

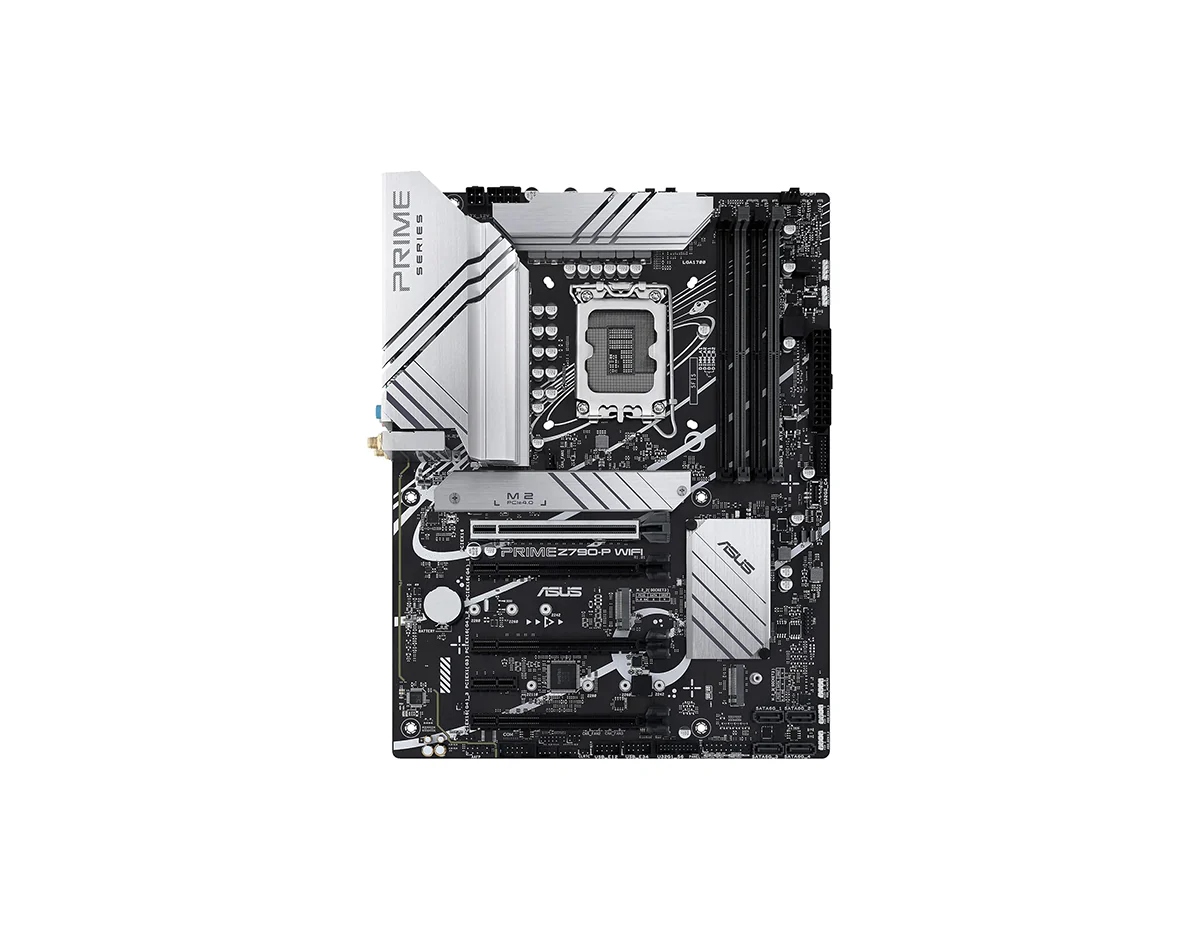

ASUS PRIME Z790-P Motherboard

The ASUS PRIME Z790-P Motherboard is designed to support the latest Intel® processors and offer a robust and versatile foundation for your high-performance PC build. Featuring advanced connectivity options, enhanced power solutions, and comprehensive cooling features, this motherboard is ideal for gaming, content creation, and demanding applications.

Model:

• PRIME Z790-P

CPU Support:

• Intel® Socket LGA1700 for Intel® Core™ 14th & 13th Gen Processors, Intel® Core™ 12th Gen, Pentium® Gold, and Celeron® Processors*
• Supports Intel® Turbo Boost Technology 2.0 and Intel® Turbo Boost Max Technology 3.0**
• * Refer to www.asus.com for CPU support list.
• ** Intel® Turbo Boost Max Technology 3.0 support depends on the CPU types.

Chipset:

• Intel® Z790 Chipset

Memory:

• 4 x DIMM, Max. 192GB, DDR5 7200+(OC)/7000(OC)/6800(OC)/6600(OC)/6400(OC)/6200(OC)/6000(OC)/5800(OC)/5600/5400/5200/5000/4800 Non-ECC, Un-buffered Memory*
• Dual Channel Memory Architecture
• Supports Intel® Extreme Memory Profile (XMP)
• OptiMem II
• * Supported memory types, data rate(Speed), and number of DRAM modules vary depending on the CPU and memory configuration. For more information, refer to www.asus.com for memory support list.
• * Non-ECC, un-buffered DDR5 memory supports On-Die ECC function.

Graphics:

• 1 x DisplayPort**
• 1 x HDMI® port***
• * Graphics specifications may vary between CPU types. Please refer to www.intel.com for any updates.
• ** Supports max. 4K@60Hz as specified in DisplayPort 1.4.
• *** Supports 4K@60Hz as specified in HDMI 2.1.

Expansion Slots:

• Intel® Core™ Processors (14th & 13th & 12th Gen)*
  • 1 x PCIe 5.0 x16 slot
• Intel® Z790 Chipset
  • 3 x PCIe 4.0 x16 slots (support x4 mode)
  • 1 x PCIe 3.0 x1 slot
• * Please check the PCIe bifurcation table on the support site (https://www.asus.com/support/FAQ/1037507/).
• - To ensure compatibility of the device installed, please refer to https://www.asus.com/support/ for the list of supported peripherals.

Storage:

• Total supports 3 x M.2 slots and 4 x SATA 6Gb/s ports*
• Intel® Core™ Processors (14th & 13th & 12th Gen)*
  • M.2_1 slot (Key M), type 2242/2260/2280/22110 (supports PCIe 4.0 x4 mode)
• Intel® Z790 Chipset
  • M.2_2 slot (Key M), type 2242/2260/2280 (supports PCIe 4.0 x4 mode)
  • M.2_3 slot (Key M), type 2242/2260/2280/22110 (supports PCIe 4.0 x4 & SATA modes)
  • 4 x SATA 6Gb/s ports
• * Intel® Rapid Storage Technology supports PCIe RAID 0/1/5/10, SATA RAID 0/1/5/10.

Ethernet:

• 1 x Realtek 2.5Gb Ethernet

Wireless & Bluetooth:

• Vertical M.2 slot only (Key E, CNVi & PCIe)*
• * Wi-Fi module is sold separately.

USB:

• Rear USB (Total 8 ports)
  • 1 x USB 3.2 Gen 2x2 port (1 x USB Type-C®)
  • 1 x USB 3.2 Gen 2 port (1 x Type-A)
  • 2 x USB 3.2 Gen 1 ports (2 x Type-A)
  • 4 x USB 2.0 ports (4 x Type-A)
• Front USB (Total 9 ports)
  • 1 x USB 3.2 Gen 2 connector (supports USB Type-C®)
  • 2 x USB 3.2 Gen 1 headers support 4 additional USB 3.2 Gen 1 ports
  • 2 x USB 2.0 headers support 4 additional USB 2.0 ports
• * USB_E1 port, USB_E2 port, USB_E3 port and USB_E4 port share the bandwidth.
• * USB_E5 port, USB_E6 port, USB_E7 port and USB_E8 port share the bandwidth.

Audio:

• Realtek 7.1 Surround Sound High Definition Audio CODEC*
  • Supports: Jack-detection, Multi-streaming, Front Panel Jack-retasking
  • Supports up to 24-Bit/192 kHz playback
• Audio Features
  • Audio Shielding
  • Premium audio capacitors
  • Dedicated audio PCB layers
• * A chassis with an HD audio module in the front panel is required to support 7.1 Surround Sound audio output.

Back Panel I/O Ports:

• 1 x USB 3.2 Gen 2x2 port (1 x USB Type-C®)
• 1 x USB 3.2 Gen 2 port (1 x Type-A)
• 2 x USB 3.2 Gen 1 ports (2 x Type-A)
• 4 x USB 2.0 ports (4 x Type-A)
• 1 x DisplayPort
• 1 x HDMI® port
• 1 x Vertical M.2 slot (Key E)
• 1 x Realtek 2.5Gb Ethernet port
• 3 x Audio jacks
• 1 x PS/2 Keyboard/Mouse combo port

Internal I/O Connectors:

• Fan and Cooling related
  • 1 x 4-pin CPU Fan header
  • 1 x 4-pin CPU OPT Fan header
  • 1 x 4-pin AIO Pump header
  • 3 x 4-pin Chassis Fan headers
• Power related
  • 1 x 24-pin Main Power connector
  • 1 x 8-pin +12V Power connector
  • 1 x 4-pin +12V Power connector
• Storage related
  • 3 x M.2 slots (Key M)
  • 4 x SATA 6Gb/s ports
• USB
  • 1 x USB 3.2 Gen 2 connector (supports USB Type-C®)
  • 2 x USB 3.2 Gen 1 headers support 4 additional USB 3.2 Gen 1 ports
  • 2 x USB 2.0 headers support 4 additional USB 2.0 ports
• Miscellaneous
  • 3 x Addressable Gen 2 headers
  • 2 x Aura RGB headers
  • 1 x Clear CMOS header
  • 1 x COM Port header
