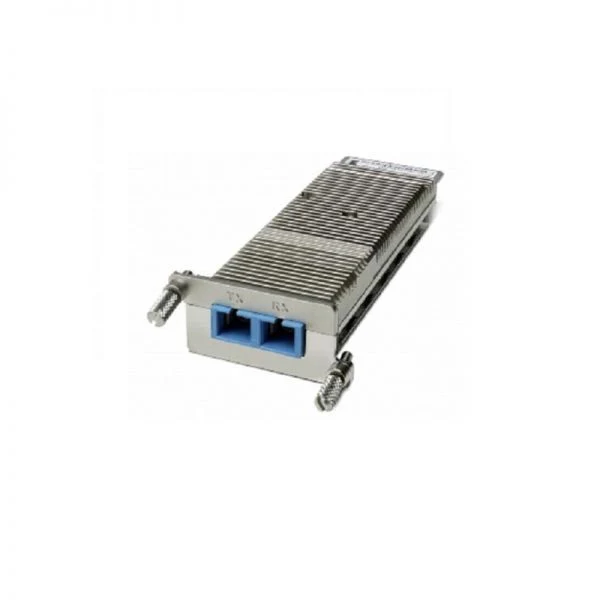

XENPAK, 10 Gigabit Ethernet, Short-Range, Optical Transceiver.

[properties]

Product Name	Cisco XENPAK-10GB-SR Optical Transceiver
Product Description	High-performance 10 Gigabit Ethernet short-range optical transceiver for multimode fiber applications.
Compatibility	Cisco networking equipment with XENPAK ports
Data Transfer Rate	10 Gbps
Form Factor	XENPAK
Connector Type	Dual SC/PC
Wavelength	850 nm
Maximum Distance	300 meters over 2000 MHz*km multimode fiber (OM3)
Hot-Swappable	Yes
Fiber Type	Multimode Fiber (MMF)
Core Size	50.0 µm
Modal Bandwidth	2000 MHz*km (OM3)

[/properties]

[specifications]

Standards Compliance	IEEE 802.3ae 10GBASE-SR
Transmit Power Range	-1.2 to -7.3 dBm
Receive Power Range	-1.0 to -9.9 dBm
Operating Temperature Range	0°C to 40°C (32°F to 104°F)
Storage Temperature Range	-40°C to 75°C (-40°F to 167°F)
Dimensions (W x D x H)	36 x 121 x 18 mm (1.42 x 4.76 x 0.71 inches)
Weight	< 300 g
Power Consumption	< 8W
Regulatory Compliance	GR-20-CORE, GR-326-CORE, GR-1435-CORE
Safety Standards	Laser Class 1 21CFR-1040 LN#50 7/2001, Laser Class 1 IEC60825-1

[/specifications]

The XENPAK-10GB-SR is a high-performance optical transceiver designed for use with 10 Gigabit Ethernet networks. It supports short-range connectivity with a maximum distance of up to 300 meters over multimode fiber, making it an ideal solution for data center and campus networking environments. The XENPAK-10GB-SR provides reliable and high-speed data transfer rates of up to 10 Gbps, ensuring fast and efficient data transmission. Its hot-swappable design makes it easy to install and manage, while its compact size ensures optimal use of space in network equipment. The XENPAK-10GB-SR is compatible with a wide range of Cisco networking equipment, providing businesses with flexibility in their network design. Whether you need to upgrade an existing network or build a new one, the XENPAK-10GB-SR is an ideal choice for businesses seeking reliable and high-speed connectivity in their networking infrastructure.
