[shortdesc] Ethernet Switch Module, Power over Ethernet (PoE), High-Density Connectivity. [/shortdesc]

[properties]

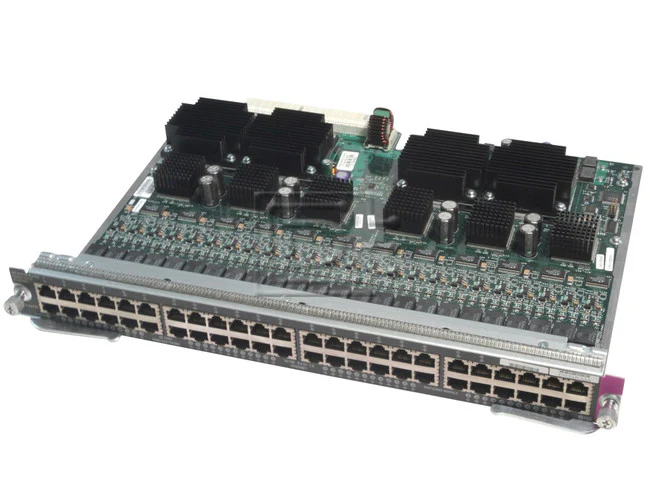

Product Name	Cisco WS-X4248-RJ45V Line Card
Product Description	48-port 10/100BASE-T Ethernet switching module with Power over Ethernet (PoE) support for Cisco Catalyst 4500 Series switches.
Compatibility	Cisco Catalyst 4500 Series switches
Ports	48 x 10/100BASE-T RJ-45
PoE Support	IEEE 802.3af compliant, up to 15.4W per port
Forwarding Rate	30 million packets per second (mpps)
Hot-Swappable	Yes
Maximum Power per Port	15.4W
Total PoE Budget	Dependent on chassis power supply

[/properties]
[specifications]

Interface Type	10/100BASE-T Ethernet
Connector Type	RJ-45
Standards Compliance	IEEE 802.3af, IEEE 802.3u
Operating Temperature Range	0°C to 40°C (32°F to 104°F)
Storage Temperature Range	-40°C to 75°C (-40°F to 167°F)
Relative Humidity	10% to 90% (non-condensing)
Dimensions (W x D x H)	14.4 x 1.2 x 16.0 inches (36.6 x 3.0 x 40.6 cm)
Weight	4.5 lbs (2.0 kg)

[/specifications]
The WS-X4248-RJ45V is an Ethernet switch module designed for use with Cisco Catalyst 4500 Series switches. It provides high-density connectivity with 48 10/100BASE-T RJ-45 ports, each capable of delivering Power over Ethernet (PoE) to connected devices. With a maximum power of 15.4 watts per port, the WS-X4248-RJ45V can power a wide range of PoE-enabled devices such as IP phones, wireless access points, and security cameras. The module features a high-performance architecture with a forwarding rate of up to 30 million packets per second, making it an excellent choice for businesses with high-bandwidth requirements. The WS-X4248-RJ45V is easy to install and manage, with hot-swappable capability for easy module replacement without disrupting the network. Overall, the WS-X4248-RJ45V is an ideal solution for businesses seeking high-density connectivity with PoE support for their networking needs.
