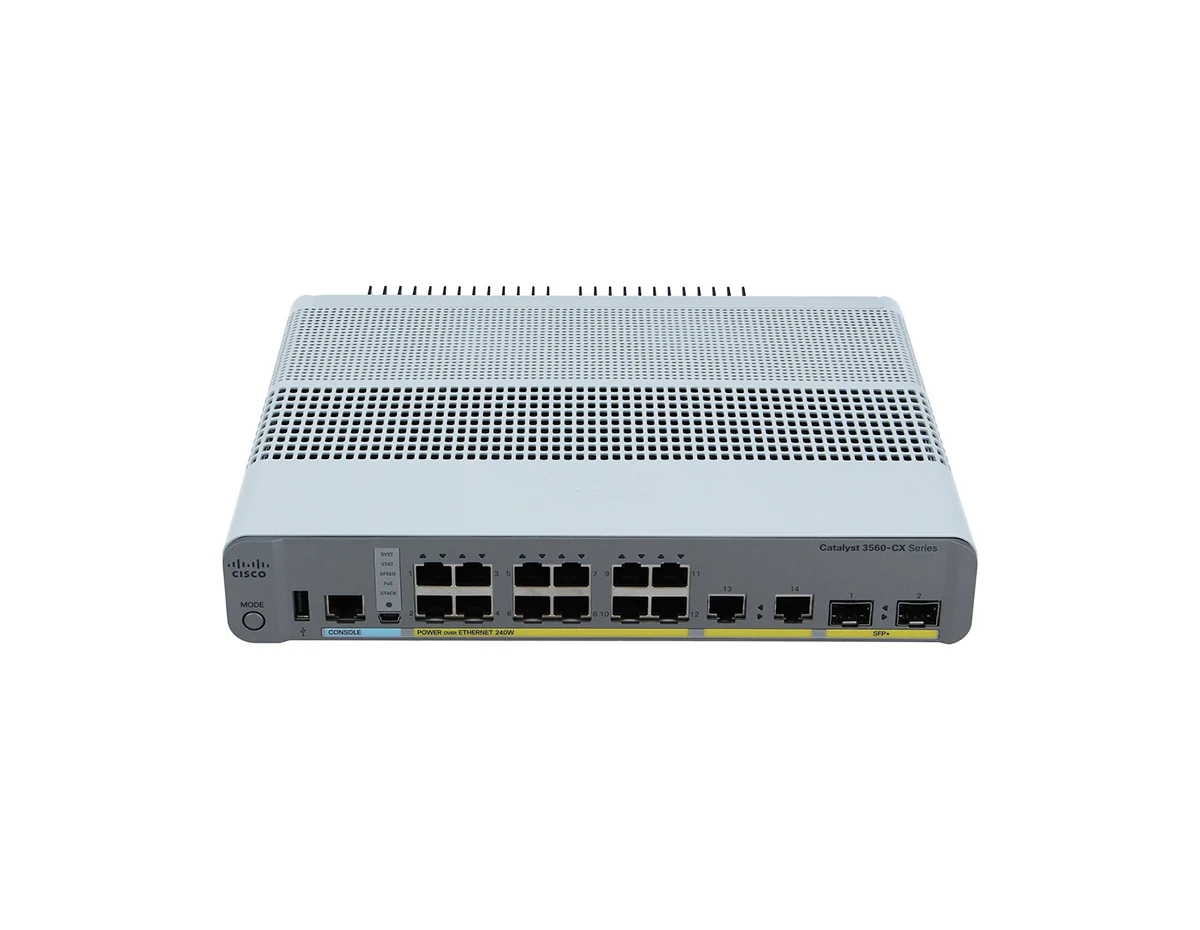

Cisco Catalyst WS-C3560CX-12PD-S Switch
[shortdesc]
- Managed, Fanless, 12 x 1G ports, 2 x 10G SFP+ Uplinks, PoE+ (240W), Layer 3
[/shortdesc]
[properties]
| Properties | WS-C3560CX-12PD-S |
| Description |
3560-CX Switch 12 GE PoE+, uplinks: 2 x 10G SFP+ and 2 x 1G copper, IP Base
|
| Product Family | Catalyst 3560 |
| Product Type | Ethernet Switch |
| Ethernet Ports | 12 x 10/100/1000 Gigabit Ethernet |
| PoE Output Ports | 12 PoE+ |
| Available PoE Power | 240W |
| Uplinks | 2 x 1G copper plus 2 x 10G SFP+ |
| Default Software | IP Base (IP Services with RTU License) |
| AC/DC input voltage and current | 100-240 VAC, 3.25-1.5A |
| Dimensions in. | 1.75 x 10.6 x 9.4 |
[/properties][specifications]
| Specifications | WS-C3560CX-12PD-S |
| DRAM | 512 MB |
| Flash Memory | 128 MB |
| Forwarding Rate | 50.6 mpps |
| Switching Bandwith | 68 Gbps |
| Max VLANs | 1023 |
| VLAN IDs | 4000 |
| Jumbo frames | 9198 bytes |
| MTBF | 528,48 |
| Operating Temperature Up to 5,000 ft (1500 m) |
-5 to 45 degree C |
| Operating Temperature Up to 10,000 ft (3000 m) |
-5 to 45 degree C |
| Safety |
● UL 60950-1 ● CAN/CSA 22.2 No. 60950-1 ● EN 60950-1 ● IEC 60950-1 ● CE Marking ● GB 4943 ● IEC 60825
|
| EMC: emissions |
● FCC Part 15, CFR 47, Class A, North America ● EN/IEC 61000-4-5 ● EN 55022 (CISPR22) and EN 55024 (CISPR24), CE marking, European Union ● AS/NZS, Class A, CISPR22:2004 or EN55022, Australia and New Zealand ● VCCI Class A, V-3/2007.04, Japan ● KCC (Formerly MIC, GB17625.1-1998) Class A, KN24/KN22, Korea ● ANATEL, Brazil ● CCC, China ● GOST, Russia
|
| Environmental | Reduction of Hazardous Substances (RoHS) 6 |
| Telco |
Common Language Equipment Identifier (CLEI) code
|
| Telnet - SSH | Yes |
| TACACS+ | Yes |
| Engine Type | 1D Imager |
[/specifications][accesories]
| PWR-CLP= | Power clip for the 3560-CX and 2960-CX compact switches |
| CMPCT-CBLE-GRD= | Cable guard for the 3560-CX and 2960-CX compact switches |
| CMPCT-MGNT-TRAY = | Magnet and Mounting Tray for 3560-CX and 2960-CX compact switches |
| CMPCT-DIN-MNT= | DIN Rail Mount for 3560-CX and 2960-CX compact switches |
| RCKMNT-19-CMPCT= | 19-Inch Rack Mounting Brackets for 3560-CX and 2960-CX compact switches |
| RCKMNT-23-CMPCT= | 23- and 24-Inch Rack Mounting Brackets for 3560-CX and 2960-CX compact switches |
[/accesories]
Cisco Catalyst WS-C3560CX-12PD-S Switch
The Cisco Catalyst WS-C3560CX-12PD-S Switch is a powerful and compact solution for modern networks requiring high-speed connectivity and Power over Ethernet (PoE) support. Equipped with 12 Gigabit Ethernet PoE+ ports and 2 SFP+ uplinks, this fanless switch provides reliable, silent operation and is ideal for space-constrained environments like offices and branch locations. Its advanced Layer 3 IP Base software supports a range of networking features, making it perfect for growing businesses.
Key Features:
- 12 x PoE+ Gigabit Ethernet Ports: Provides up to 240W of PoE+ budget, powering devices like IP phones and cameras.
- 2 x 10G SFP+ Uplinks: Offers high-speed fiber connectivity for seamless network expansion.
- Fanless Design: Ensures silent operation, ideal for noise-sensitive environments.
- Advanced Layer 3 Functionality: Supports IP Base features, including OSPF, EIGRP, and VRF-Lite for enhanced routing and security.
- Energy-Efficient: Complies with IEEE 802.3az standards, reducing power consumption without compromising performance.
Technical Overview:
- Recommended for: Small and medium-sized businesses, branch offices, and retail spaces.
- Ports: 12 x 10/100/1000 Mbps Gigabit Ethernet PoE+ ports.
- Uplink Modules: 2 x 10G SFP+ uplinks.
- Switching Capacity: 68 Gbps.
- Forwarding Rate: 50.6 Mpps.
- Layer 3 Features: OSPF, BGP, EIGRP, and VRF-Lite for advanced network control.
- Management: Web UI, CLI, SNMP, and Cisco DNA Center.
- Licensing: IP Base.
- Energy Efficiency: Supports IEEE 802.3az for energy-saving operations.
You can check the related tab for the WS-C3560CX-12PD-S datasheet.
