• Ubiquiti USW-PRO-MAX-24-POE is a 24-port Layer 3 UniFi switch featuring PoE++ support, high-speed 2.5GbE ports, and 10G SFP+ uplinks, optimized for enterprise networking

[/shortdesc]

[properties]

Property
Model	USW-Pro-Max-24-PoE
Product Type	24-port, Layer 3 Etherlighting™ switch with PoE++ capability
Dimensions	442 x 325 x 44 mm (17.4 x 12.8 x 1.7")
Weight	Without mounting brackets: 5.1 kg (11.3 lb); With mounting brackets: 5.2 kg (11.5 lb)
Enclosure Material	SGCC steel
Form Factor	Rack mount (1U)
Etherlighting™	Yes
Operating Temperature	-5 to 40° C (23 to 104° F)
Operating Humidity	10 to 90% noncondensing
Certifications	CE, FCC, IC

[/properties]

[specifications]

Specification
Port Layout	- 16 x 1 GbE RJ45 (8 PoE+; 8 PoE++)
	- 8 x 2.5 GbE RJ45 (All PoE++)
	- 2 x 10G SFP+
Total Non-Blocking Throughput	56 Gbps
Switching Capacity	112 Gbps
Forwarding Rate	83 Mpps
Supported VLANs	1
MAC Address Table Size	16
L3 Table Size (ARP Entries)	6
Packet Buffer Size	1.5 MB
PoE Ports	- 8 x PoE+
	- 16 x PoE++
Max. PoE Wattage per Port	- PoE: 15.4W
	- PoE+: 32W
	- PoE++: 64W
Total Available PoE	400W
Max. Power Consumption	- 50W (Excluding PoE Output)
	- 450W (Including PoE Output)
Power Method	- Universal input, 100—240V AC, 50/60 Hz
	- USP RPS DC input
Power Supply	AC/DC, internal, 550W
Supported Voltage Range	100—240V AC
Heat Dissipation	170.6 BTU/hr (Excluding PoE Output)
LCM Display	1.3" touchscreen

[/specifications]

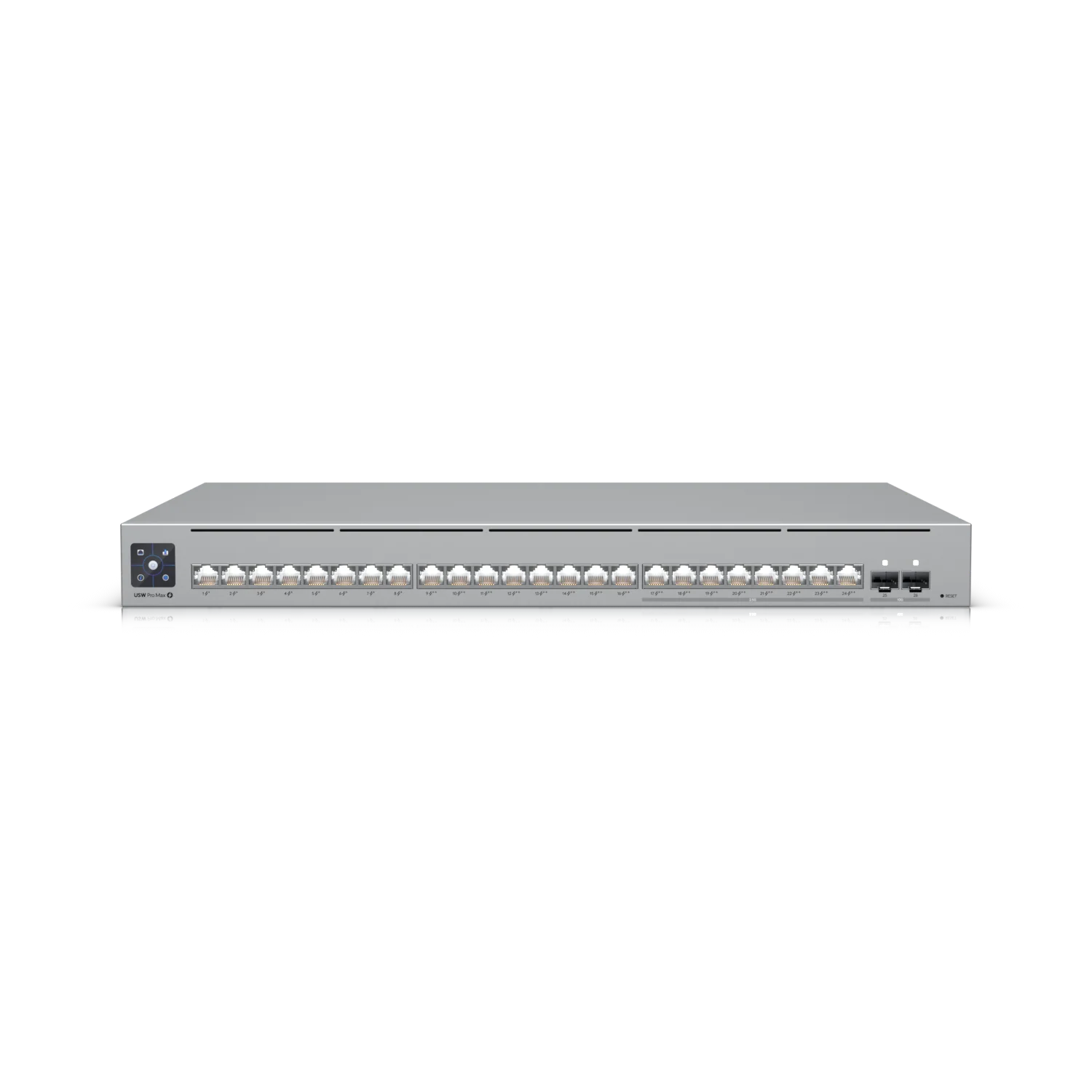

Ubiquiti USW-PRO-MAX-24-POE UniFi Switch 24xGE POE 2x10G SFP+

The Ubiquiti USW-PRO-MAX-24-POE is a high-performance Layer 3 UniFi switch designed for businesses and enterprise environments requiring advanced networking features and PoE++ support. Equipped with 24 RJ45 ports, including 16 PoE++ and 8 PoE+ ports, this switch delivers a total PoE budget of 400W. Additionally, it features 8 x 2.5GbE RJ45 ports and 2 x 10G SFP+ uplinks for ultra-fast connectivity. With a rack-mountable 1U form factor, Etherlighting™ technology, and advanced security protocols, the USW-PRO-MAX-24-POE ensures seamless network performance and management.

Key Features:

• Enterprise-Grade Networking: 24 RJ45 ports, including 16 PoE++ and 8 PoE+ ports.
• High-Speed Uplinks: 8 x 2.5GbE RJ45 ports and 2 x 10G SFP+ uplinks for high-bandwidth applications.
• Powerful PoE Support: PoE+ (32W per port) and PoE++ (64W per port) with a total power budget of 400W.
• Advanced Layer 3 Features: Supports DHCP server, DHCP relay, inter-VLAN routing, and static routing.
• Etherlighting™ Technology: Provides visual port status indication for easy diagnostics.
• Comprehensive Security: 802.1X authentication, DHCP snooping, MAC-based ACLs, and port isolation.
• Optimized for Audio/Video Streaming: Features QoS (DSCP), IGMP snooping, Pro AV profiles, and multicast control.
• Compact & Efficient: 1U rack-mountable design with an LCM touchscreen display.

Technical Specifications:

• Switching Capacity: 112 Gbps
• Total Non-Blocking Throughput: 56 Gbps
• Forwarding Rate: 83 Mpps
• Supported VLANs: 1,000
• MAC Address Table: 16,000 entries
• Layer 3 Features: DHCP Server, DHCP Relay, Inter-VLAN Routing, Static Routing
• Layer 2 Features: LACP, STP, RSTP, IGMP Snooping, QoS, Port Mirroring, Jumbo Frames
• PoE Ports: 16 PoE++ ports, 8 PoE+ ports
• PoE Power Budget: 400W
• Power Consumption: 50W (excluding PoE), 450W (including PoE)
• Power Supply: Internal AC/DC, 550W
• Form Factor: Rack mount (1U)
• LCM Display: 1.3" touchscreen
• Operating Temperature: -5°C to 40°C (23°F to 104°F)
• Operating Humidity: 10% to 90% non-condensing
• Certifications: CE, FCC, IC
• Dimensions: 442 x 325 x 44 mm (17.4 x 12.8 x 1.7")
• Weight: 5.1 kg (11.3 lb) without brackets, 5.2 kg (11.5 lb) with brackets
