Ubiquiti US-48-500W Unified Managed PoE+ Gigabit Switch
[shortdesc]
- Unifi Managed PoE+ Gigabit Switch, SFP
[/shortdesc]
[properties]
| Properties | US-48-500W |
| Description | The US-48-500W is a versatile and powerful 48-port Gigabit switch with PoE support, providing ample connectivity for network devices. Its 500W power budget ensures reliable PoE performance, making it ideal for small to medium-sized networks requiring high-speed data transfer and PoE capability. |
| Product Family | UniFi Switch |
| Product Type | Switch |
[/properties] [specifications]
| Specifications | US-48-500W |
| Dimensions | 485 x 43.7 x 374.6 mm (19.09 x 1.72 x 14.75") |
| Weight | 6.1 kg (13.5 lb) |
| Networking Interfaces | (48) 10/100/1000 Mbps RJ45 Ethernet Ports (2) 1/10 Gbps SFP+ Ethernet Ports (2) 1 Gbps SFP Ethernet Ports |
| Management Interface | (1) RJ45 Serial Port Out-of-Band, Ethernet In-Band |
| Total Non-Blocking Throughput | 70 Gbps |
| Switching Capacity | 140 Gbps |
| Forwarding Rate | 104.16 Mpps |
| MAC Address Table | 16384 |
| Maximum Aggregations | 6 |
| Monitoring Sessions | 1 |
| Maximum VLANs | 255 |
| Power Method | 100-240VAC/50-60 Hz, Universal Input |
| Power Supply | AC/DC, Internal, 500W DC |
| Max. Power Consumption | Including PoE Output: 500W Excluding PoE Output: 60W |
| LEDs Per Port | RJ45 Data Ports: PoE, Speed/Link/Activity SFP Data Ports: Speed/Link/Activity |
| Sound Level* * Background noise level: 27.5 dBa |
Fan Level 0: 10.7 dBr Fan Level 1: 16.2 dBr Fan Level 2: 19.3 dBr Fan Level 3: 23.6 dBr |
| PoE+ Per Port | |
| PoE Interfaces | PoE+ IEEE 802.3af/at (Pins 1, 2+; 3, 6-) 24VDC Passive PoE (Pins 4, 5+; 7, 8-) |
| Max. PoE+ Wattage per Port by PSE | 34.2W |
| Voltage Range 802.3at Mode | 50–57V |
| Max. Passive PoE Wattage per Port | 17W |
| 24V Passive PoE Voltage Range | 20-27V |
[/specifications] [accesories] [/accesories]

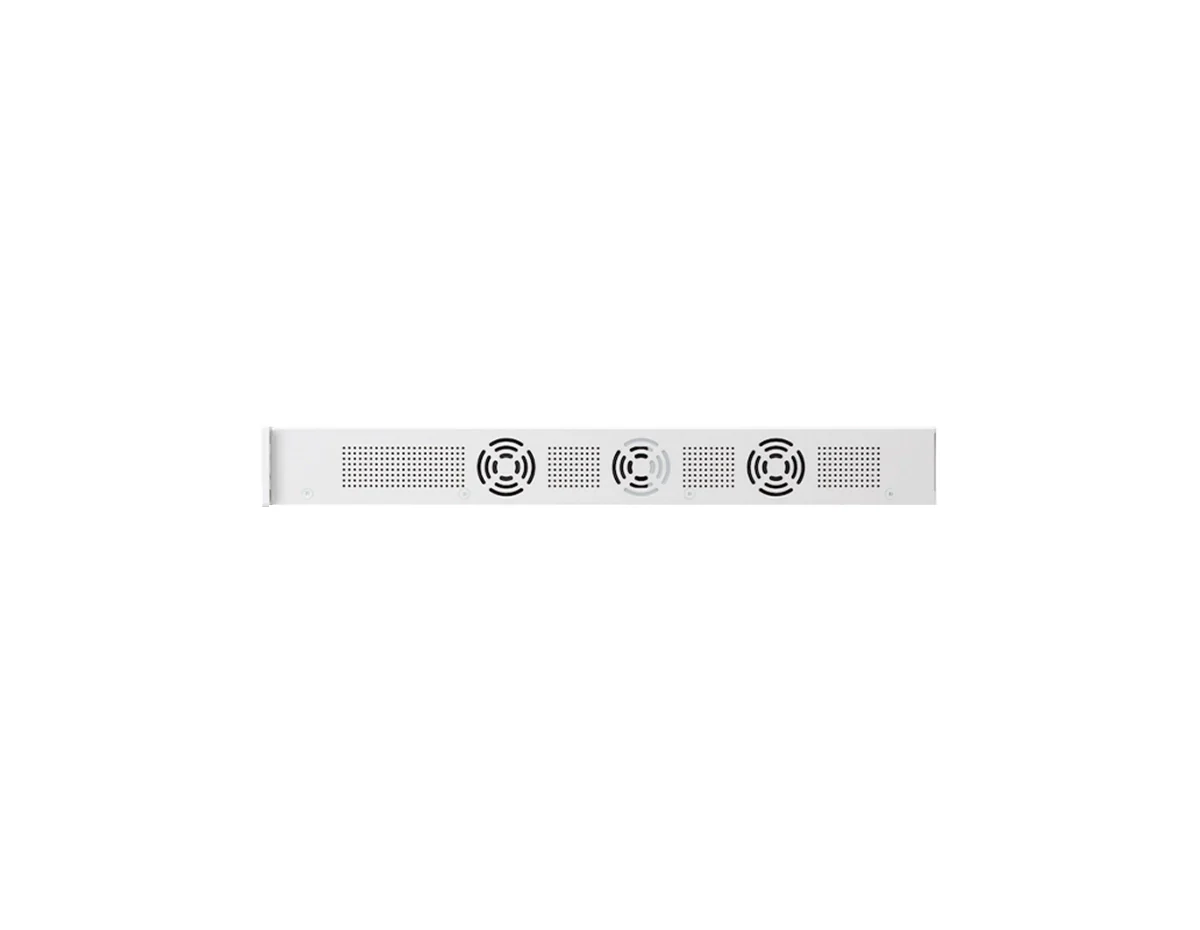

Ubiquiti US-48-500W Switch
The Ubiquiti US-48-500W UniFi Switch is a comprehensively managed 48-port PoE+ Gigabit switch designed to provide strong performance and intelligent switching capabilities for expanding networks. Additionally, it offers the capacity to process traffic on all ports simultaneously at line rate without experiencing any packet loss. The Ubiquiti US-48-500W UniFi Switch facilitates the expansion of business networks with exceptional performance.
Quick Specs:
- 48x 10/100/1000 Mbps RJ45 Ethernet Ports
- 2x 1/10G SFP+ ports for uplink
- 2x 1G SFP Ethernet Ports
- Non-blocking throughput: 70 Gbps
- Managed PoE+ Gigabit Switch
Please see the related tabs for the US-48-500W datasheet and compatible accessories.
