[properties]

Properties	US-24
Description	Non-Blocking Throughput Switching Performance
Product Family	Managed Gigabit Switches with SFP
Product Type	Switch
Overview	US-24 is with 24 or 48 RJ45 Gigabit ports, the UniFi Switch is a fully managed Gigabit switch,
Total Non-Blocking Throughput	26 Gbps
Switching Performance	For its total, non‑blocking throughput, the 24‑port model supports up to 26 Gbps, while the 48-port model supports up to 70 Gbps.
Fiber Connectivity	Each model includes two SFP ports for uplinks of up to 1 Gbps. The 48‑port model adds two SFP+ ports for high-capacity uplinks of up to 10 Gbps

[/properties] [specifications]

Specifications	US-24
Dimensions	443 x 43 x 221 mm (17.44 x 1.69 x 8.70")
Weight With Rackmount Brackets	2.51 kg (5.53 lb) 2.60 kg (5.70 lb)
Gigabit RJ45 Ports	24
Networking Interfaces	(24) 10/100/1000 Mbps RJ45 Ethernet Ports (2) 1 Gbps SFP Ethernet Ports
Management Interface	(1) RJ45 Serial Port Out-of-Band, Ethernet In-Band
Total Non-Blocking Throughput	26 Gbps
Switching Capacity	52 Gbps
Forwarding Rate	38.69 Mpps
Power Method	100-240VAC/50-60 Hz, Universal Input
Power Supply	AC/DC, Internal, 25W DC
Max. Power Consumption	25W
LEDs per Port	Speed/Link/Activity
Sound Level*	Fan Level: 0 - 1.6 dBr Fan Level: 1 - 9.2 dBr
ESD/EMP Protection	Air: ± 24 kV, Contact: ± 24 kV
Rack Mount	Yes, 1U High
Shock and Vibration	ETSI300-019-1.4 Standard
Operating Temperature	(-5 to 40° C (23 to 104° F))
Operating Humidity	5 to 95% Noncondensing
Certifications	CE, FCC, IC
* Background noise level: 27.5 dBa

[/specifications] [accesories] [/accesories]

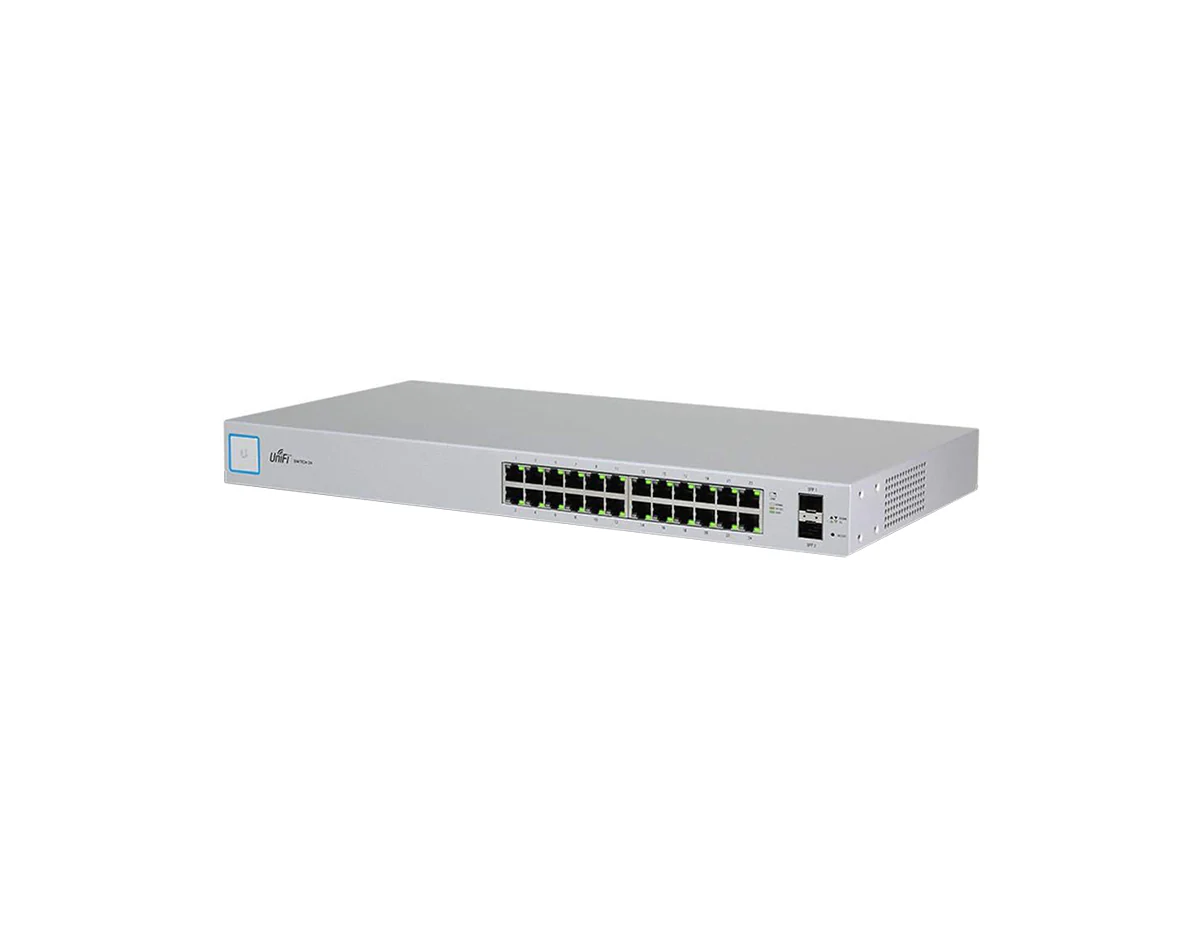

The Switch 24 is a powerful and versatile managed switch that operates without a fan. This device features 24 Gigabit Ethernet RJ45 ports and 2 1G SFP ports, providing Gigabit connectivity for Ethernet devices and fiber uplink options that are ideal for enterprise networks. The switch supports a wide range of Layer 2 switching protocols and offers different port-specific operation modes, such as switching, mirroring, or aggregation. With its 1.3" LCM color touchscreen, users can easily access system and connection information. The switch can be remotely monitored and configured using the UniFi Network web application and mobile app, which are intuitive and user-friendly.

Quick Specs:

• 24x Gigabit RJ45 Ports
• 2x SFP uplink ports
• Switching Capacity: 52Gbps
• Rack-mountable

Please see the related tabs for the US-24 datasheet and compatible accessories.
