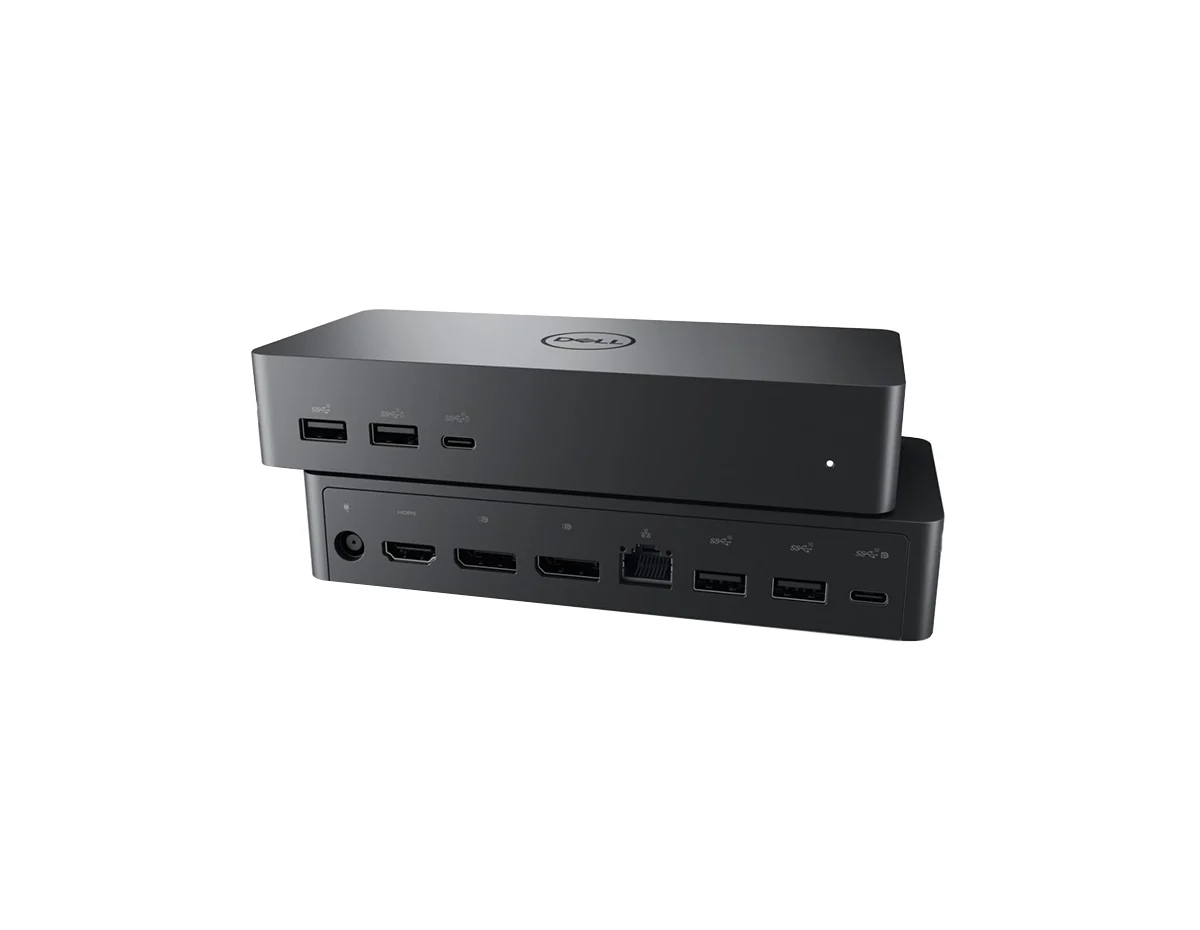

Technical Specifications	UD22 Universal Dock
Product Type	Docking Station
Display Support with Dual USB-C input	If PC has DisplayLink drivers installed: For a HBR2* PC 2 x 4K @ 60Hz + 2 x FHD @60Hz 2 x 4K @ 60Hz + 1 x 4K @30Hz For a HBR3 PC 2 x 4K @ 60Hz + 2 x QHD @60Hz 2 x 4K @ 60Hz + 1 x 4K @30Hz For HBR3 PC (supporting Display Stream Compression) 4 x 4K @ 60Hz If PC does not have DisplayLink drivers installed1: For a HBR2 PC 2 x FHD @60Hz 1 x 4K @ 30Hz For a HBR3 PC 2 x QHD @60Hz 2 x 4K @ 30Hz For HBR3 PC (supporting Display Stream Compression) 2 x 4K @ 60Hz
Max Resolution	5K @ 60Hz with HBR3 systems supporting Display Stream Compression
Video interfaces	1 x HDMI 2.0 2 x DP 1.2 1 x USB-C 3.2 Gen2 with DisplayPort 1.4 Alt Mode
USB Ports	USB-A: 4 x USB 3.2 Gen 2 (1 with PowerShare) USB-C: 1 x USB 3.2 Gen 2 with PowerShare; 1 x USB 3.2 Gen 2 with DisplayPort 1.4 Alt Mode
Networking	Gigabit Ethernet
Security Slot Type (cable lock sold separately	1 x Kensington security-cable slot 1 x Kensington nano lock slot
LED Indicators	Power Adapter LED Dock Status Indicator RJ45 LEDs
Power	Power Adapter 130 Watt AC with up to 96 Watt power delivery to any USB-C Notebook
Dimensions	6.53in x 2.99in x 1.26in
Dock Weight (without power adapter)	416 g (0.92 lb)
Operating Systems	Windows 10 Windows 11 Ubuntu 20.04 and later Mac OS 12.2.1 and later ChromeOS R100 and later
Systems Management	Wireless vPro supported by the notebook, tablet, or workstation Kernel Direct Memory Access (DMA) protection
Docking Interface	Type-C Connector
MAC Address	Pass Through MAC Address
Management Features	Wake-On-LAN3 MAC address pass-through

[/specifications] [accesories] [/accesories]

Experience the ultimate universal dock, equipped with 10 ports, for any USB-C notebook.
