[shortdesc] 4× Gigabit RJ45 ports, 8 Gbps switching, 7–57 VDC input, -40 to 75°C, DIN-rail mount, IP30 [/shortdesc]

[properties]

Model	TSW304
Product Type	Industrial Ethernet Switch
Ethernet Ports	4 × RJ45 10/100/1000 Mbps; auto MDI/MDIX
Ethernet Standards	IEEE 802.3i, 802.3u, 802.3ab, 802.3x, 802.3az
Non-blocking Bandwidth	8 Gbps
Jumbo Frame Support	9216 bytes
MAC Address Table	2K entries
Packet Buffer	128 KB
Industrial Protocols	Profinet Class A conformance (optional order code)
Power Connector	2-pin industrial DC power socket
Input Voltage Range	7–57 VDC; 9–40 VAC
Passive PoE (Power-in)	Via ETH1, Mode B, 9–30 VDC; not compatible with IEEE 802.3af/at/bt
Power Consumption	Idle: 0.26 W / Max: 1.44 W
Status LEDs	8 × ETH status LEDs; 1 × Power LED
RJ45 LED Meaning	Orange on: link 10/100 Mbps; Orange blinking: active; Green on: link 1000 Mbps
Casing Material	Aluminium housing
Dimensions (W × H × D)	102 × 25 × 81.5 mm
Weight	210 g
Mounting Options	Integrated DIN rail bracket; wall/flat surface (additional kit needed)
Operating Temperature	−40 °C to 75 °C
Operating Humidity	5% to 95% non-condensing
Ingress Protection	IP30
Regulatory Approvals	CE, REACH, RoHS, WEEE, UKCA, FCC, IC, CB, RCM
Safety Standards	EN IEC 62368-1:2020+A11:2020; IEC 60068-2-6/-27/-31

[/properties]

[specifications]

Ports & Speed	4 × ETH ports, 10/100/1000 Mbps; supports auto MDI/MDIX crossover
Supported Standards	IEEE 802.3i, 802.3u, 802.3ab, 802.3x, 802.3az
Performance	Non-blocking bandwidth 8 Gbps; Packet buffer 128 KB; MAC table 2K; Jumbo frame 9216 bytes
Power Input	2-pin DC socket; 7–57 VDC or 9–40 VAC
Passive PoE (in)	Power-in through ETH1, Mode B, 9–30 VDC; not IEEE 802.3af/at/bt compatible
Power Consumption	Idle 0.26 W; Max 1.44 W
Status Indicators	8 × ETH LEDs; 1 × Power LED
RJ45 LED Logic	Orange on: 10/100 link; Orange blinking: activity; Green on: 1000 Mbps link
Enclosure	Aluminium; integrated DIN rail bracket; wall/flat surface mounting (kit required)
Physical Size	102 × 25 × 81.5 mm; 210 g
Environmental	Operating −40 °C to 75 °C; 5–95% RH non-condensing; IP30
Compliance	CE, REACH, RoHS, WEEE, UKCA, FCC, IC, CB, RCM; Safety: EN IEC 62368-1:2020+A11:2020; IEC 60068-2-6/-27/-31
Industrial Protocols	Profinet Class A conformance (optional)

[/specifications]

[accesories]

Included	TSW304 unit; QSG (Quick Start Guide); Packaging box
Optional – Mounting	Wall-mount and flat-surface mounting kits (required for those methods)
Optional – Version	Profinet Class A conformance variant (order code option)

[/accesories]

Rugged Gigabit Connectivity for Tight Industrial Spaces

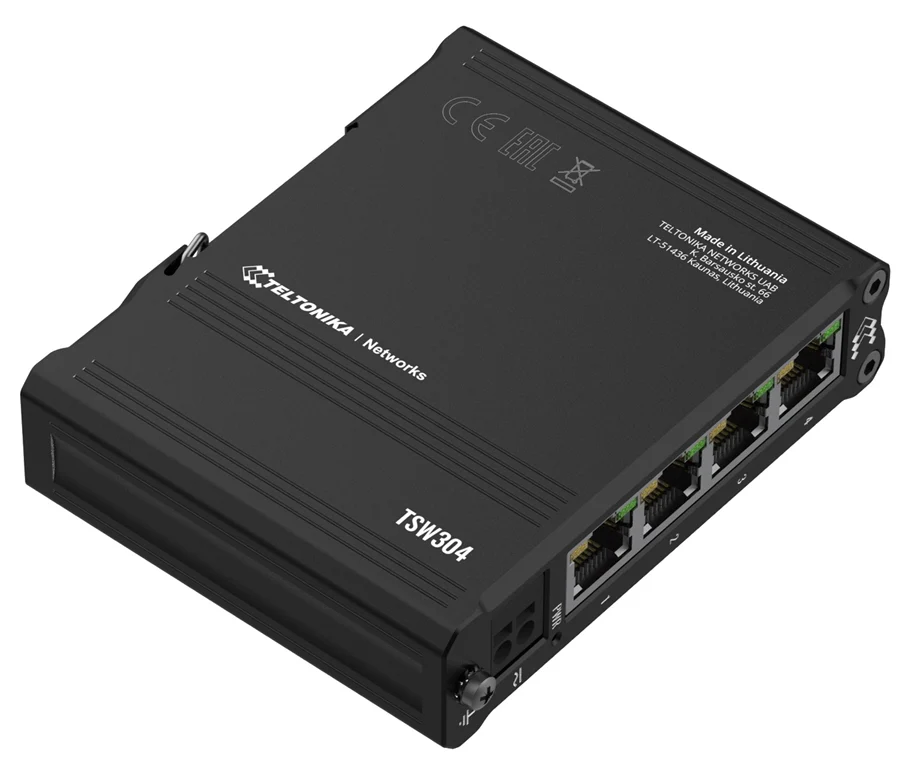

Teltonika’s TSW304 is a compact, unmanaged 4-port Gigabit Ethernet switch engineered for control panels and cabinets where space, power, and uptime matter. An aluminum IP30 enclosure, wide 7–57 VDC input and -40 to 75°C operating range keep links stable in harsh environments, while a non-blocking 8 Gbps fabric ensures full-speed traffic across all ports.

Key Benefits & Features

• 4× GbE RJ45: Auto-MDI/MDIX 10/100/1000 Mbps ports for flexible copper uplinks and edge devices.
• Wire-speed switching: 8 Gbps non-blocking bandwidth with jumbo frame support up to 9216 bytes for efficient payloads.
• Industrial power options: 2-pin DC input (7–57 VDC or 9–40 VAC) with passive PoE power-in via ETH1 (Mode B, 9–30 VDC) for simplified installs.
• Hardened build: -40 to 75°C, IP30 aluminum housing, integrated DIN-rail bracket for fast, secure mounting.
• Standards & compliance: IEEE 802.3i/u/ab/x/az support with CE, FCC, UKCA and other certifications for global deployments.

Ideal Use Cases

• Industrial automation panels and PLC networks needing compact GbE aggregation
• Transportation and building systems requiring extended-temperature switching
• Energy, utilities, and SCADA cabinets with DIN-rail power distribution
• IP cameras and sensors at the edge where unmanaged simplicity is preferred

Technical Specifications

• Ports: 4× RJ45 10/100/1000 Mbps (auto MDI/MDIX)
• Switching capacity: 8 Gbps (non-blocking)
• Buffer / MAC: 128 KB packet buffer, 2K MAC entries
• Jumbo frames: Up to 9216 bytes
• Power input: 7–57 VDC or 9–40 VAC via 2-pin socket
• Passive PoE-in: ETH1, Mode B, 9–30 VDC
• Power draw: 0.26 W idle / 1.44 W max
• Operating range: -40 to 75°C; 5–95% RH non-condensing
• Enclosure & size: Aluminum, 102 × 25 × 81.5 mm; 210 g
• Mounting: Integrated DIN-rail; wall/flat mount with kit

Deploy with Confidence

Power-efficient, standards-compliant, and built for harsh sites, the TSW304 delivers reliable Gigabit switching in minutes. Order today. Please note: An additional shipping fee may apply to this product. Kindly contact us regarding the shipping fee after placing your order.
