Teltonika TSW212 Layer 2 Managed Ethernet Switch with IPv6 Support (TSW212000000)
[shortdesc]L2, ManagedĀ Ā [/shortdesc]
Ā
[properties]
| Product Name | Teltonika TSW212 (SKU: TSW212000000) |
| Description | TSW212 is a Layer 2 managed Ethernet switch with additional Layer 3 features, including DHCPv6 client support and static IPv6 routing, designed for advanced network management in industrial environments. |
| Brand | Teltonika Networks |
| Product Category | Managed Ethernet Switches |

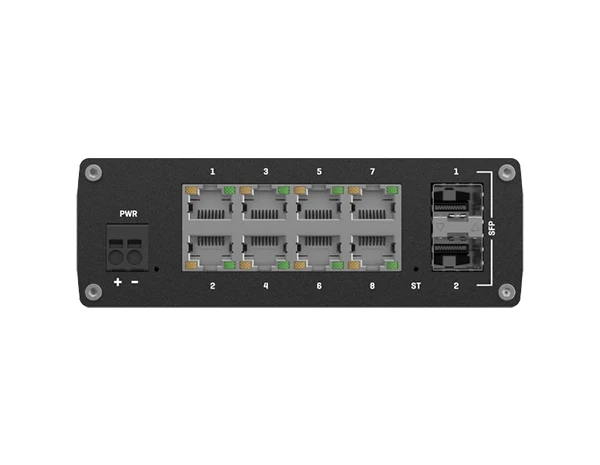

| Ethernet Ports | 8 x RJ45 ports, 10/100/1000 Mbps, compliant with IEEE 802.3i, IEEE 802.3u, IEEE 802.3ab, IEEE 802.3x standards, supporting auto MDI/MDIX crossover |
| SFP Ports | 2 x SFP ports for fiber optic communication |
| Dimensions (W x H x D) | 132 x 44.2 x 122.2 mm |
| Weight | 370 g |
| Casing Material | Anodized aluminum housing and panels |
| Certifications | CE, REACH, RoHS, WEEE, UKCA, FCC |
| Safety Standards | EN IEC 62368-1:2020+A11:2020 |
[/properties]Ā
[specifications]
| MAC Address Table Size | 8K entries |
| Bandwidth (Non-blocking) | 20 Gbps |
| Jumbo Frame Support | 9600 bytes |
| Packet Buffer | 1.5 MB |
| IPv6 Support | DHCPv6 client, Static IPv6 routing |
| Power Supply | 4-pin industrial DC power socket |
| Input Voltage Range | 9 ā 57 VDC |
| Power Consumption | Idle: 2.4 W / Max: 6.8 W |
| Mounting Options | DIN rail or surface mounting |
| LED Indicators | 1 x Power LED, 8 x Ethernet link/activity LEDs, 2 x SFP status LEDs |
| Ingress Protection Rating | IP30 |
| Operating Temperature | -40Ā°C to 75Ā°C |
| Operating Humidity | 10% to 90% non-condensing |
[/specifications]
TELTONIKA TSW212 Layer 2 Managed Ethernet Switch with IPv6 Support (TSW212000000)
The Teltonika TSW212 is a Layer 2 managed Ethernet switch with 8 Gigabit Ethernet ports and 2 SFP ports for fiber communication. It features IPv6 support, industrial protocol compatibility, and robust performance in harsh environments, making it ideal for industrial and networking applications.
Key Features:
- 8 x Gigabit Ethernet ports and 2 x SFP ports
- IPv6 and Layer 3 feature support
- Industrial protocol compatibility
- Operating temperature: -40Ā°C to 75Ā°C
