[shortdesc]

• Print Speed: 200 mm/sec ,Resolution: 203 dpi, Interface: USB 2.0 Full Speed

[/shortdesc]

[properties]

Product Name	TSP143IIU
Description	Star Micronics TSP143IIU, a thermal receipt printer with USB connectivity, designed for point-of-sale (POS) systems and retail environments.
Printing Method	Thermal line printing
Print Speed	Up to 250 mm/sec
Resolution	203 dpi (8 dots/mm)
Print Width	80 mm (3.15 in)
Interface	USB 2.0
Cutter	Auto-cutter (guillotine type) with 1.5 million cuts rated life
Paper Roll Diameter	Up to 83 mm (3.27 in)
Paper Thickness	0.053 to 0.085 mm
Operating Temperature	5°C to 45°C (41°F to 113°F)
Storage Temperature	-20°C to 60°C (-4°F to 140°F)
Humidity	10% to 90% RH (non-condensing)
Dimensions	14.2 cm x 20.4 cm x 13.2 cm (5.6 in x 8.0 in x 5.2 in)
Weight	1.72 kg (3.79 lb)
Compatibility	Compatible with Windows, iOS, and Android POS systems
Usage	Suitable for retail, hospitality, and service industry applications
Durability	Print head rated for 100 km of printing

[/properties]

[specifications]

Connectivity	USB 2.0 Type B connector for direct connection to POS systems
Certifications	CE, FCC, UL, RoHS compliant
Environmental Safety	Complies with RoHS 3 (Directive 2015/863/EU) for hazardous substances
EMC Compliance	Meets EN 55032, EN 55024, and FCC Part 15 standards
MTBF	>360,000 hours
Cutter Life	Auto-cutter rated for up to 1.5 million cuts
Print Head Life	Print head rated for up to 100 km of printed receipts
Power Supply	Input: AC 100-240V, Output: DC 24V
Power Consumption	Operating: 48W, Standby: 2W
Operating Noise	<55 dB during printing
Firmware Updates	Supports firmware updates via USB connection
Paper Loading	Drop-in and print paper loading for easy replacement
Deployment	Optimized for countertop installation in POS setups
Reliability	Manufactured for high-volume printing environments, with rigorous testing for performance
Monitoring	Status indicators for power, error, and paper status

[/specifications]

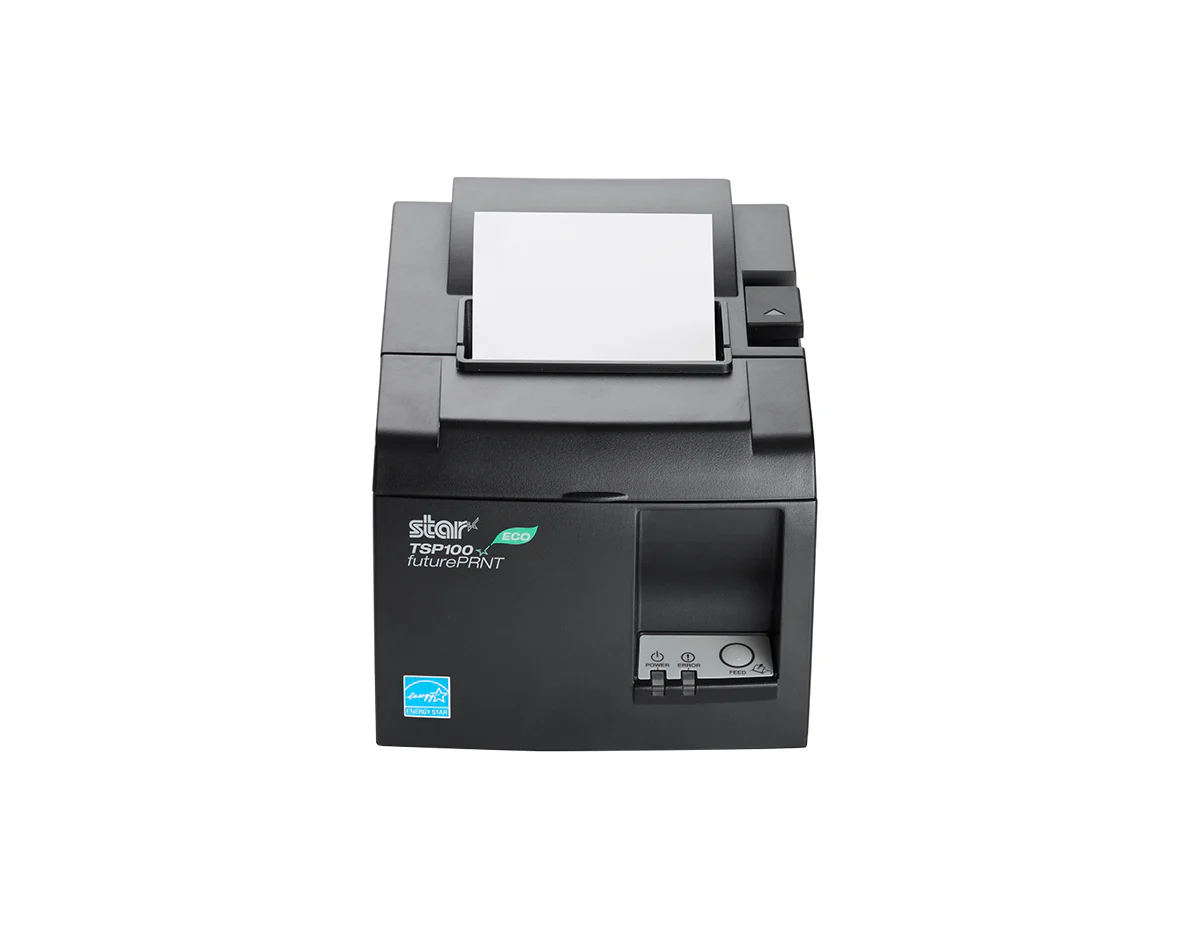

TSP143IIU USB Receipt Printer

The TSP143IIU is a reliable and economical USB receipt printer. Known for its high-quality thermal printing, it offers an easy setup process and includes all necessary accessories. The printer supports a maximum print speed of 200 mm/s and features an autocutter for efficient receipt management. It's compatible with futurePRNT software and is Energy Star certified, making it an environmentally friendly choice.

Specifications

• Max. Print Speed: 200 mm/sec.
• Resolution: 203 dpi
• No. of Columns: 48 / 64 col. Depending on Paper Width
• Autocutter: Partial (Guillotine) Autocutter
• Paper Width: 80 mm (58 mm Using Paper Guide)
• Paper Thickness: 0.053 - 0.085 (TSP100III Series) with flat Paper
• Paper Roll Standard Option: 83 mm
• Print Width: 50.8 mm (58 mm Paper) 72 mm (80 mm Paper)
• Sensors: Paper End, Cover Open
• Interface: USB 2.0 Full Speed with Cable Supplied and “Virtual” Serial Port Emulator.
• Additional Software: futurePRNT driver and Star Cloud Services including digital receipting
• Power Supply: Internal with Power Cable included
• Power Consumption: 1.6 Amps Printing 0.1 Amps Standby
• Reliability: 60 Million Lines 2 Million Cuts
• Dimensions (W x D x H): 142 x 204 x 132 mm
• Weight: 1.56kg - 1.76kg

Technical Details

Category	Specifications
Type	Voucher printer
Technology	Thermal direct
Print Resolution	203 dpi
Printing Speed (max.)	200 mm/s
Colour	Dark grey
Paper	Bon, Breite: 58 mm, 80 mm
Interfaces	USB 1x
Dimensions (W x D x H)	142 mm x 204 mm x 132 mm
Weight	1.56 kg
Power Supply	Power unit, inclusive
Manufacturer	STAR MICRONICS
Factory Number	39472730
Package Weight	5.8 lb
EAN / GTIN	4951319240808
