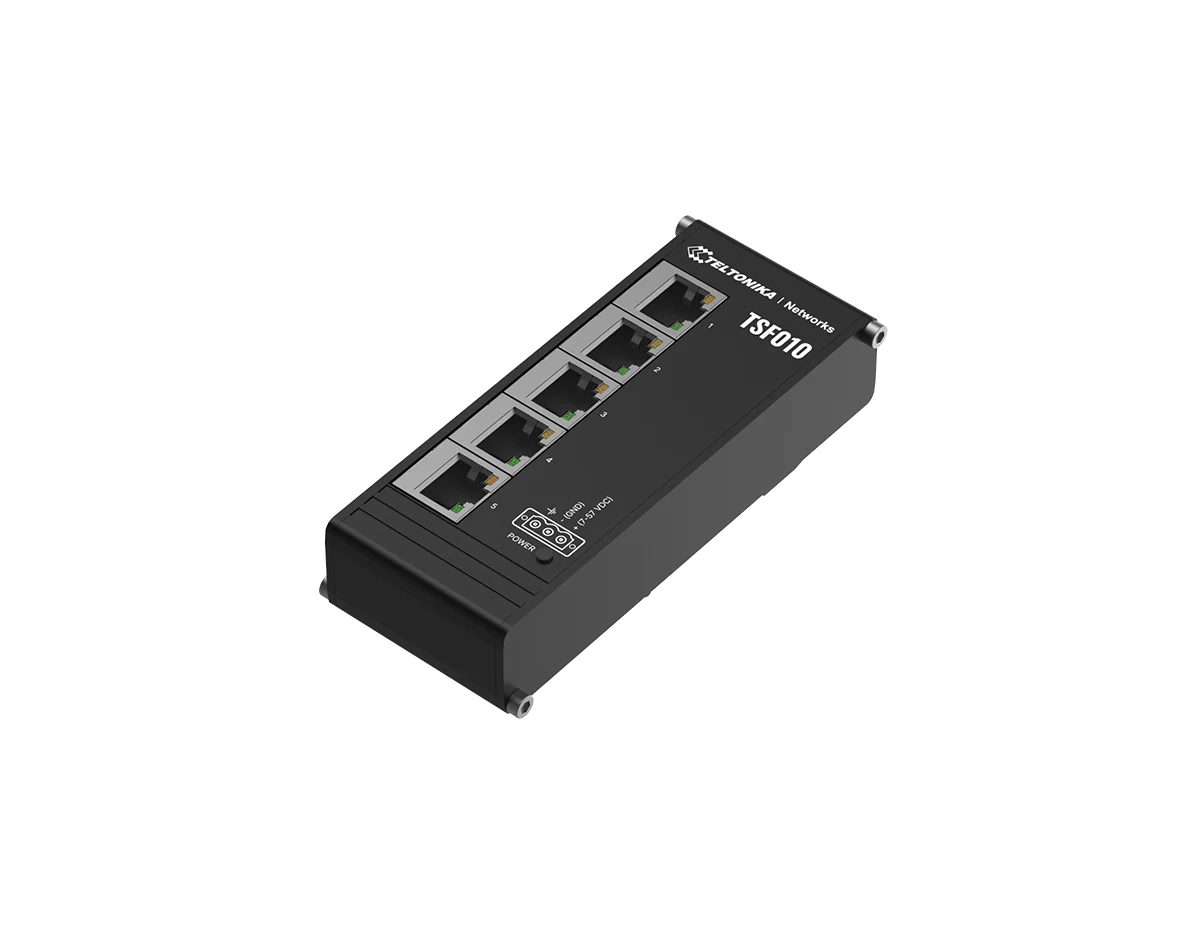

Teltonika TSF010 5-Port Industrial Flat Ethernet Switch (TSF010000000)
[shortdesc] Industrial flat 5-port 10/100 Mbps Ethernet switch with 7-57 VDC and 12-40 VAC input, integrated DIN rail bracket, and IP30 aluminum housing. [/shortdesc]
[properties]
| Model | TSF010 |
| SKU | TSF010000000 |
| Product Type | Flat Ethernet Switch |
| Ethernet Ports | 5 x 10/100 Mbps RJ45 ports |
| Auto MDI/MDIX | Supported |
| IEEE Standards | 802.31, 802.3u, 802.3ab, 802.3x, 802.3az |
| Bandwidth (Non-blocking) | 10 Gbps |
| Packet Buffer | 128 KB |
| MAC Address Table | 2K entries |
| Jumbo Frame Support | 9216 bytes |
| Power Connector | 3-pin industrial DC power socket |
| Input Voltage | 7-57 VDC / 12-40 VAC |
| Power Consumption | Idle: 1 W / Max: 1.5 W |
| Status LEDs | 1 x Power LED, 10 x Ethernet status LEDs |
| Casing Material | Anodized aluminum housing and panels |
| Dimensions (W x H x D) | 113 x 28 x 50 mm |
| Weight | 142 g |
| Mounting | Integrated DIN rail bracket |
| Operating Temperature | -40 C to 75 C |
| Operating Humidity | 5% to 95% non-condensing |
| Ingress Protection | IP30 |
| HS Code | 851762 |
| HTS | 8517.62.00 |
[/properties]
[specifications]
| Ethernet Interfaces | 5 x ETH ports, 10/100 Mbps, RJ45 |
| Supported Standards | IEEE 802.31, 802.3u, 802.3ab, 802.3x, 802.3az |
| Industrial Protocol | Profinet Class A conformance (available with optional order code) |
| Non-blocking Bandwidth | 10 Gbps |
| Packet Buffer Size | 128 KB |
| MAC Address Capacity | 2K entries |
| Maximum Jumbo Frame | 9216 bytes |
| Input Voltage Range | 7-57 VDC; 12-40 VAC (50/60Hz) |
| Protection | Overvoltage: 60 Vmax; Reverse polarity: 80 Vmax; Surge: 64.4V-71.2V breakdown |
| Power Consumption | Idle: 1 W; Max: 1.5 W |
| Dimensions | 113 x 28 x 50 mm |
| Operating Temperature | -40 C to 75 C |
| Operating Humidity | 5% to 95% non-condensing |
| Ingress Protection Rating | IP30 |
[/specifications]
[accesories]
| Included | TSF010 Switch; Quick Start Guide |
| Power Supply | Standard package without PSU |
[/accesories]
Ultra-Compact Industrial Switching Built for Harsh Environments
The Teltonika TSF010 is a flat, compact industrial Ethernet switch engineered for reliable Layer 2 connectivity in demanding environments. Designed with an integrated DIN rail bracket and a highly flexible power input range supporting both 7-57 VDC and 12-40 VAC, this 5-port switch delivers stable network performance across industrial automation, smart city, and enterprise deployments. Its anodized aluminum housing and IP30 rating ensure maximum durability while maintaining an ultra-light 142 g footprint.
Key Benefits & Features
- 5 Fast Ethernet Ports: Equipped with 5 x 10/100 Mbps RJ45 ports supporting auto MDI/MDIX, ensuring seamless device connectivity without manual crossover configuration.
- Flexible Industrial Power: Supports a wide range of 7-57 VDC or 12-40 VAC with integrated overvoltage, reverse polarity, and surge protection.
- Non-Blocking Architecture: Features 10 Gbps switching bandwidth with a 128 KB packet buffer and 2K MAC address table for efficient, high-speed traffic forwarding.
- Rugged Industrial Design: Professional-grade anodized aluminum housing with IP30 protection, rated for extreme temperatures from -40 C to 75 C.
- Integrated DIN Rail Mounting: Built-in bracket enables fast, secure plug-and-play installation inside industrial cabinets and space-constrained control panels.
Ideal Use Cases
- Industrial automation and PLC cabinet networking
- Energy and utilities infrastructure monitoring
- Smart city edge connectivity and sensor nodes
- Retail POS systems and surveillance network extensions
- Enterprise network segmentation in compact spaces
Technical Specifications
- Ports: 5 x RJ45 10/100 Mbps Fast Ethernet
- Standards: IEEE 802.31, 802.3u, 802.3ab, 802.3x, 802.3az
- Switching Bandwidth: 10 Gbps (non-blocking)
- MAC Address Table: 2K entries
- Jumbo Frame Support: Up to 9216 bytes
- Power Input: 7-57 VDC / 12-40 VAC via 3-pin industrial DC socket
- Power Consumption: 1 W idle, 1.5 W max
- Operating Temperature: -40 C to 75 C
- Ingress Protection: IP30
- Dimensions: 113 x 28 x 50 mm
- Weight: 142 g
Deploy Industrial Networking with Confidence
The Teltonika TSF010 delivers reliable industrial Ethernet switching in a compact, energy-efficient form factor. Enhance your network infrastructure with a flat-design solution built for longevity and performance.
