[shortdesc]

• Teltonika TSW110
• Ethernet Switch
• Reliable Networking
• High-Speed Data Transmission
• Industrial Grade

[/shortdesc]

[properties]

Properties	TSW110 (TSW110000010)

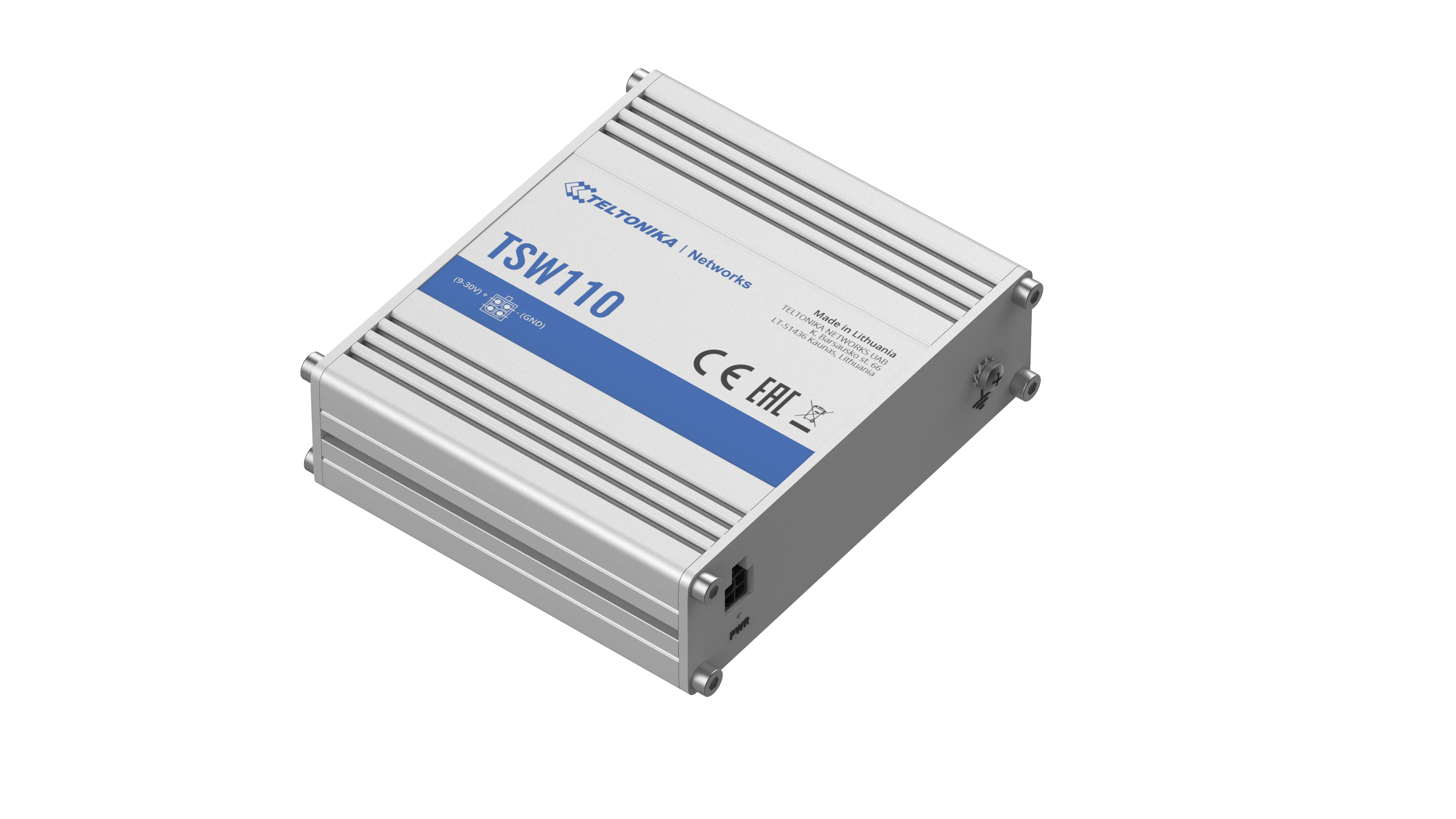

Description	Compact and rugged, this unmanaged layer 2 switch offers reliable high-bandwidth connections. With five Gigabit Ethernet ports, TSW110 (TSW110000010) suits industrial use and operates on 9-30 V power supply.
Product Family	Teltonika TWS Switches
Product Type	Switch
Powering option	4pin power socket, 9-30 VDC
Ethernet	5 x 10/100/1000 Ethernet ports
Housing	Aluminum housing with wall or DIN rail mounting option and grounding capability
Dimensions	100 x 30 x 85 mm
Weight	227 g
Mounting	DIN rail and surface mounting options
Input voltage range	9 - 30 VDC
Power consumption (idle/max)	< 0.4 W/ <1.8 W

[/properties] [specifications]

Bandwidth	10 Gbps
Packet buffer	128 KB
MAC address table size	2K entries
Auto MDI/ MDI-X Cable Detection	Yes
Status LEDs	10 x Ethernet, 1 x Power
Ingress protection rating	IP30
Operating temperature	-40 °C to 75 °C
Operating humidity	10 % to 90 % non-condensing

[/specifications] [accesories]

Power adapter

Input: 0.4 A @100-240 VAC, Output: 9 VDC, 1 A, 4 pin plug

[/accesories]

Experience reliable networking with the Teltonika TSW110 Ethernet Switch. Offering high-speed data transmission, this industrial-grade switch ensures efficient, secure connectivity. Choose the TSW110 for your networking requirements.
