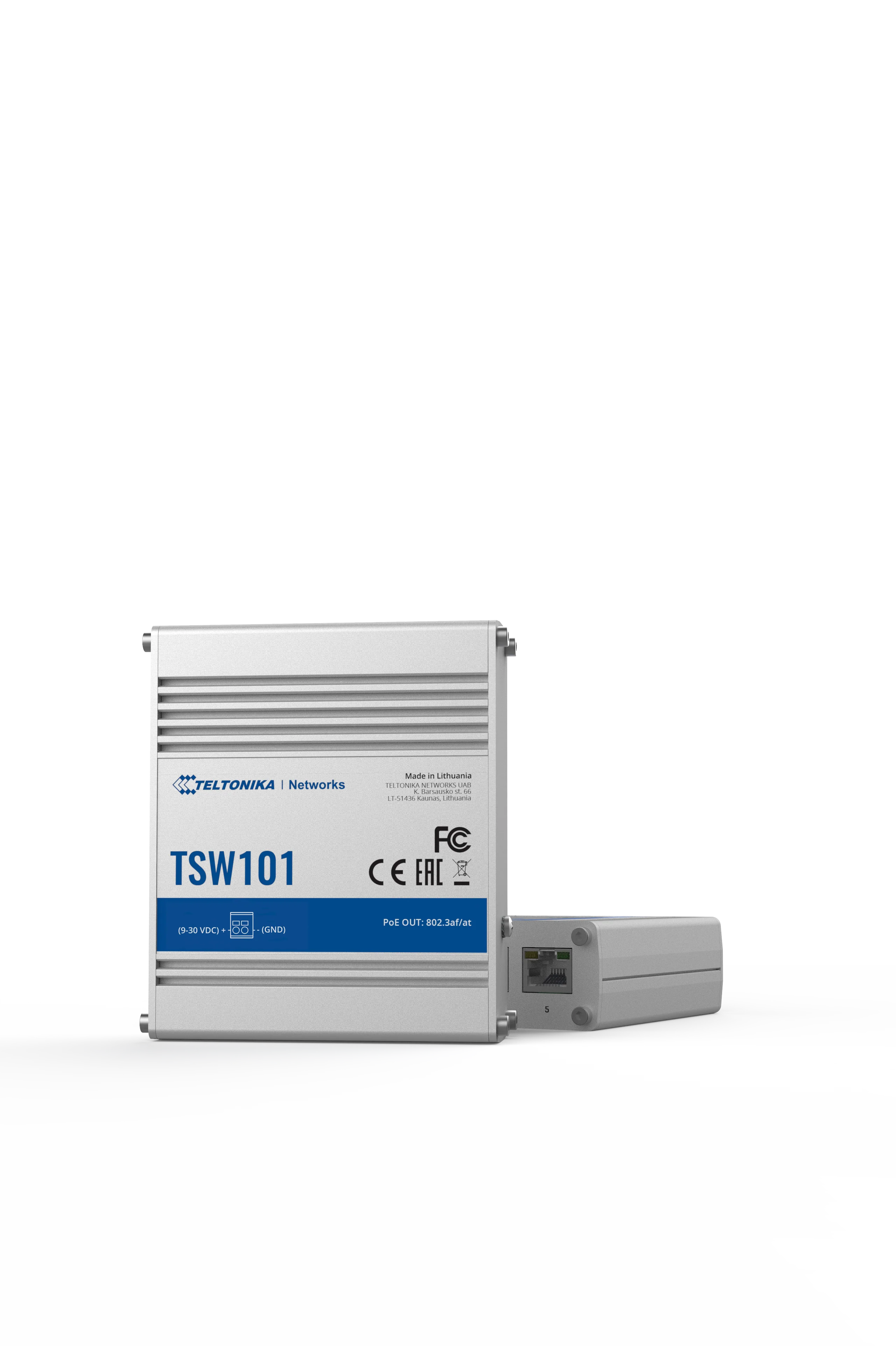

Teltonika TSW101 Switch (TSW101000000)
[shortdesc]
- 5 Ports
- PoE+
- Automotive Switch
- Teltonika TSW101
- Ethernet Switch
- High-Speed Data Transfer
- Robust Performance
- Reliable Networking
[/shortdesc]
[properties]Ā
| Properties | TSW101 SWITCH (TSW101000000) |
| Description | Teltonika Networks' TSW101 is a compact automotive switch with five Gigabit Ethernet ports and centralized power supply, ideal for in-vehicle data and power connections. |
| Product Family | Teltonika TWS Switches |
| Product Type | Switch |
| PoE standart | 802.3af/at (max 30 W per port, total power budget 60W) |
| Ethernet | 5 x 10/100/1000 Ethernet ports: 4 x PoE, 1 x Uplink |
| Housing | Aluminum housing with wall or DIN rail mounting option and grounding capability |
| Dimensions | 115 x 32 x 95 mm |
| Weight | 354 g |
| Mounting | DIN rail or wall mounting (additional kit needed), flat surface placement |
| Input voltage rangeĀ | 9 - 30 VDC |
| Input voltage range for PoE | 9 - 30 VDC |
| Power consumption (idle/max no PoE/max)Ā | 0.64 W / Max: 2.31 W / PoE Max: 112.58 W |
[/properties] [specifications]Ā
| Bandwidth | 10 Gbps |
| Packet buffer | 128 KB |
| MAC address table size | 2K entries |
| Jumbo frame supportĀ | 9216 bytes |
| Auto MDI/ MDI-X Cable Detection | Yes |
| Status LEDs | 1 x Power LED, 10 x LAN status LEDās |
| Ingress protection rating | IP30 |
| Operating temperature | -40 Ā°C to 75 Ā°C |
| Operating humidity | 10 % to 90 % non-condensing |
| Regulatory | CE, REACH, RoHS, WEEE TSW101 CE TSW101 UKCA TSW101 FCC TSW101 IC TSW101 CB TSW101 RCM E-Mark |
| Safety Standards | EN IEC 62368-1:2020+A11:2020 |
Ā [/specifications] [accesories] [/accesories]
The Teltonika TSW101 Ethernet Switch offers high-speed data transfer and robust performance. Its reliable networking capabilities make it a great choice for various applications. Trust the TSW101 for efficient, reliable networking.
