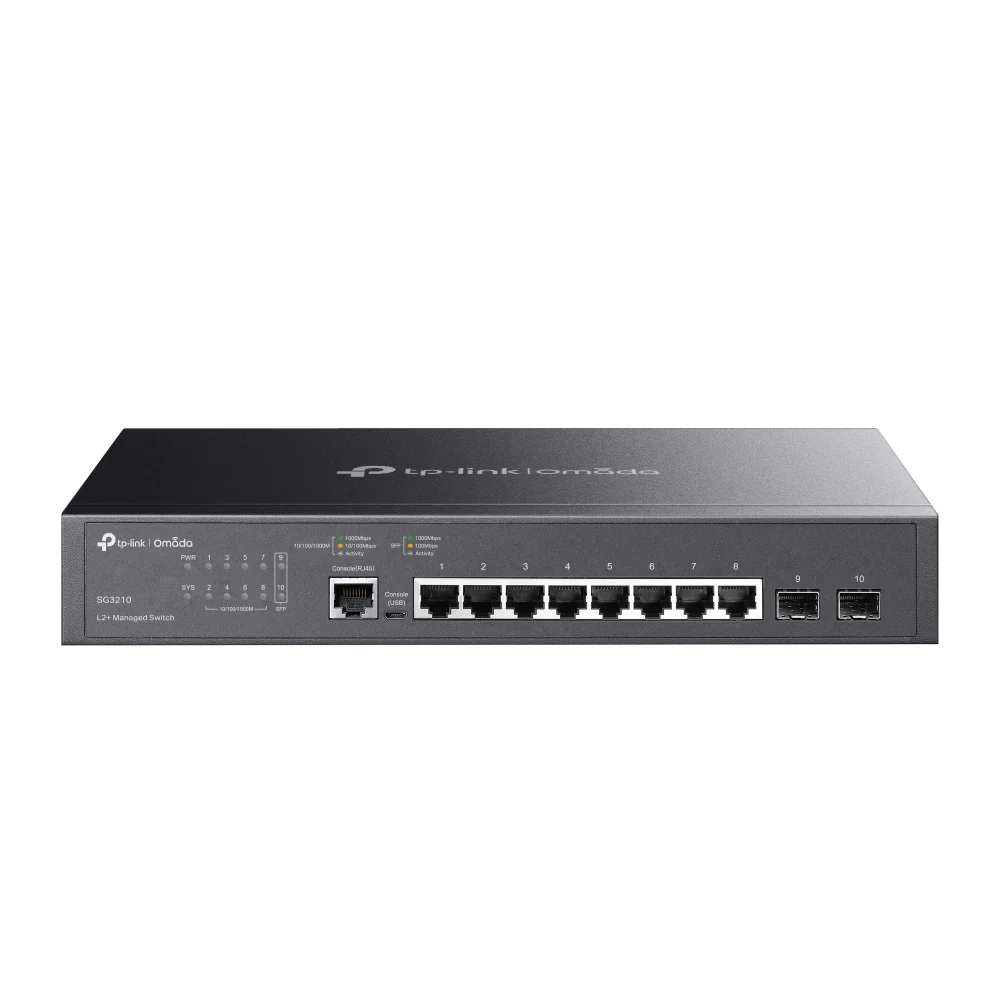

TP-Link Omada SG3210 8-Port Gigabit L2+ Managed Switch with 2 SFP Slots
[shortdesc] 8× Gigabit RJ45, 2× Gigabit SFP, L2+ static routing, fanless, rack/desktop, VLAN & QoS [/shortdesc]
[properties]
| Model | TP-Link SG3210 |
| Product Type | Omada L2+ Managed Switch |
| Ports | 8× Gigabit RJ45 ports, 2× Gigabit SFP slots |
| Console Ports | 1× RJ45, 1× Micro-USB |
| Switching Capacity | 20 Gbps |
| Packet Forwarding Rate | 14.89 Mpps |
| MAC Address Table | 8K entries |
| Packet Buffer Memory | 4.1 MB |
| Jumbo Frame | 9 KB |
| Fan Quantity | Fanless (silent operation) |
| Power Supply | 100–240 V AC, 50/60 Hz |
| Max. Power Consumption | 6.84 W (220 V/50 Hz) |
| Max. Heat Dissipation | 23.33 BTU/h (220 V/50 Hz) |
| Mounting | Rack mountable / Desktop |
| Physical Security | Lock supported |
| Dimensions (W × D × H) | 294 × 180 × 44 mm (11.6 × 7.1 × 1.7 in) |
| Weight | 2.2 lb |
| Operating Temperature | 0–45 °C (32–113 °F) |
| Storage Temperature | −40–70 °C (−40–158 °F) |
| Operating Humidity | 10–90% RH non-condensing |
| Storage Humidity | 5–90% RH non-condensing |
[/properties]
[specifications]
| QoS Features | 8 priority queues; 802.1p CoS/DSCP; Queue scheduling (SP, WRR, SP+WRR); Bandwidth control (port/flow rate limiting); QoS remark |
| L2 & L2+ Features | 32 IPv4/IPv6 interfaces; 48 static routes; ARP (128 static, 316 entries; Proxy & Gratuitous); DHCP server/relay; Link aggregation; STP; Loopback detection; 802.3x flow control; Port mirroring |
| L2 Multicast | 512 IGMP groups; IGMP/MLD snooping; IGMP authentication; Multicast VLAN Registration (MVR); Multicast filtering (256 profiles, 16 entries each) |
| ISP Features | L2PT, DLDP, PPPoE ID insertion, ERPS, 802.3ah OAM, DDM (standalone mode only) |
| VLAN | Up to 4K VLAN groups; 802.1Q VLAN; MAC VLAN (12 entries); Protocol VLAN (16 templates); Private VLAN; GVRP; QinQ (port-based & selective); Voice VLAN |
| Access Control | Time-based ACL; MAC/IP/IPv6/Combined ACL; Packet content ACL; Mirroring, redirect, rate limit, QoS remark; ACL applied per port/VLAN |
| Security | IP-MAC-Port Binding (512); DHCP snooping; ARP inspection; IPv4/IPv6 Source Guard; DoS defense; DHCP filter; Port security (64 MAC per port); Storm control; 802.1X (port/MAC, VLAN, guest VLAN, RADIUS); AAA/TACACS+; HTTPS/SSL, SSH CLI |
| IPv6 Features | Dual stack IPv4/IPv6; Static IPv6 routing; MLD snooping; IPv6 ACL; ND; ICMPv6; TCPv6/UDPv6; DHCPv6 client; IPv6 SNMP, SSH, SSL, TFTP |
| Management | Omada app with Controller; Cloud/Hardware/Software Controller; Zero-Touch Provisioning; Web GUI; CLI; SNMP v1/v2c/v3; RMON; LLDP/LLDP-MED; DHCP AutoInstall; Dual image/config; CPU monitoring; Cable diagnostics; EEE; System log |
| Certifications | CE, FCC, RoHS |
[/specifications]
[accesories]
| Included | SG3210 Switch; Power cord; Quick Installation Guide; Rackmount kit; Rubber feet |
[/accesories]
High-Efficiency Switching with Omada Cloud Control
The TP-Link Omada SG3210 delivers reliable gigabit connectivity with advanced Layer 2+ features. Designed for modern business networks, it combines cloud-managed scalability with robust security and silent operation, making it ideal for office and SMB deployments.
Key Benefits & Features
- Versatile Connectivity: 8× Gigabit RJ45 ports plus 2× Gigabit SFP slots ensure flexible uplinks and smooth data transfer.
- Advanced L2+ Routing: Supports 48 static IPv4/IPv6 routes for efficient internal traffic management and optimized performance.
- Enterprise Security: Includes ACL, 802.1X (port/MAC), IP-MAC-Port binding, and DoS defense to safeguard network integrity.
- Silent Fanless Design: Fanless architecture ensures noise-free operation, perfect for office environments.
- Omada SDN Integration: Centralized cloud-based management with zero-touch provisioning simplifies deployment and monitoring.
Ideal Use Cases
- SMB offices needing reliable Layer 2+ switching with security and QoS
- Branch networks requiring cloud-managed centralized control
- Quiet workspaces that benefit from fanless, silent hardware
- Businesses deploying VLAN segmentation for voice, video, and data
Technical Specifications
- Ports: 8× 10/100/1000 Mbps RJ45, 2× 100/1000 Mbps SFP
- Console Ports: 1× RJ45, 1× Micro-USB
- Switching Capacity: 20 Gbps
- Forwarding Rate: 14.89 Mpps
- MAC Address Table: 8K entries
- Jumbo Frame: 9 KB
- Power Supply: 100–240 V AC, 50/60 Hz
- Max Power Consumption: 6.84 W
- Dimensions: 294 × 180 × 44 mm
- Mounting: Rack-mountable or desktop
Upgrade Your Network Today
Enhance business performance with the TP-Link SG3210 Omada Managed Switch. Order now and build a secure, high-speed, and scalable network.
