[shortdesc] 10GBASE-T SFP+ transceiver, RJ-45 copper interface, 100M 1G 10G speeds, up to 100m reach, 2.5W power consumption [/shortdesc]

[properties]

Model	SFP-10G-T-X
Product Type	SFP+ Transceiver Module
Ethernet Standards	10GBASE-T, 1000BASE-T, 100BASE-TX
Connector Type	RJ-45
Media Type	Twisted Pair
Supported Cable Types	Category 5e, Category 6A, Category 7
Maximum Transfer Distance	30 m (10 Gbps); up to 100 m (100 Mbps / 1 Gbps)
Power Consumption	Up to 2.5 W
Form Factor	SFP+
Operating Temperature	−5 °C to 85 °C
Height	0.3 in
Width	0.5 in
Depth	2.2 in
Country of Origin	United States

[/properties]

[specifications]

Data Rates Supported	100 Mbps, 1 Gbps, 10 Gbps
Network Technology	10GBASE-T
Interface Provided	1 × Ethernet 10GBASE-T RJ-45 female
Maximum Power Consumption	2.5 W at 30 m (Cat6A or better)
Compatibility	IEEE 802.3an, IEEE 802.3ab, IEEE 802.3u
Connectivity Technology	Wired
Compliant Standards	IEEE 802.3, ITU-T G.709, RoHS, MSA, SFF-8431, SFF-8461
Laser Safety	Laser Class 1
Application	Data Networking
Operational Power Profile	1.0 W (100M/1G); 2.5 W (10G)

[/specifications]

High-Speed 10G Copper Connectivity Without Rewiring

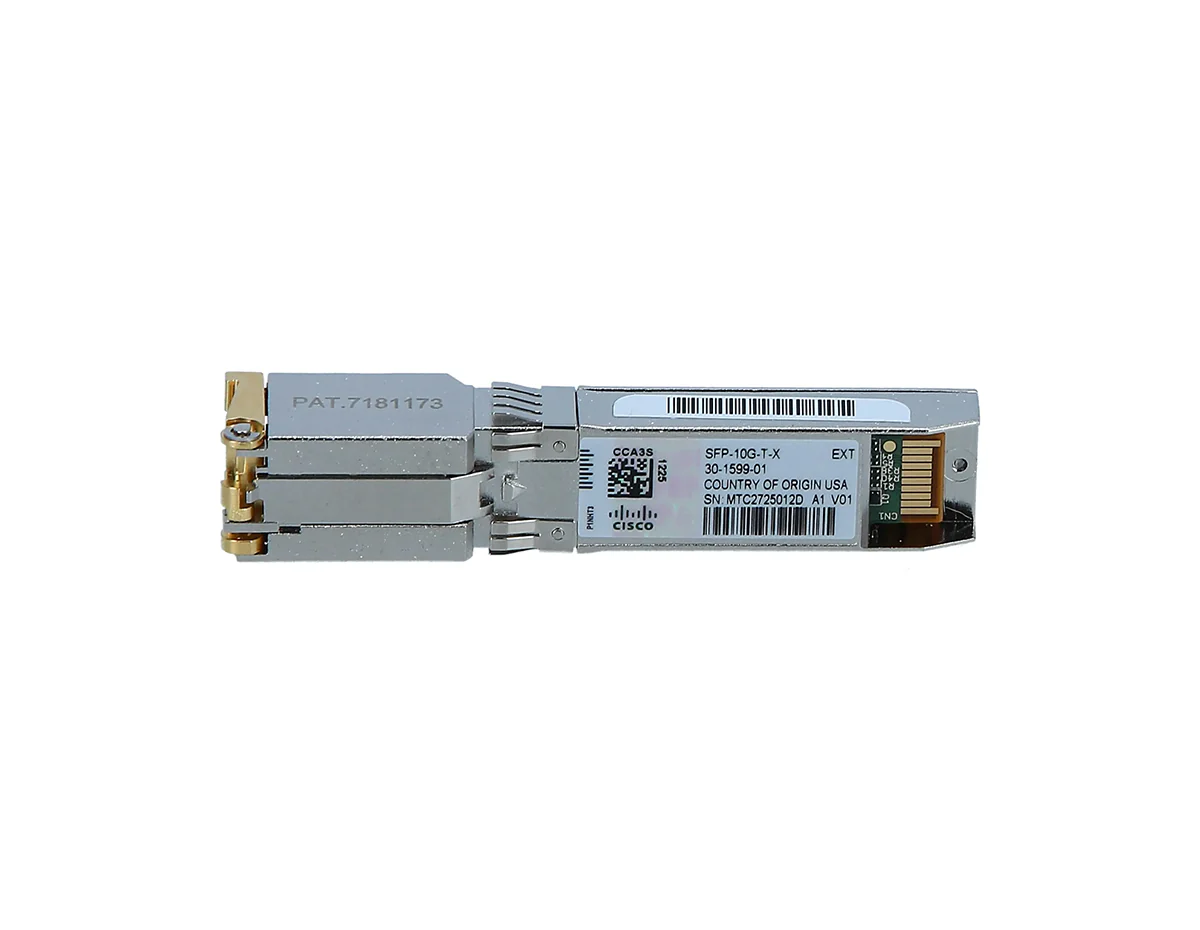

The Cisco SFP-10G-T-X is a 10GBASE-T SFP+ transceiver designed to deliver reliable 10 Gigabit Ethernet over standard copper cabling. Built for enterprise and data center environments, it enables seamless migration to 10G networks while preserving existing RJ-45 infrastructure. With multi-rate support and extended temperature tolerance, this module provides flexibility, efficiency, and dependable performance across diverse deployments.

Key Benefits & Features

• Multi-Rate Ethernet Support: Operates at 100 Mbps, 1 Gbps, and 10 Gbps, allowing automatic speed negotiation for mixed network environments.
• Standard RJ-45 Interface: Uses familiar twisted-pair copper cabling, simplifying upgrades without the need for fiber installation.
• Extended Reach Capability: Supports up to 30 meters at 10Gbps with Cat6A or better and up to 100 meters at lower speeds.
• Efficient Power Design: Consumes up to 2.5W at maximum throughput, supporting dense SFP+ deployments with controlled thermal impact.
• Enterprise-Grade Compliance: Fully compliant with IEEE 802.3 standards for broad interoperability across compatible Cisco platforms.

Ideal Use Cases

• Enterprise access and aggregation switches
• Data center top-of-rack copper deployments
• Server connections using embedded BASE-T NICs
• Network upgrades where fiber is not practical
• Mixed-speed environments requiring flexible connectivity

Technical Specifications

• Form Factor: SFP+
• Network Technology: 10GBASE-T
• Supported Speeds: 100 Mbps, 1 Gbps, 10 Gbps
• Connector Type: RJ-45
• Maximum Reach: Up to 30m at 10Gbps, up to 100m at 1G/100M
• Supported Cabling: Cat5e, Cat6, Cat6A, Cat7
• Power Consumption: Up to 2.5W
• Operating Temperature: -5°C to 85°C
• Compliance: IEEE 802.3an, 802.3ab, 802.3u

Upgrade Your Network with Confidence

Enable high-speed copper connectivity with Cisco reliability and standards compliance. Order today.
