[properties]

Properties	MikroTik mAP RBMAP2ND
Description	Dual-Chain 2.4GHz micro AP, 650MHz CPU, 64MB RAM, 2xEthernet, PoE out
Product Family	mAP Series
Product Type	Access Point
Features	• PoE in 10-57V • Built in 2,4GHz AP • microUSB for a 3G/4G modem, or for power input • Station or AP mode wireless • Passive PoE output (same as input voltage)
10/100 Ethernet ports	2
Number of USB ports	1 microUSB type AB
Extras	PCB temperature monitor Voltage Monitor
Dimensions	68 x 68 x 19mm
MicroUSB input Voltage	5-5 V
Number of DC inputs	3 (DC jack, PoE-IN, MicroUSB)
DC jack input Voltage	8-57 V
Max power consumption	5 W
Cooling type	Passive
PoE in	802.3af/at
PoE in input Voltage	12-57 V
PoE-out ports	Ether2
PoE out	Passive PoE
Max out per port output (input 18-30 V)	0.5 A
Max total out (A)	0.5 A

[/properties][specifications]

Specifications	RBMAP2ND
Memory	64 MB
Flash Storage size	16 MB
CPU	QCA9531 650 MHz
CPU core count	1
Switch chip model	QCA9531-BL3A-R
OS	RouterOS level 4 license
Wireless capabilities
Wireless 2.4 GHz Max data rate	300 Mbit/s
Wireless 2.4 GHz number of chains	2
Wireless 2.4 GHz standards	802.11b/g/n
Antenna gain dBi for 2.4 GHz	1.2
Wireless 2.4 GHz chip model	QCA9531
Wireless 2.4 GHz generation	Wi-Fi 4
Wireless specifications
2.4 GHz
1MBit/s	Transmit (dBm): 22 Receive Sensitivity: -96
11MBit/s	Transmit (dBm): 22 Receive Sensitivity: -89
6MBit/s	Transmit (dBm): 20 Receive Sensitivity: -93
54MBit/s	Transmit (dBm): 18 Receive Sensitivity: -74
MCS0	Transmit (dBm): 20 Receive Sensitivity: -93
MCS7	Transmit (dBm): 16 Receive Sensitivity: -71
MTBF	Approximately 100.000 hours at 25C
Temperature	-20°C to 70°C tested
Certification	FCC, IC

[/specifications][accesories]

24V 0.8A power adapter

Mounting kit (K-33)

USB OTG cable

[/accesories]

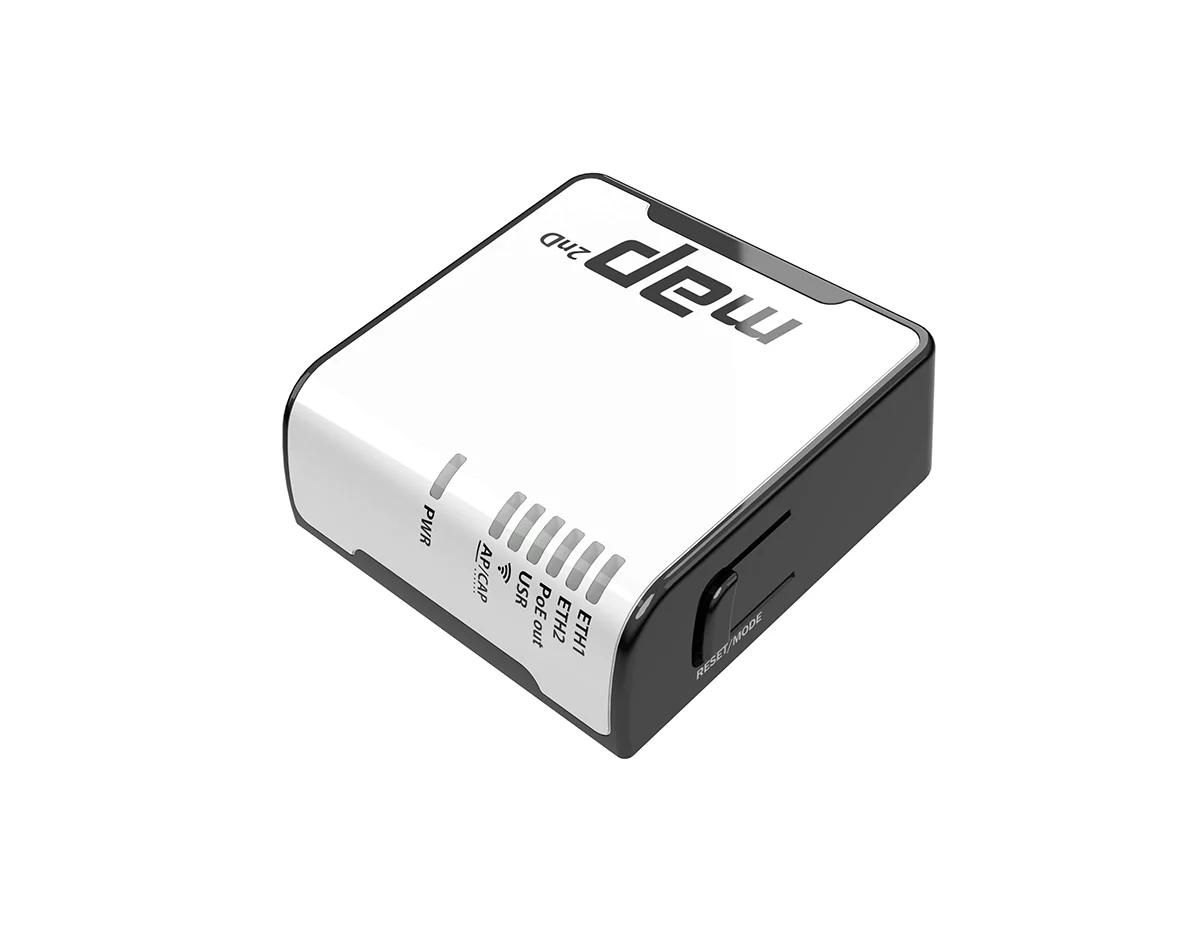

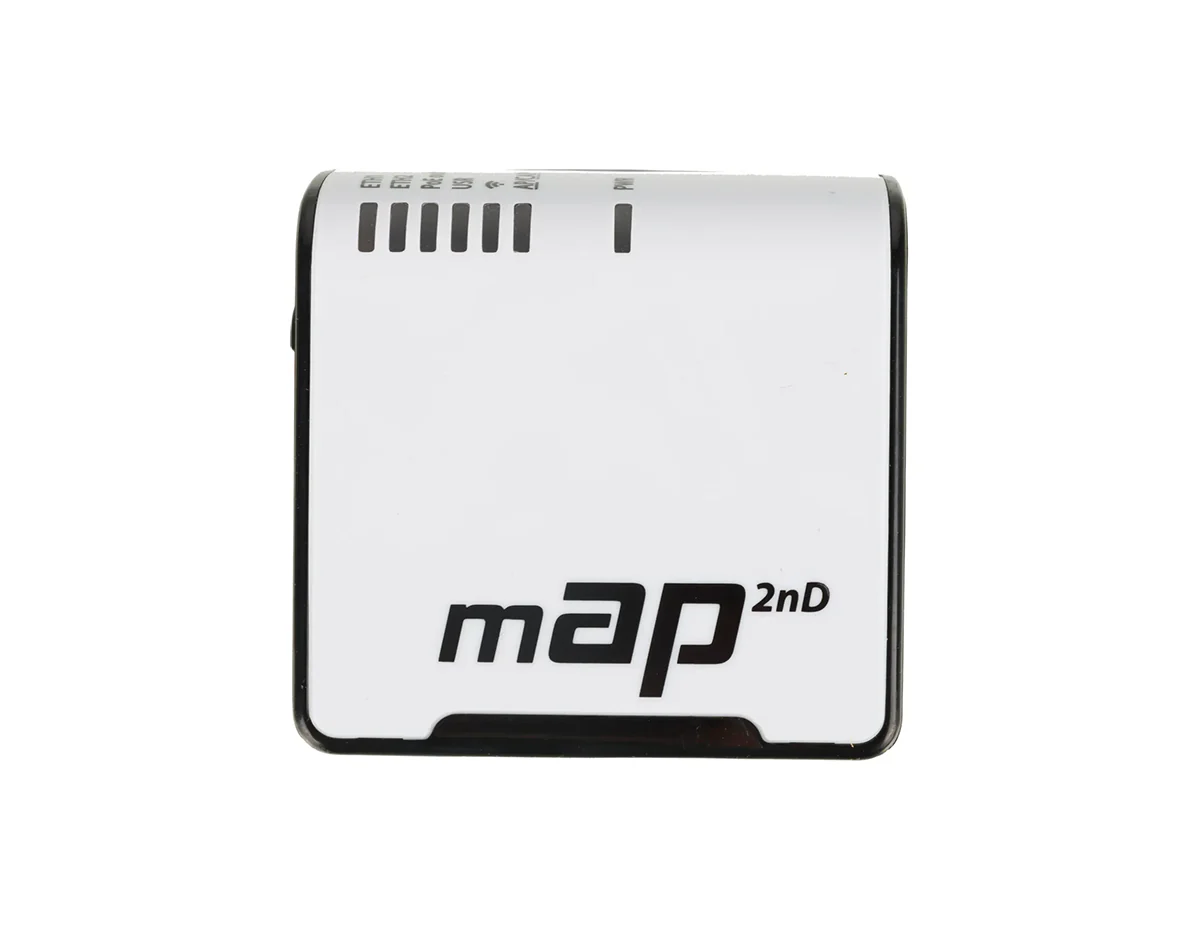

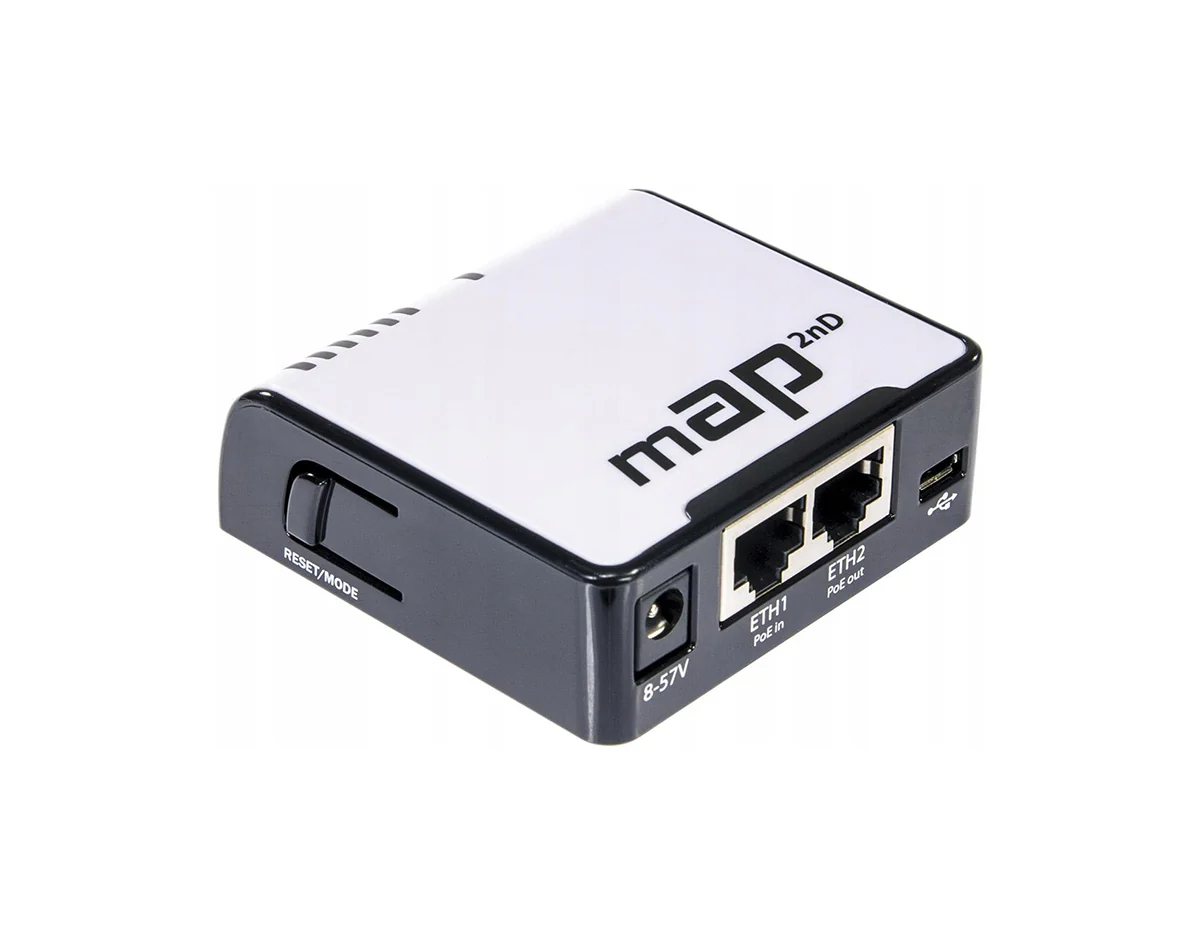

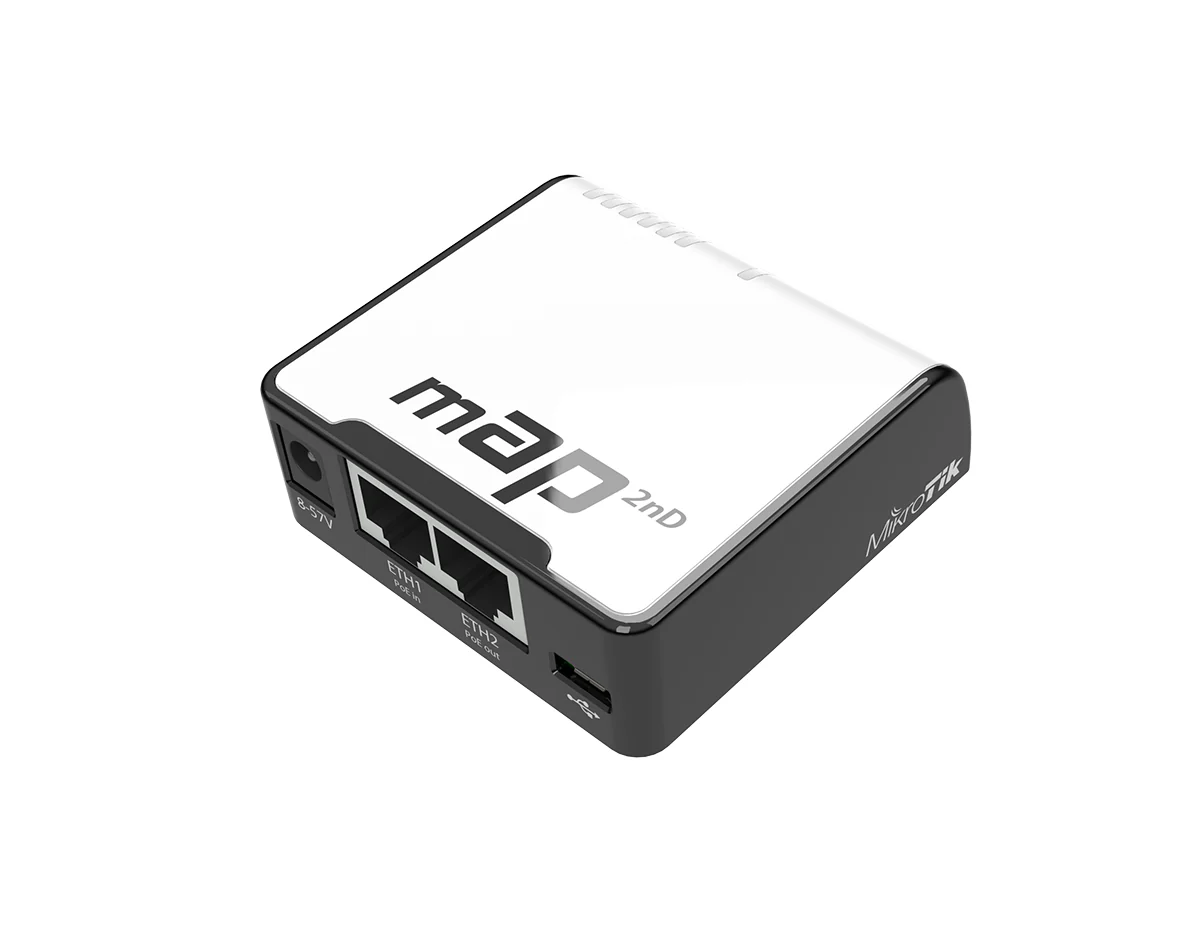

MikroTik RBMAP2ND Access Point

The RBMAP2ND is a compact wireless Dual-Chain 2.4GHz Access Point equipped with complete RouterOS functionality. Its portability is enhanced by its ability to receive power from multiple sources, including USB, Passive PoE, and a power jack. Additionally, it functions as a PoE injector, with its second Ethernet port capable of providing up to 500mA of power to another device.

Quick Specs:

• 2x 10/100 Ethernet Ports
• QCA9531, 1 core, 650 MHz CPU
• PoE in: 802.3af/at
• PoE out: Passive PoE
• PoE out ports: Ether2

Please see the related tabs for the RBMAP2ND datasheet and compatible accessories.
