[shortdesc]RouterBoard, Gigabit Ethernet, Wireless Router, Dual-Band, 802.11ac, High Performance, Compact Size. [/shortdesc]

[properties]

Properties	MikroTik RBM11G
Description	RouterBoard, Gigabit Ethernet, Wireless Router, Dual-Band, 802.11ac, High Performance, Compact Size
Product Family	RouterBOARD Series
Product Type	Routerboard
Ports
10/100/1000 Ethernet ports	1
Number of SIM slots	1 Modem (Mini SIM)
MiniPCI-e slots	1
Dimensions	105 x 110 mm
Number of DC inputs	2 (DC jack, PoE-IN)
DC jack input Voltage	10-30 V
Max power consumption	11 W
Cooling type	Passive
PoE in	Passive PoE
PoE in input Voltage	10-30 V

[/properties][specifications]

Specifications	RBM11G
Memory	256 MB
Flash Storage size	16 MB
CPU	Mediatek MT7621A 880 MHz
CPU core count	2
OS	RouterOS level 4 license
MTBF	Approximately 100.000 hours at 25C
Temperature	-40°C to 70°C tested
IPsec hardware acceleration	Yes
Certification & Approvals
Certification	CE, EAC, ROHS
IP	IP20

[/specifications][accesories]

[/accesories]

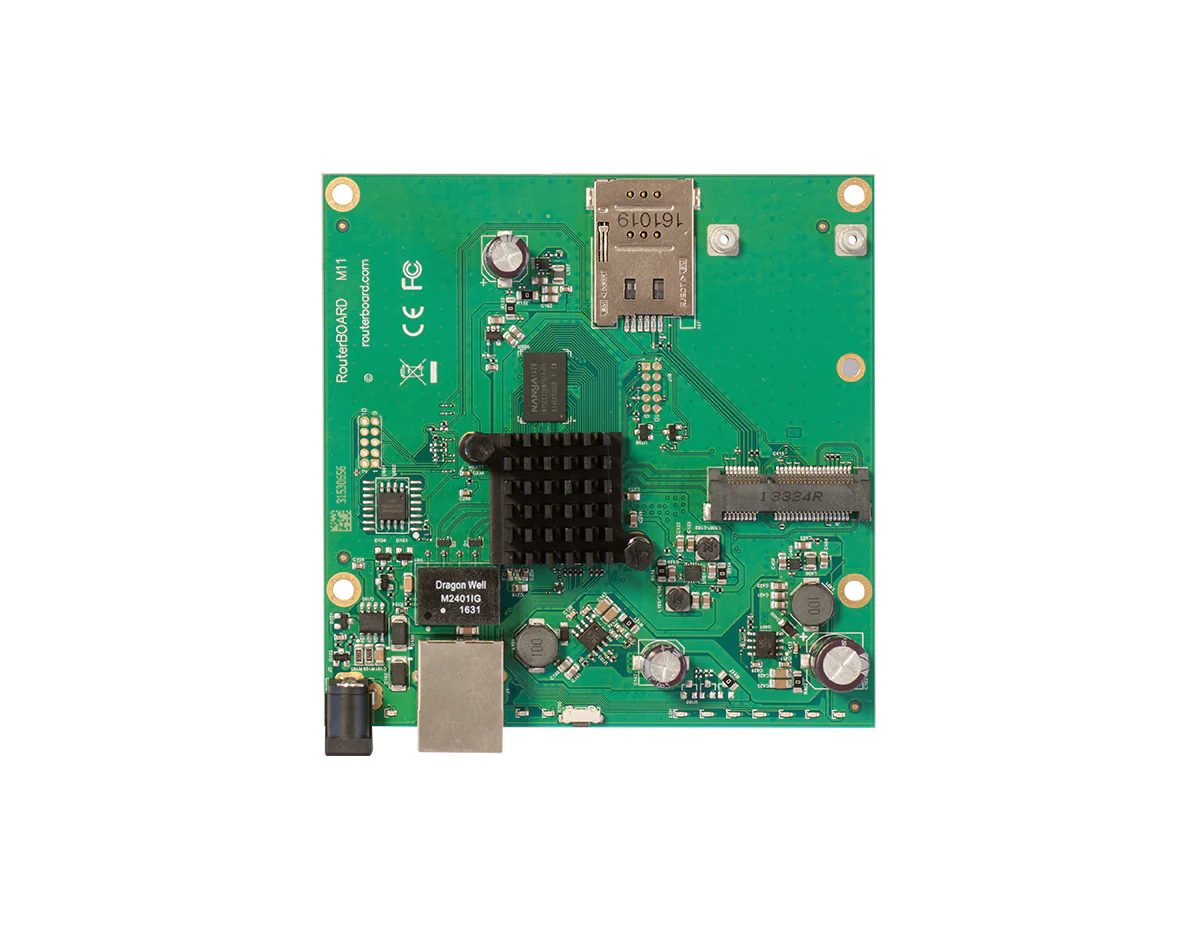

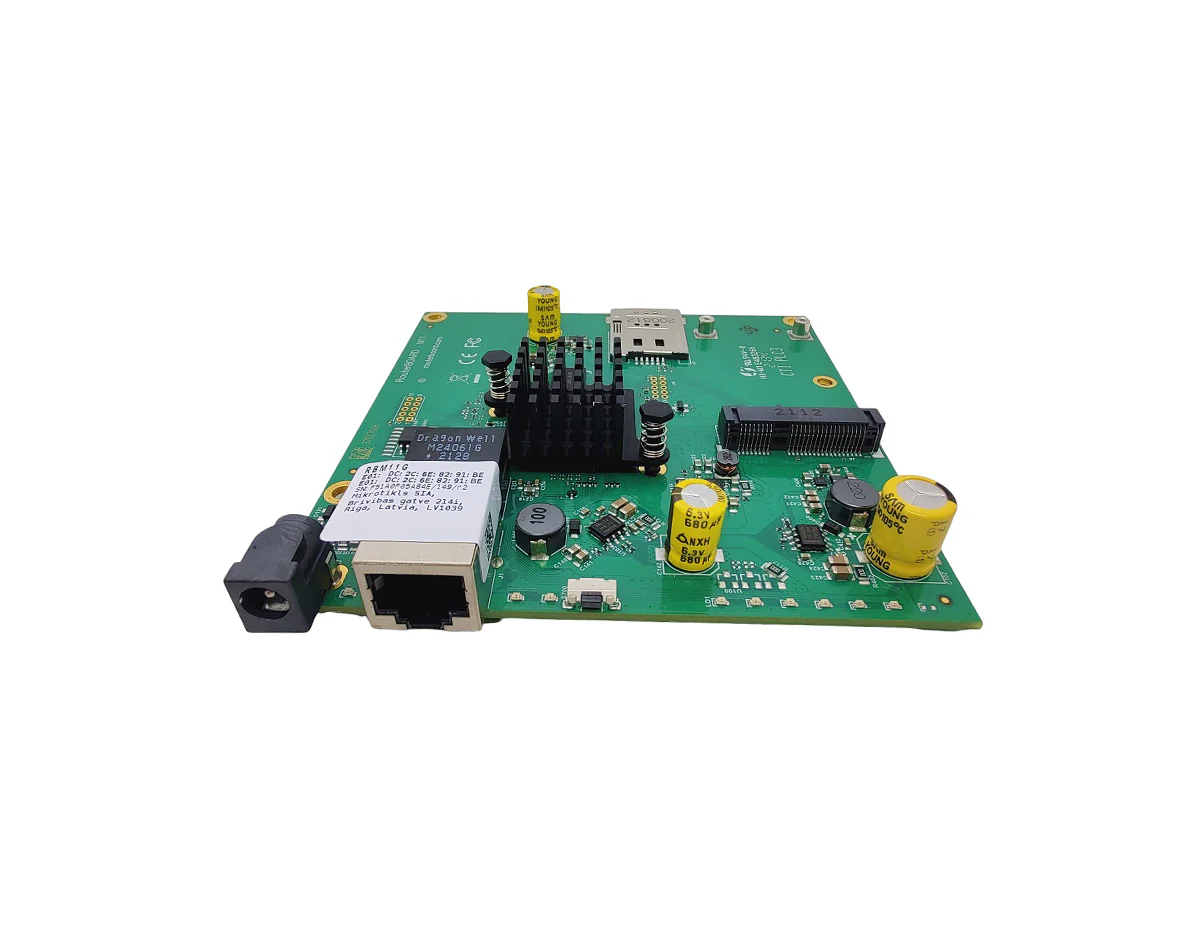

MikroTik RBM11G Router Board

The RBM11G is a fully featured routerBOARD device perfect for using with your enclosure or building a custom solution. It uses the same square PCB and mounting holes as its predecessors, you can simply swap out the older models with the brand-new RBM11G. The M11 features a new MediaTek dual-core CPU running at 880MHz, a mini PCIe slot for use with a WiFi module of your choice, or with a 3G/ LTE modem (SIM slot provided). The device can be powered by PoE through its gigabit ethernet connector or the DC power jack.

Quick Specs:

• 1x 10/100/1000 Ethernet Port
• MT7621A, 2 core, 880 MHz (4 threads)
• PoE in: Passive PoE
• 256 MB RAM

Please see the related tabs for the RBM11G datasheet and compatible accessories.
