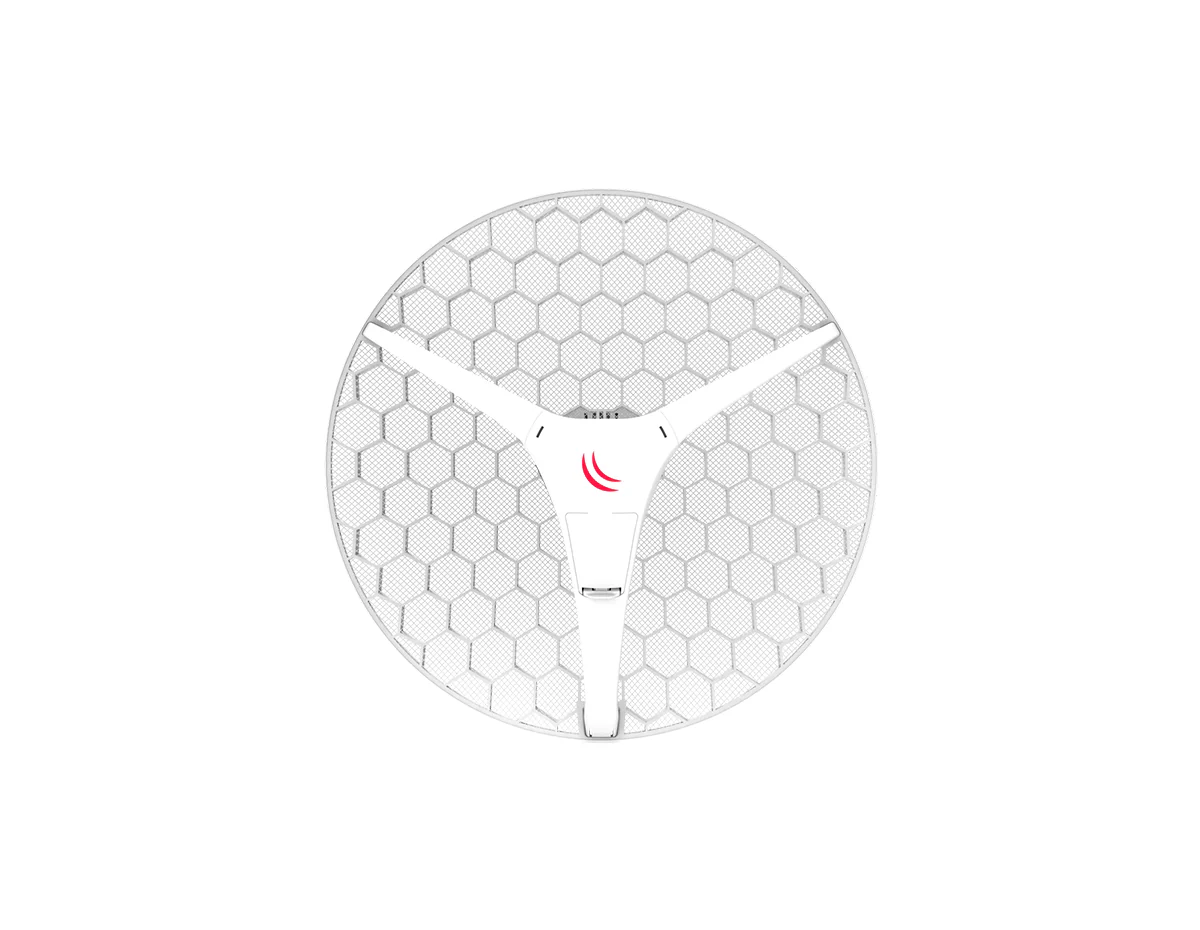

MikroTik LHG XL HP5 5GHz Wireless CPE Bridge Kit (RBLHG-5HPnD-XL4pack-US)
[shortdesc] 5GHz 802.11a/n wireless bridge, 27 dBi dual polarization antenna, dual chain radio, passive PoE powered, outdoor IP54 design, 4 unit kit [/shortdesc]
[properties]
| Model | MikroTik LHG XL HP5 |
| SKU | RBLHG-5HPnD-XL4pack-US |
| Product Type | Wireless CPE / Point-to-Point Integrated Antenna |
| Wireless Standard | 802.11a/n (Wi-Fi 4) |
| Frequency Band | 5 GHz |
| Antenna Type | Integrated dual polarization grid antenna |
| Antenna Gain | 27 dBi |
| Wireless Chains | 2 |
| Maximum Wireless Data Rate | 300 Mbit/s |
| Ethernet Port | 1 x 10/100 Ethernet |
| CPU | AR9344 |
| CPU Frequency | 600 MHz |
| RAM | 64 MB |
| Storage | 16 MB Flash |
| Operating System | RouterOS |
| RouterOS License | Level 3 |
| Power Input | Passive PoE |
| Input Voltage | 10–28 V |
| Maximum Power Consumption | 7 W |
| IP Rating | IP54 |
| Operating Temperature | -40 C to 70 C |
| Dimensions | O 550 x 245 mm |
| Wind Loading | 186 N at 205 km/h |
| Certifications | CE, FCC, IC, EAC, RoHS |
[/properties]
[specifications]
| Wireless Frequency Range | USA: 5170–5250 MHz and 5725–5835 MHz |
| Transmit Power (6 Mbit/s) | 28 dBm |
| Receive Sensitivity (6 Mbit/s) | -96 dBm |
| Transmit Power (54 Mbit/s) | 25 dBm |
| Receive Sensitivity (54 Mbit/s) | -80 dBm |
| MCS0 Tx/Rx | 28 dBm / -96 dBm |
| MCS7 Tx/Rx | 24 dBm / -75 dBm |
| Ethernet Performance Test | Up to 98.4 Mbps throughput with 1518 byte packets (fast path bridging/routing) |
| MTBF | Approximately 100,000 hours at 25C |
| Cooling | Passive |
| Mounting | Pole mount via included metal rings |
| Assembly | Shipped disassembled for compact transport |
| Maximum Link Distance | Up to 40 km (point-to-point under optimal conditions) |
[/specifications]
[accesories]
| Included | 24V 0.38A Power Adapter; PoE Injector; Two Metal Rings (mounting); K-LHG Installation Kit |
| Mounting Accessories | Metal mounting rings included for pole installation |
| Optional Accessories | LHG mount; solidMOUNT mounting adapter |
[/accesories]
Extend Long Distance Wireless Links with High Gain Precision
The MikroTik RBLHG-5HPnD-XL4pack-US LHG XL HP5 is a high-gain 5GHz wireless CPE designed for long distance point to point connectivity. Featuring a powerful dual-chain radio and a 27 dBi integrated grid antenna, this device delivers stable wireless links across large distances while maintaining reliable throughput. Its lightweight grid design minimizes wind load while ensuring efficient signal transmission with no cable losses between radio and antenna.
This kit includes four LHG XL HP5 units, making it ideal for network operators and WISPs deploying multiple outdoor wireless links. With RouterOS and high TX output power, the system enables flexible configuration for bridge links, client deployments, and extended wireless backhaul infrastructure.
Key Benefits & Features
- High Gain 27 dBi Integrated Antenna: The large dual polarization grid antenna focuses signal transmission to deliver reliable long range wireless connectivity for point to point deployments.
- Dual Chain 5GHz Wireless Radio: Built on 802.11a/n technology with dual chain architecture, enabling up to 300 Mbps wireless data rates for stable outdoor network performance.
- Optimized Grid Design: Lightweight grid structure reduces wind load while maintaining high antenna gain and efficient RF performance for outdoor installations.
- RouterOS with License Level 3: Advanced MikroTik RouterOS enables flexible configuration for wireless bridging, routing, and network management scenarios.
- Passive PoE Powering: Simplifies outdoor deployment with passive PoE support and low power consumption of approximately 7W.
Ideal Use Cases
- Long distance point to point wireless bridge links
- Wireless ISP subscriber connections (CPE deployments)
- Rural broadband and remote site connectivity
- Outdoor wireless backhaul infrastructure
- Campus or industrial facility building-to-building links
Technical Specifications
- Wireless Standard: 5GHz 802.11a/n (Wi-Fi 4)
- Maximum Wireless Data Rate: 300 Mbps
- Antenna Gain: 27 dBi dual polarization integrated antenna
- Wireless Chains: Dual chain radio
- Ethernet Port: 1x 10/100 Ethernet
- Processor: AR9344 CPU, 600 MHz
- Memory: 64 MB RAM
- Storage: 16 MB Flash
- Power Input: Passive PoE 10–28 V
- Maximum Power Consumption: 7 W
- Operating Temperature: -40C to 70C
- Outdoor Rating: IP54 weather resistant
- Kit Contents: 4x LHG XL HP5 units, PoE injector, power adapter, mounting hardware
Build Reliable Long Distance Wireless Links
The MikroTik RBLHG-5HPnD-XL4pack-US provides powerful long range wireless connectivity for professional outdoor networks. Deploy high gain 5GHz links quickly and efficiently with this scalable four-unit CPE kit. Order today.
