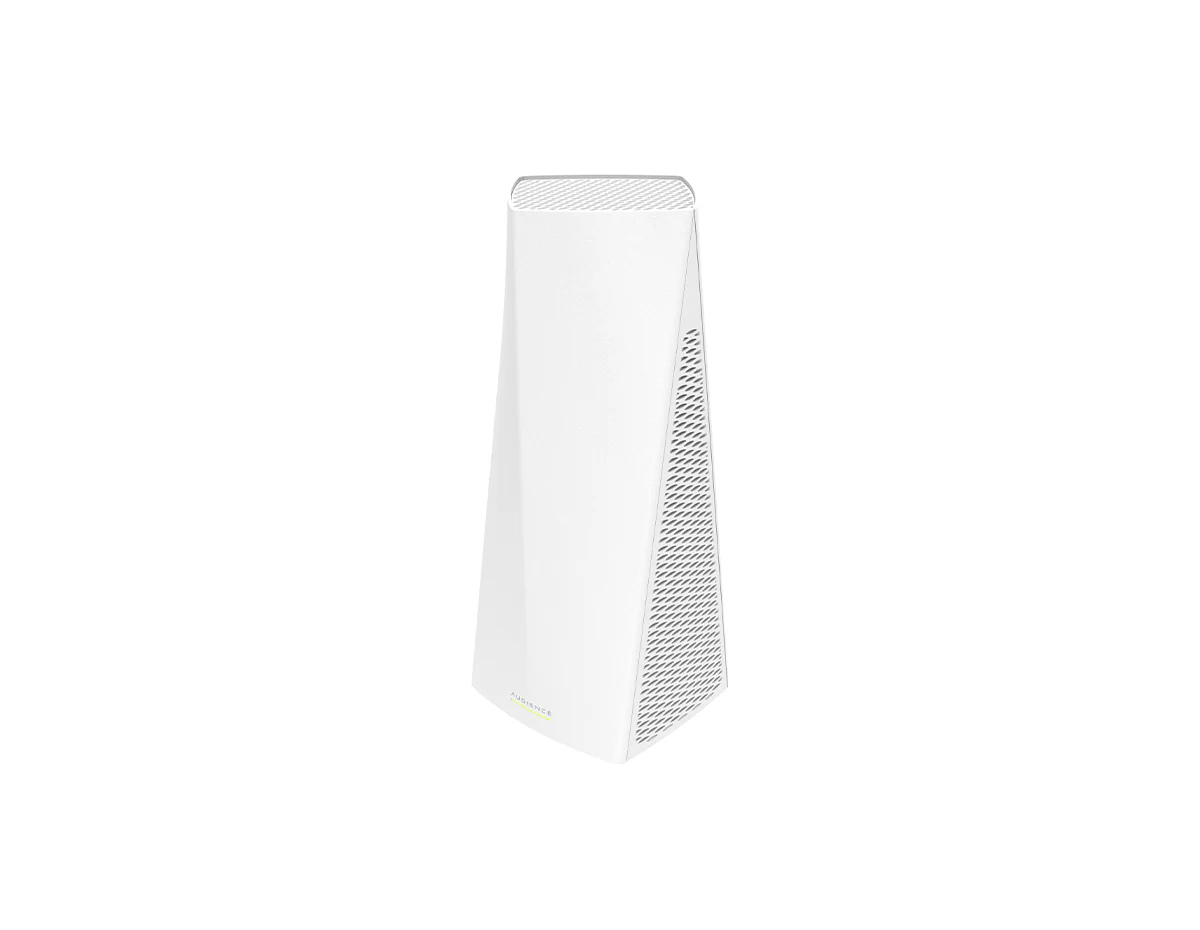

Mikrotik RBD25G-5HPacQD2HPnD-US Access Point
- Tri-band (one 2.4 GHz & two 5 GHz) home access point with meshing technology
[properties]
| Properties | MikroTik Audience RBD25G-5HPACQD2HPND-US |
| Description | Tri-band (one 2.4 GHz & two 5 GHz) home access point with meshing technology |
| Product Family | Audience Series |
| Product Type | Access Point |
| 10/100/1000 Ethernet ports | 2 |
| Number of USB ports | 1 USB type A |
| Dimensions | 100 x 235 x 97 mm |
| Number of DC inputs | 2 (DC jack, PoE-IN) |
| DC jack input Voltage | 12-57 V |
| Max power consumption | 27 W |
| Max power consumption without attachments | 27 W |
| Cooling type | Passive |
| PoE in | Passive PoE |
| PoE in input Voltage | 24-57 V |
[/properties][specifications]
| Wireless 5 GHz Max data rate | 867 Mbit/s |
| Wireless 5 GHz number of chains | 2 |
| Wireless 5 GHz standards | 802.11a/n/ac |
| Antenna gain dBi for 5 GHz | 4.5 |
| Wireless 5 GHz chip model | IPQ-4019 |
| Wireless 5 GHz generation | Wi-Fi 5 |
| Wireless 5 GHz Max data rate | 1733 Mbit/s |
| Wireless 5 GHz number of chains | 4 |
| Wireless 5 GHz standards | 802.11a/n/ac |
| Antenna gain dBi for 5 GHz | 4.5 |
| Wireless 5 GHz chip model | QCA9984 |
| Wireless 5 GHz generation | Wi-Fi 5 |
| Wireless specifications | |
| 2.4 GHz | |
| 1MBit/s | Transmit (dBm): 22 Receive Sensitivity: -96 |
| 11MBit/s | Transmit (dBm): 22 Receive Sensitivity: -89 |
| 6MBit/s | Transmit (dBm): 20 Receive Sensitivity: -93 |
| 54MBit/s | Transmit (dBm): 18 Receive Sensitivity: -74 |
| MCS0 | Transmit (dBm): 20 Receive Sensitivity: -93 |
| MCS7 | Transmit (dBm): 16 Receive Sensitivity: -71 |
| 5 GHz | |
| 6MBit/s | Transmit (dBm): 23 Receive Sensitivity: -93 |
| 54MBit/s | Transmit (dBm): 20 Receive Sensitivity: -75 |
| MCS0 | Transmit (dBm): 23 Receive Sensitivity: -93 |
| MCS7 | Transmit (dBm): 19 Receive Sensitivity: -71 |
| MCS9 | Transmit (dBm): 16 Receive Sensitivity: -63 |
| 6MBit/s | Transmit (dBm): 32 Receive Sensitivity: -96 |
| 54MBit/s | Transmit (dBm): 28 Receive Sensitivity: -80 |
| MCS0 | Transmit (dBm): 32 Receive Sensitivity: -96 |
| MCS7 | Transmit (dBm): 27 Receive Sensitivity: -77 |
| MCS9 | Transmit (dBm): 22 Receive Sensitivity: -70 |
| MTBF | Approximately 100.000 hours at 25C |
| Temperature | -40°C to 60°C tested |
| IPsec hardware acceleration | Yes |
| Certification | CE, FCC, IC, EAC, ROHS |
| IP | IP20 |
[/specifications][accesories]
|
24 V 1.5 A power adapter (white)
|
| Ethernet cable |
[/accesories]
MikroTik RBD25G-5HPacQD2HPnD-US Access Point
The RBD25G-5HPacQD2HPnD-US is a tri-band home access point equipped with meshing technology, featuring one 2.4 GHz and two 5 GHz bands. When requiring Wi-Fi coverage in a large building with various obstacles, additional Audience devices can be seamlessly integrated into the network with a simple button, creating a unified Wi-Fi network to encompass the entire premises. The dual-chain 2.4 GHz and 5 GHz wireless coverage effectively addresses interference challenges in densely populated environments. Household mobile devices can use the 2.4 GHz channel, while the 5 GHz channel can be reserved for PC or TV usage.
Quick Specs:
- 2x 10/100/1000 Ethernet ports
- IPQ-4019, 4 core, 716 MHz CPU
- 256 MB RAM
- PoE in: Passive PoE
Please see the related tabs for the RBD25G-5HPacQD2HPnD-US datasheet and compatible accessories.
